Ford Truck
>>
2000
>>
F 150 2WD Pickup V8-5.4L Prop SOHC VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
General Module
>>

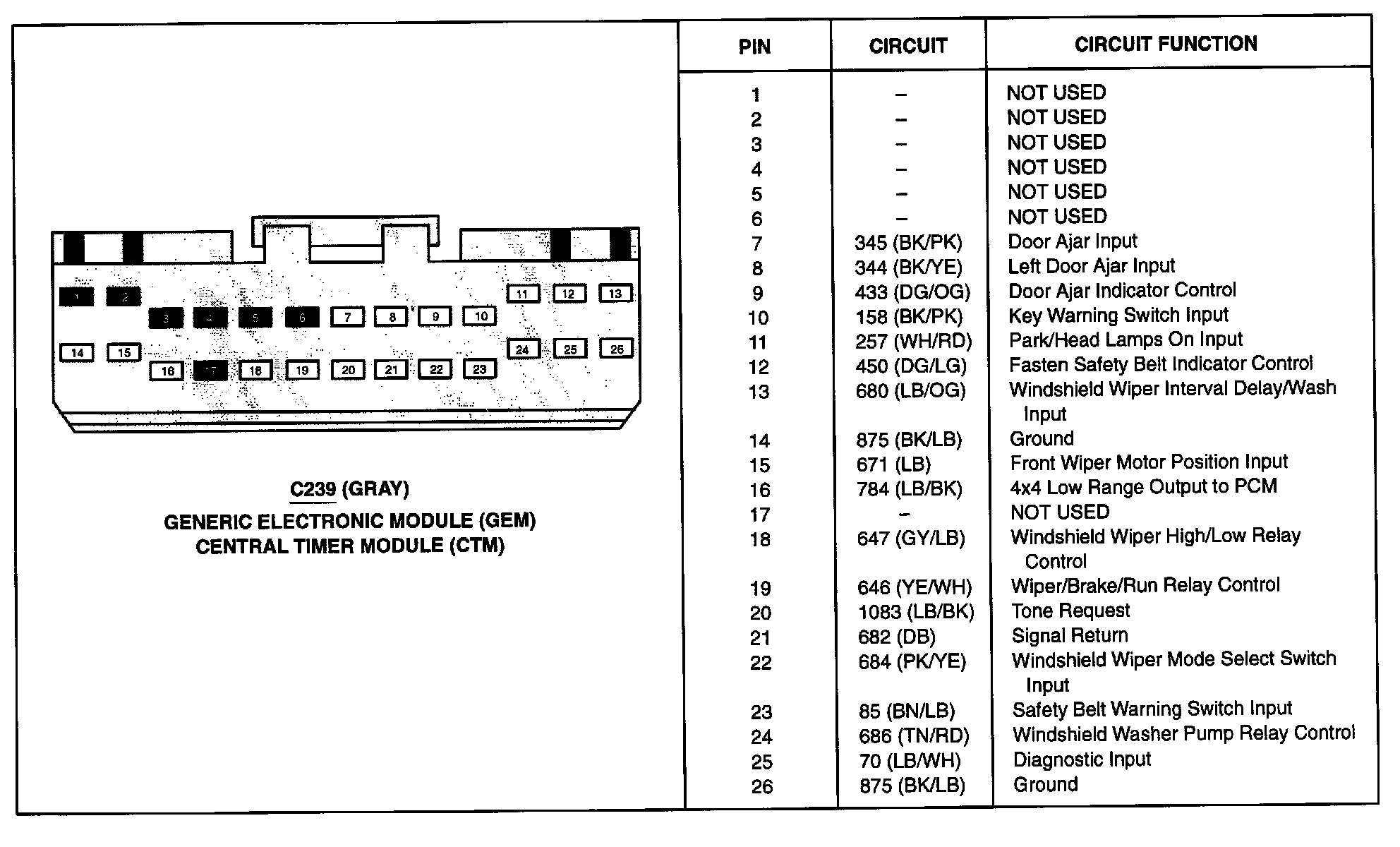

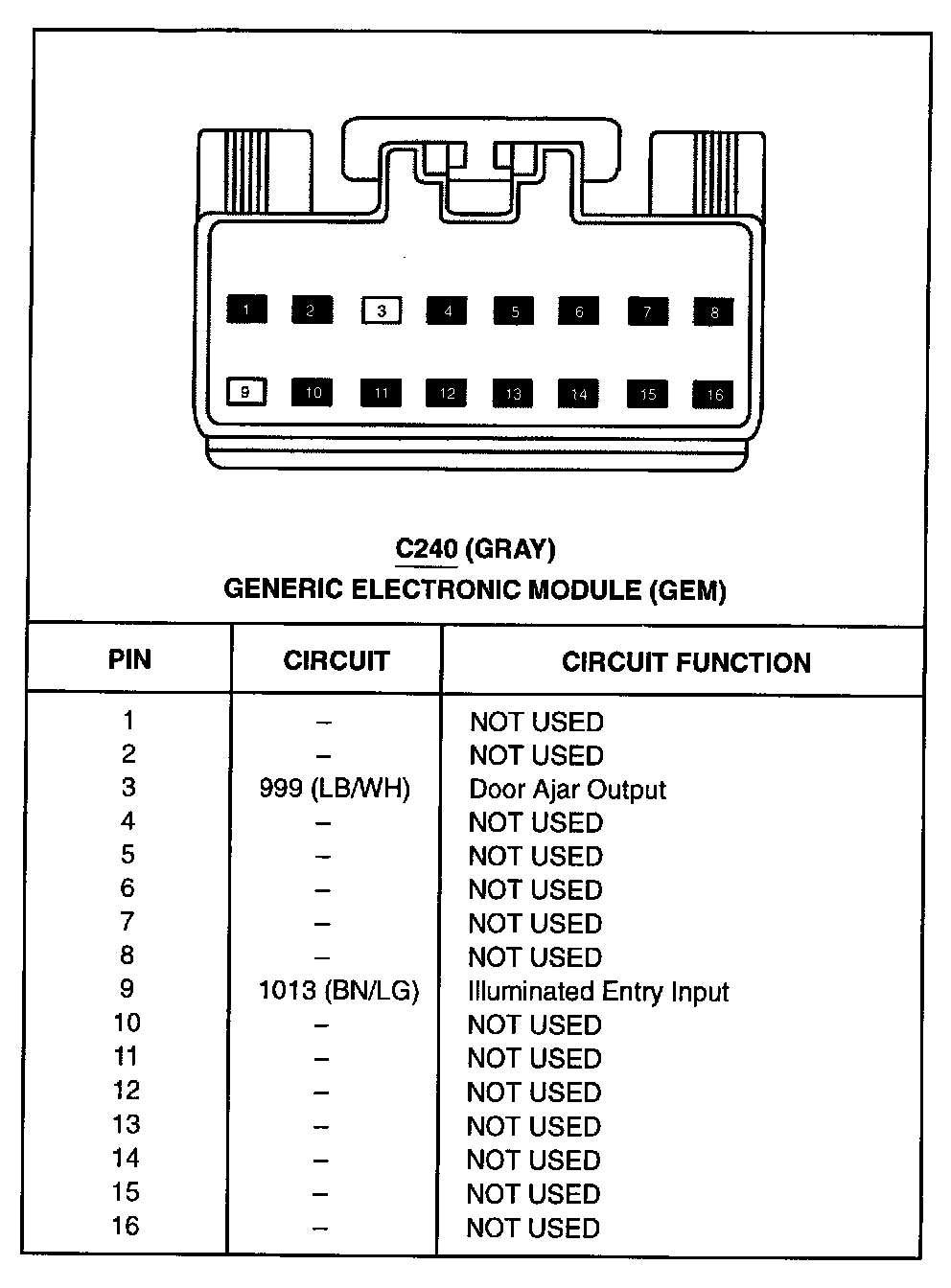

Generic Electronic Module/Centeral Timer Module
Generic Electronic Module/Centeral Timer Module
