Wiper Motor: Service and Repair

REMOVAL

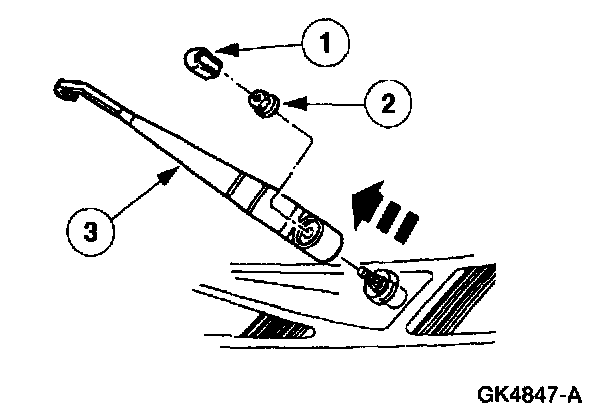

1. Remove the windshield wiper pivot arm.
1 Remove the pivot arm nut cover.
2 Remove the nut.
3 Remove the windshield wiper pivot arm.

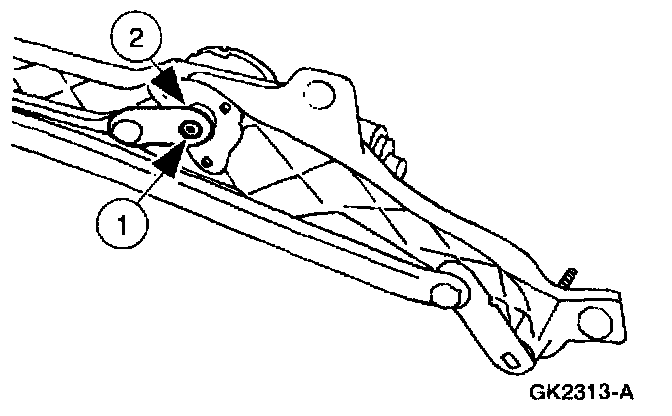

2. Disconnect the windshield wiper linkage.
1 Remove the bolt.
2 Disconnect the windshield wiper linkage.

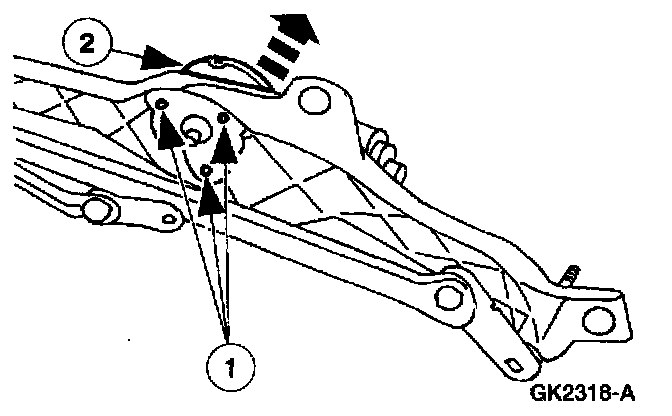

3. Remove the windshield wiper motor.
1 Remove the bolts.
2 Remove the windshield wiper motor.

INSTALLATION

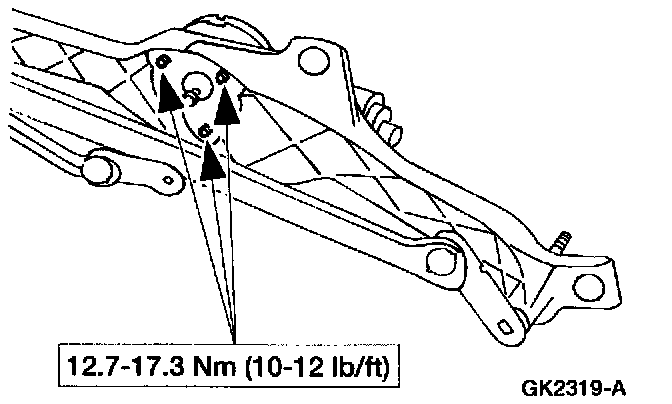

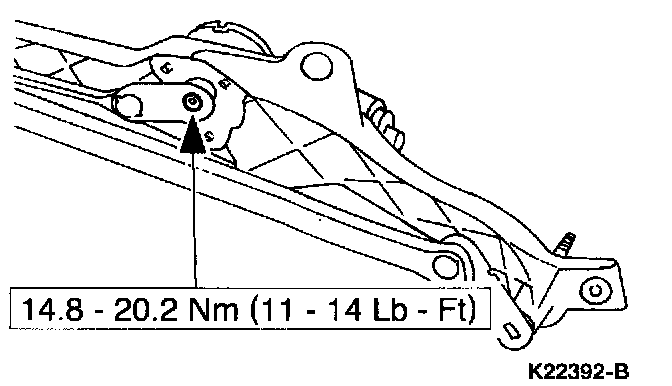

1. To install, reverse the removal procedure.
