Wiper Arm: Service and Repair

REMOVAL

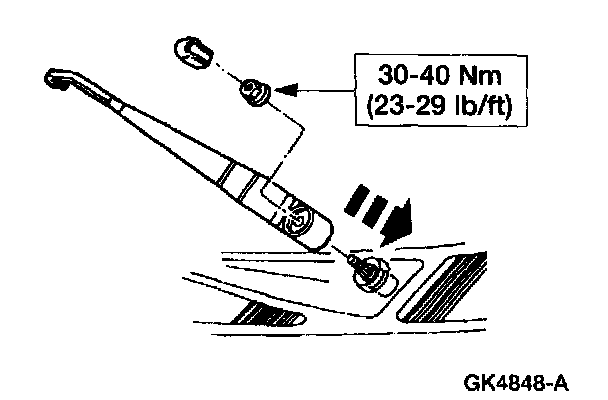

1. Remove the windshield wiper pivot arm.
1 Remove the pivot arm nut cover.
2 Remove the nut.
3 Remove the windshield wiper pivot arm.

INSTALLATION







1. To install, reverse the removal procedure.
^ Adjust the windshield wiper pivot arms. Adjustments
