Windshield Washer Pump: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

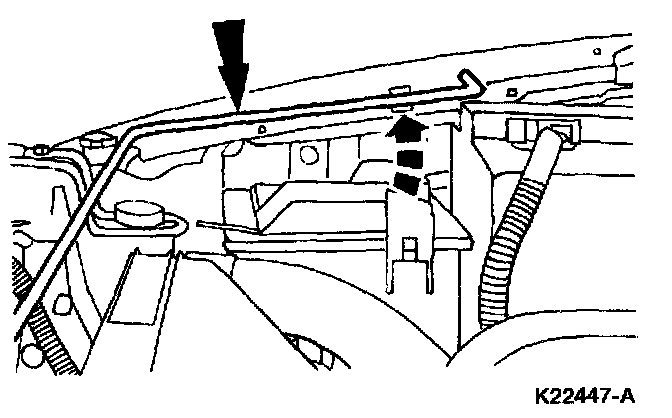

2. Disconnect the jack handle from the windshield washer reservoir.

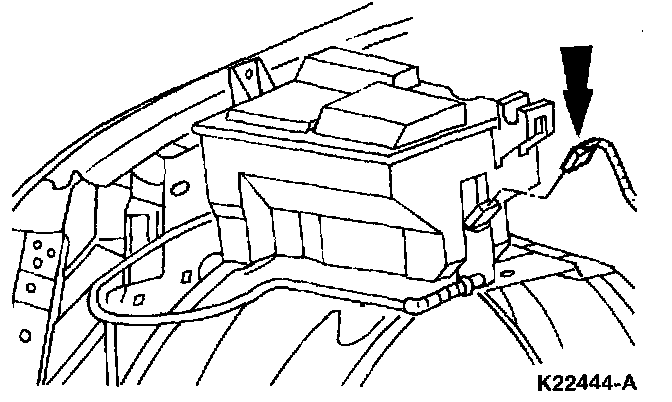

3. Disconnect the windshield washer pump electrical connector.

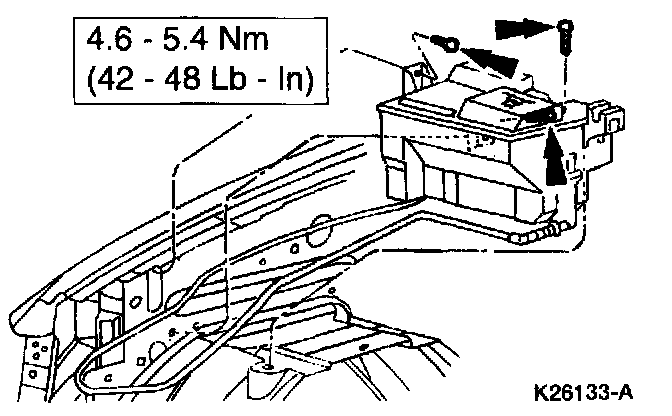

4. Remove the windshield washer reservoir screws.

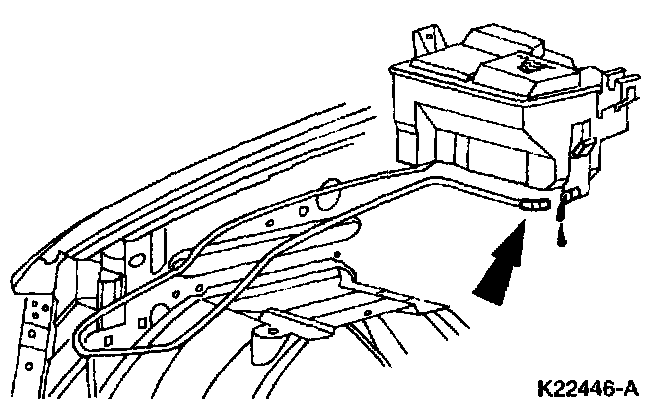

5. Disconnect the windshield washer hose.

NOTE: Windshield washer fluid should be collected in a container after the windshield washer hose is disconnected.

6. Remove the windshield washer reservoir.

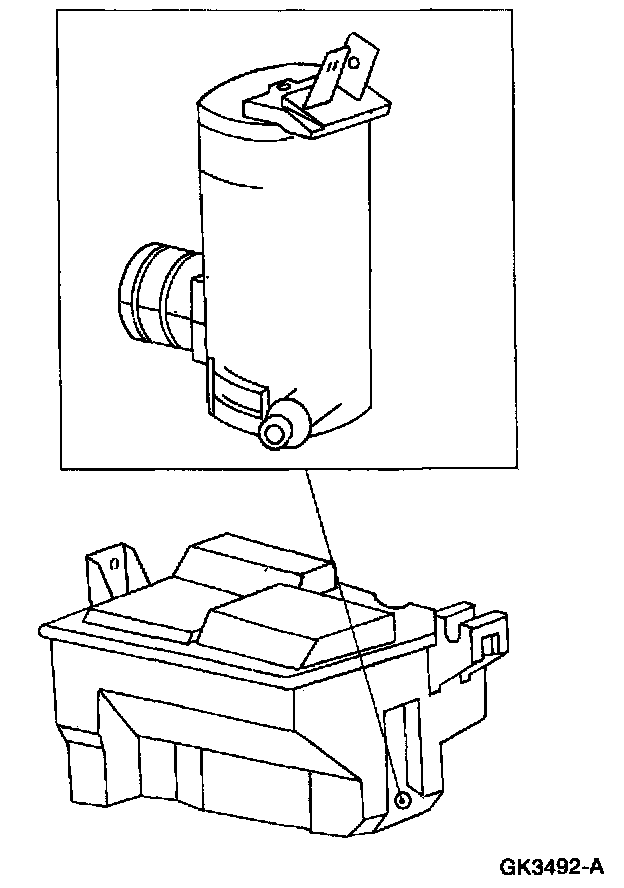

7. Remove the windshield washer pump.

INSTALLATION







1. To install, reverse the removal procedure.
^ Fill the windshield washer reservoir with ultra-clear windshield washer concentrate C9AZ-19550-AC or BC or equivalent meeting Ford specification ESR-M17P5-A.

CAUTION: Do not make electrical connection prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
