Pilot Bearing: Service and Repair

Special Tools:

Removal





1. Note: If damaged, install a new transmission input shaft pilot bearing.

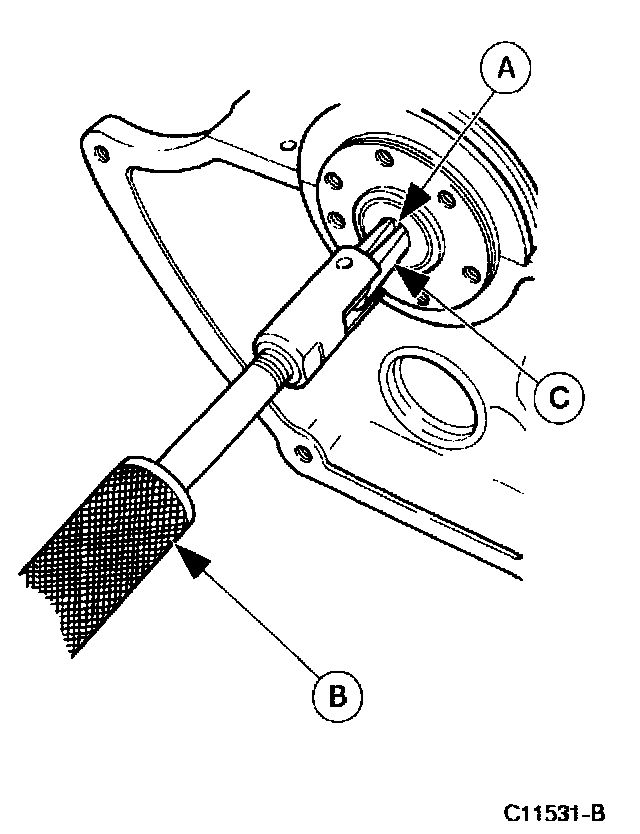

Using (B) Impact Slide Hammer and (C) Puller and remove the (A) transmission input shaft pilot bearing.

Installation





1. Note: The transmission input shaft pilot bearing can only be installed with the seal facing the transmission. The transmission input shaft pilot bearing is pregreased and does not require additional lubrication. A new transmission input shaft pilot bearing must be installed whenever it is removed.

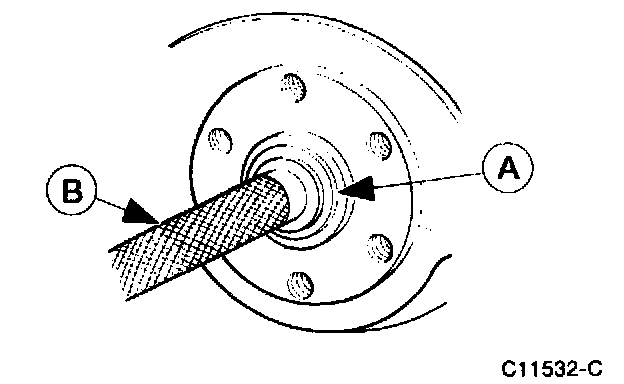

Using the (B) Pilot Bearing Replacer, install the (A) transmission input shaft pilot bearing.
