Transmission Cooler: Service and Repair

Removal





1. Remove the front skid plate.
1 Remove the bolts.
2 Remove the front skid plate.
2. Place a drain pan under the auxiliary transmission fluid cooler.

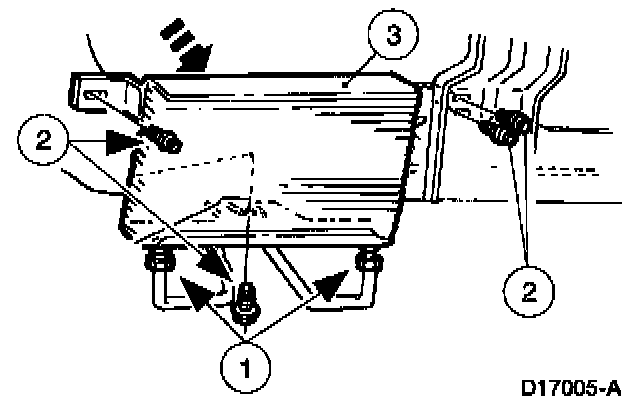

3. Remove the auxiliary transmission fluid cooler.
1 Disconnect the two auxiliary transmission fluid cooler tubes.
2 Remove the bolts.
3 Remove the auxiliary transmission fluid cooler.

Installation








1. Follow the removal procedure in reverse order.
