Shift Cable: Service and Repair

Removal

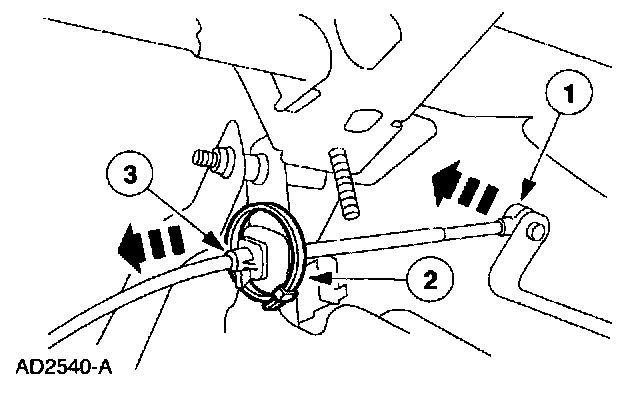

1. Disconnect the transmission shift cable from the steering column.
1 Disconnect the transmission shift cable from the steering column shift tube lever.
2 Remove the cable push pin.
3 Unlock and remove the transmission shift cable from the steering column bracket.
2. Push the rubber grommet and transmission shift cable through the bulkhead.
3. Raise and support the vehicle.

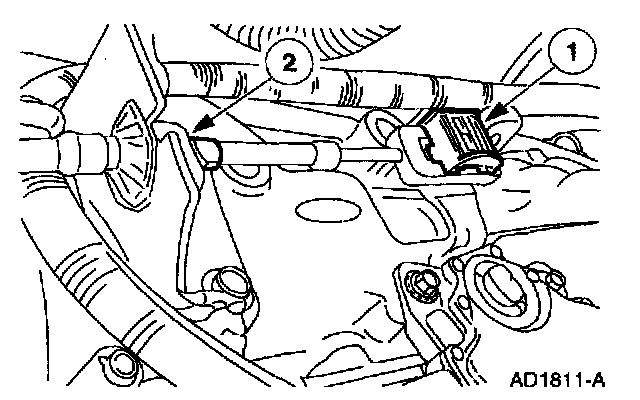

4. Remove the transmission shift cable from the transmission.
1 Disconnect the transmission shift cable from the manual control lever.
2 Depress the lock tabs to release the transmission shift cable and disconnect the transmission shift cable from the transmission shift cable bracket.

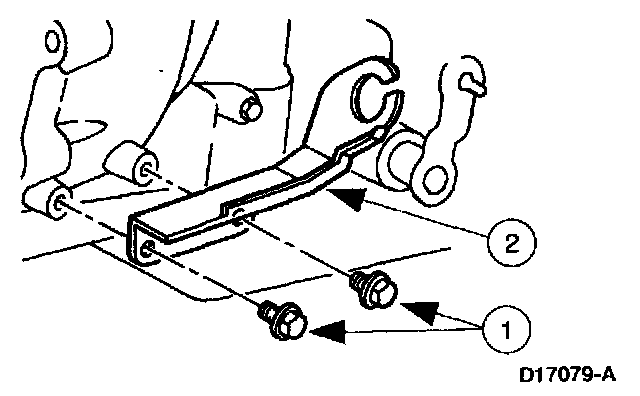

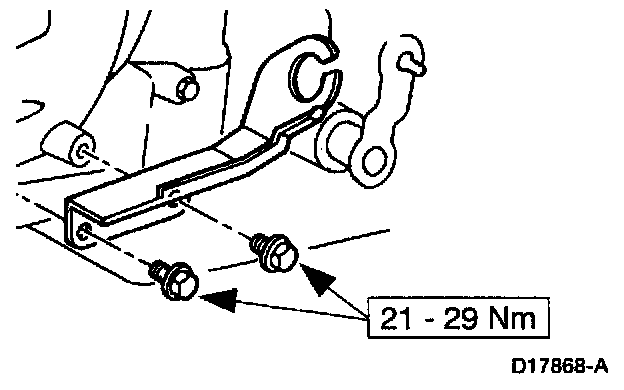

5. 4.6L with 4R70W Transmission-Remove the shift cable bracket from the transmission.
1 Remove the bolts.
2 Remove the bracket.





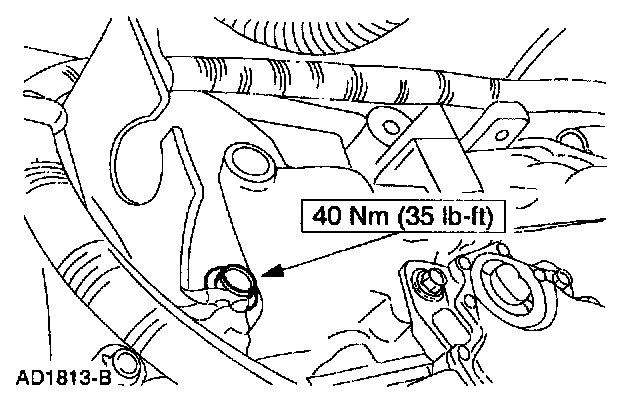

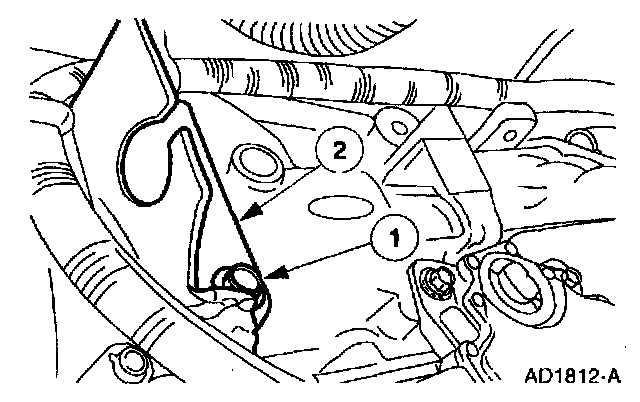

6. 5.4L with 4R100 Transmission-Remove the shift cable bracket from the transmission.
1 Remove the bolts.
2 Remove the shift cable bracket.

Installation








1. Follow the removal procedure in reverse order.
- Prior to installing the shift cable, verify the digital TR sensor adjustment.
- Adjust the shift cable.
