Steering Column Sensor Ring

Removal

CAUTION: The steering column must be in the locked position, or the lower end of the column wired in such a way that the steering column does not rotate, resulting in damage to the air bag sliding contact.

Note: Discard the upper intermediate shaft to steering column shaft bolt upon removal. Do not reuse; replace with new bolts.

1. Remove the bolt retaining the upper shaft assembly U-joint to the steering column center shaft.

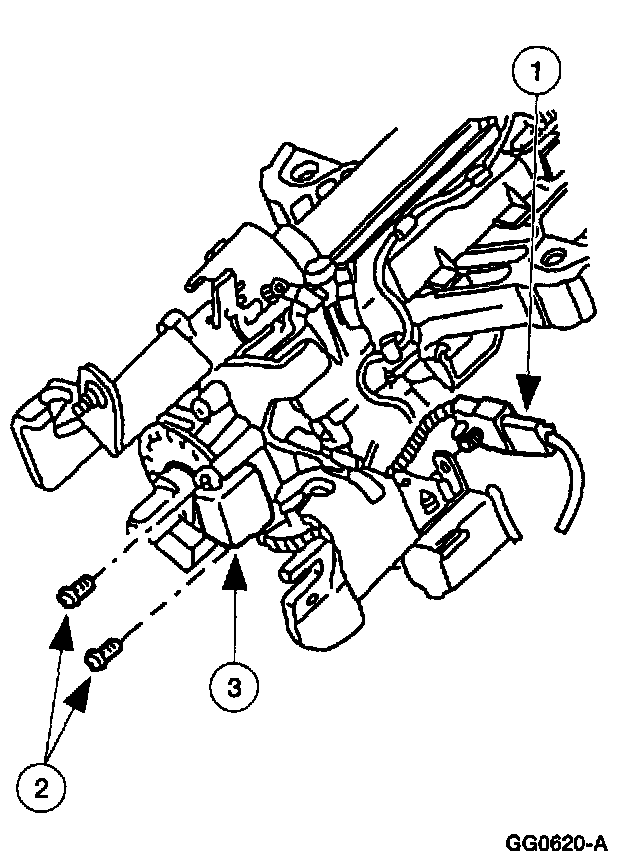

2. Remove the shock absorber electronic steering sensor.
1 Disconnect the electrical connector.
2 Remove the screws.
3 Remove the shock absorber electronic steering sensor.

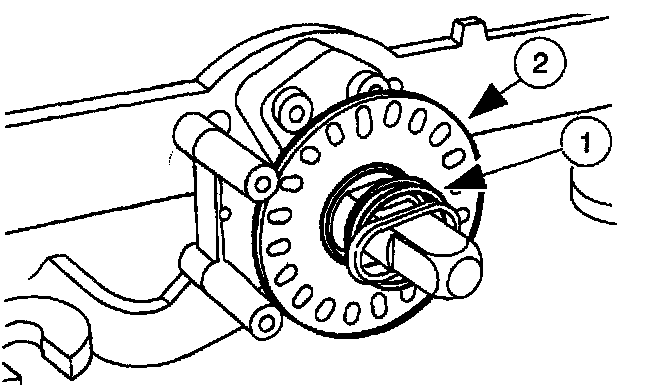

3. Remove the sensor ring.
1 Remove the steering column lower bearing spring.
2 Remove the sensor ring.


Installation
1. Follow the removal procedure in reverse order.

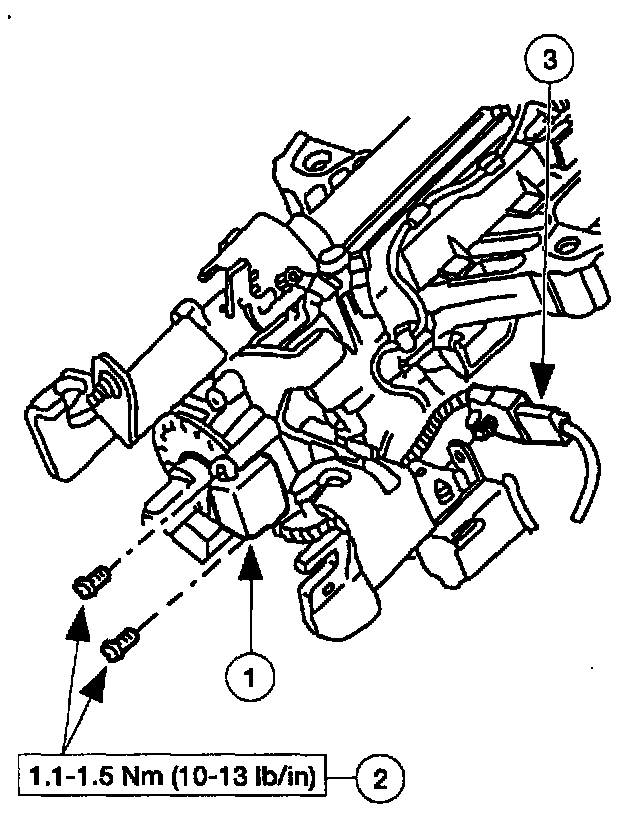

2. Install the shock absorber electronic steering sensor.
1 Position the shock absorber electronic steering sensor.
2 Install the screws.
3 Connect the electrical connector.
