Center Link: Service and Repair

Removal
1. Raise and support the vehicle.

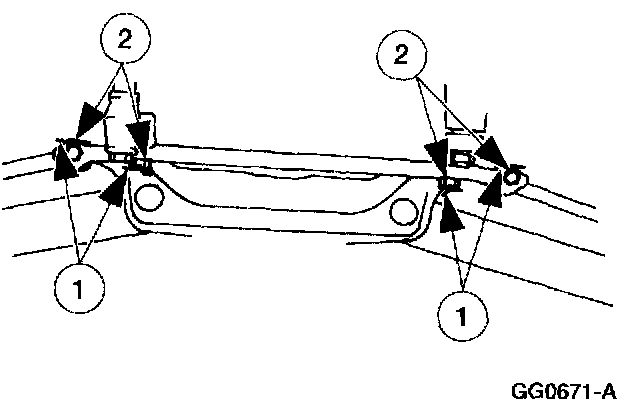

2. Remove the steering sector shaft arm drag link castellated nuts.
1 Remove the cotter pins.
2 Remove the castellated nuts.
3. Remove the two inner tie rods from the steering sector shaft arm drag link.

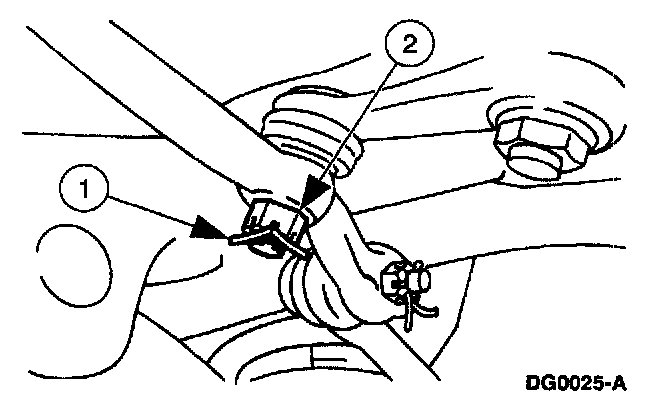

4. Remove the steering sector shaft arm drag link castellated nut.
1 Remove the cotter pin.
2 Remove the nut.

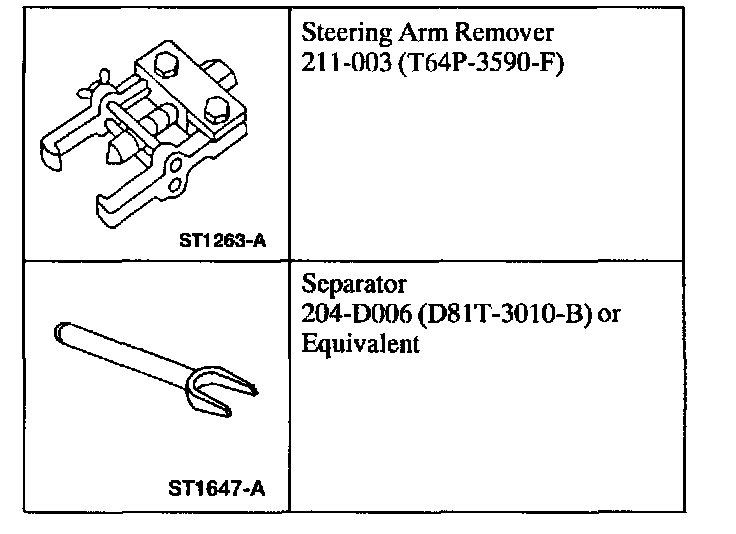

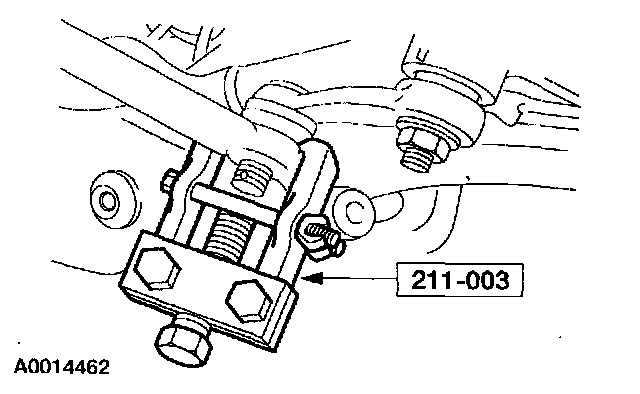

5. Using the special tool, separate the steering sector shaft arm drag link.

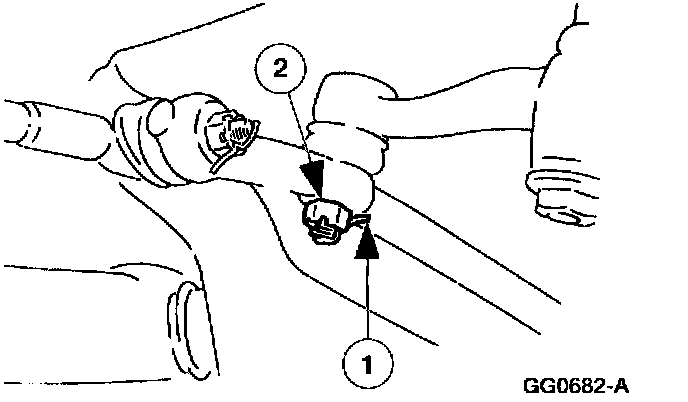

6. Remove the steering sector shaft arm drag link castellated nut.
1 Remove the cotter pin.
2 Remove the nut.





7. Using the special tool, separate the steering sector shaft arm drag link.

Installation

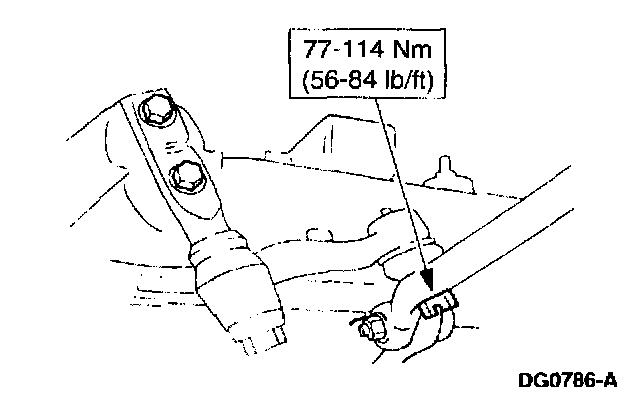

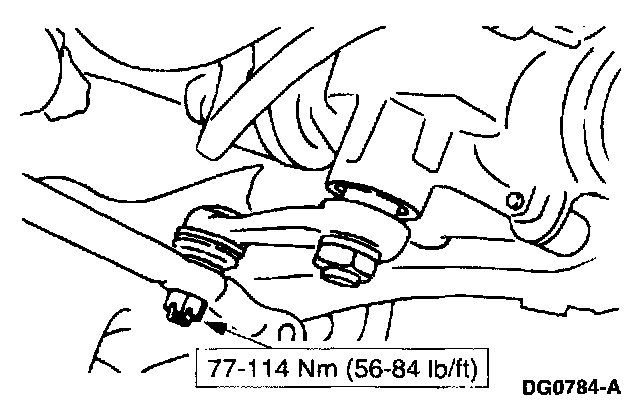

1. Follow the removal procedure in reverse order.
2. Lower the vehicle.
