Pedal

REMOVAL







1. Disconnect the accelerator cable from the accelerator pedal and shaft.

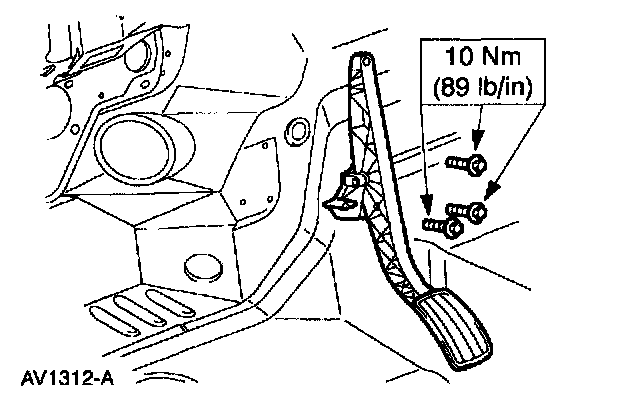

2. Remove the bolts and remove the accelerator pedal.

INSTALLATION
1. Follow the removal procedure in reverse order.
