Canister Vent Solenoid

REMOVAL
1. Remove the Evaporative Emission (EVAP) canister. For additional information, refer to Evaporative Emission Canister.

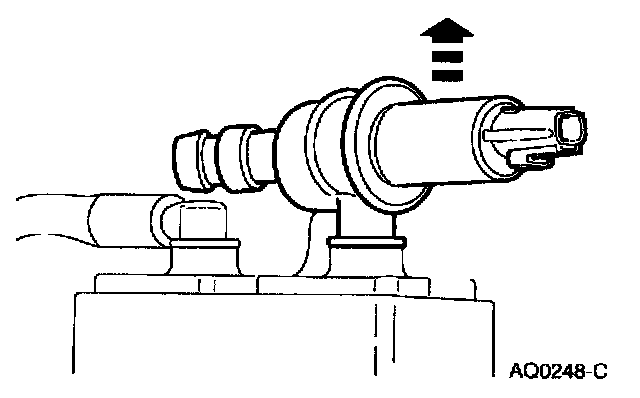

2. Remove the canister vent solenoid.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carry out the Leak Test. For additional information, refer to Evaporative Emission System Leak Test. Component Tests and General Diagnostics
^ Carry out the evaporative emission repair verification drive cycle. For additional information, refer to Evaporative Emission Repair Verification Drive Cycle. Service and Repair

NOTE: Lubricate the O-ring seal with MERPOL(R) O-Ring Seal Lubricant or equivalent meeting Ford specification ESE-M99B144B.
