Canister Purge Control Valve: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

WARNING: THE EVAPORATIVE EMISSIONS SYSTEM CONTAINS FUEL VAPOR AND CONDENSED FUEL VAPOR. ALTHOUGH NOT PRESENT IN LARGE QUANTITIES, IT STILL PRESENTS THE DANGER OF EXPLOSION OR FIRE. DISCONNECT THE BATTERY GROUND CABLE FROM THE BATTERY TO MINIMIZE THE POSSIBILITY OF AN ELECTRICAL SPARK OCCURRING, POSSIBLY CAUSING A FIRE OR EXPLOSION IF FUEL VAPOR OR LIQUID FUEL ARE PRESENT IN THE AREA. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

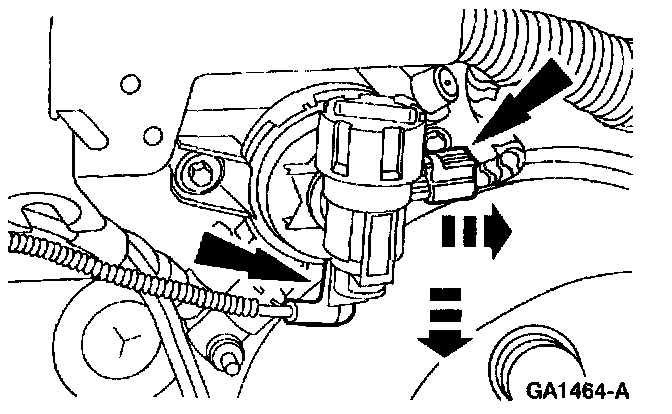

2. Disconnect the electrical connector from the Evaporative Emission (EVAP) canister purge valve and the evaporative emissions vacuum control hose.







3. Disconnect the two fuel vapor tubes.
1 Disconnect the EVAP canister purge outlet tube.
2 Disconnect the EVAP return tube.

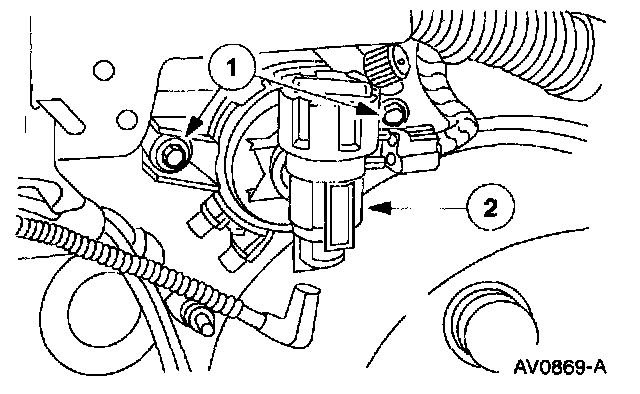

4. Remove the EVAP canister purge valve.
1 Remove the bolts.
2 Remove the EVAP canister purge valve.

INSTALLATION

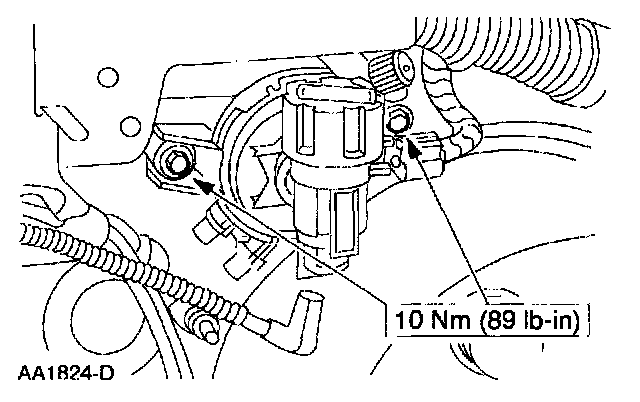

1. To install, reverse the removal procedure.
^ Leak test the system. For additional information, refer to Evaporative Emission System Leak Test. Component Tests and General Diagnostics
^ Carry out the evaporative emission repair verification drive cycle. For additional information refer to Evaporative Emission Repair Verification Drive Cycle. Service and Repair
