Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL

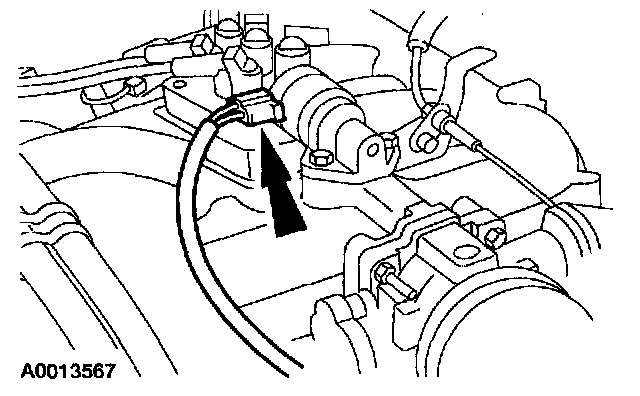

1. Disconnect the Idle Air Control (IAC) valve electrical connector.







2. Remove the two bolts and the IAC valve.

INSTALLATION
1. To install, reverse the removal procedure.
