Hose/Line HVAC: Service and Repair

REMOVAL
1. Perform the Discharging and Recovery Procedure. Refer to: Heating and Air Conditioning, Service and Repair, Refrigerant Discharging and Recovery Procedure, Refrigerant Discharging and Recovery procedure

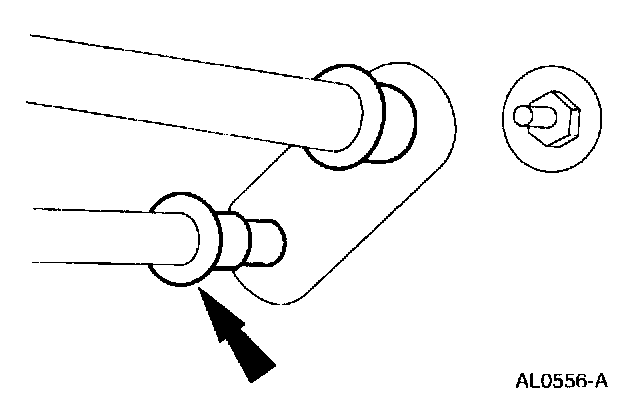

2. Disconnect the condenser to evaporator line spring lock coupling from the A/C evaporator core.

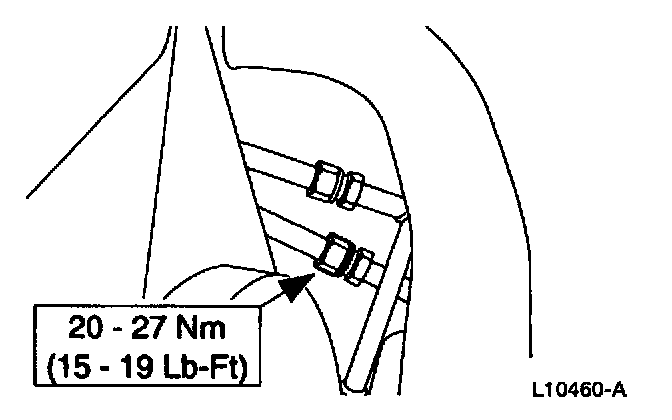

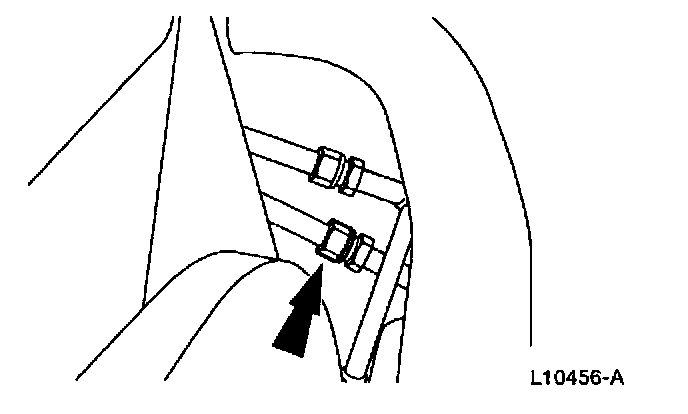

3. Disconnect the condenser lower fitting.

NOTE: Use a backup wrench to hold the line during disconnection to prevent damage to the condenser to evaporator line.

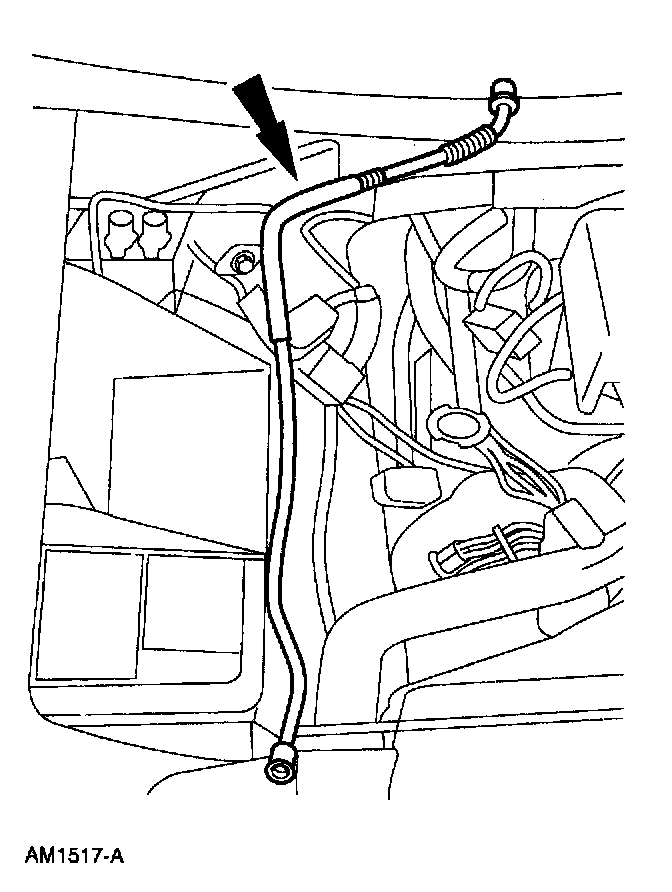

4. Remove the condenser to evaporator line.

INSTALLATION







1. Follow the removal procedure in reverse order.
