Heater Hose Assembly

REMOVAL
1. Drain the cooling system. For additional information, refer to Cooling System.







2. Disconnect the heater outlet hose at the engine.

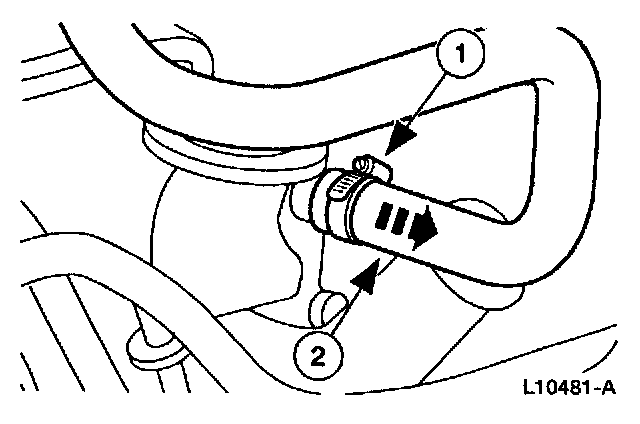

3. Disconnect the heater inlet hose at the engine.
1 Loosen the hose damp.
2 Disconnect the heater inlet hose.

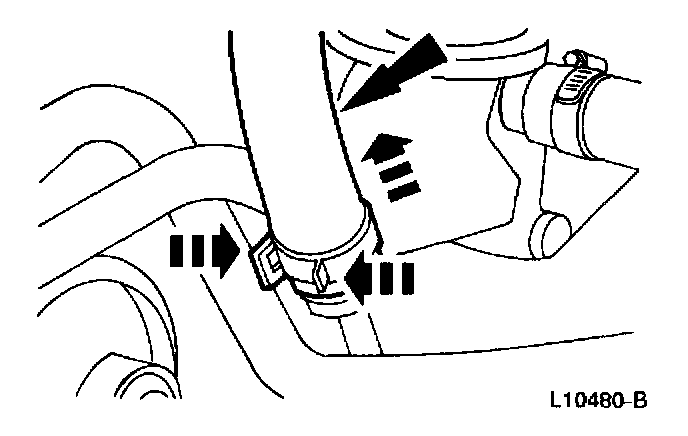

4. Compress the holding tabs and disconnect the heater water hoses at the heater core.

INSTALLATION
1. To install, reverse the removal procedure.
