Defrost Nozzles and Side Demister

REMOVAL
1. Remove the plenum chamber. For additional information, refer to Plenum Chamber.

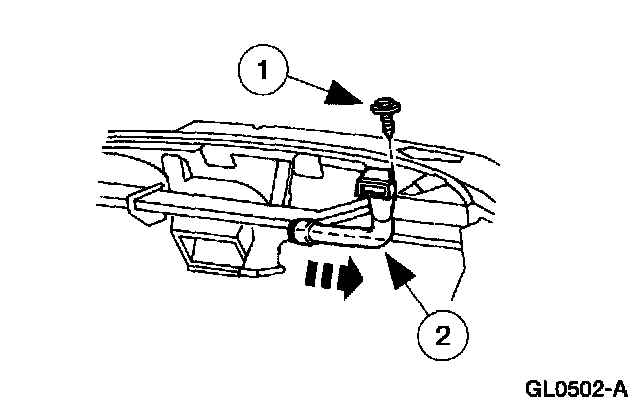

2. Remove the A/C plenum demister adapter
1 Remove the screw.
2 Remove the A/C plenum demister adapter.

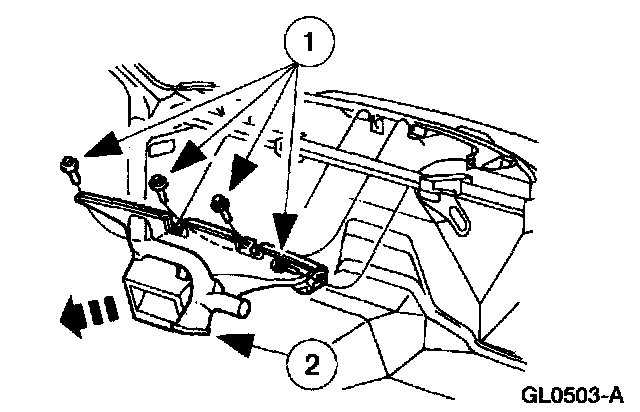

3. Remove the demister nozzle and duct.
1 Remove the screws.
2 Remove the demister nozzle and duct.

INSTALLATION












1. To install, reverse the removal procedure.
