Floor Duct

REMOVAL

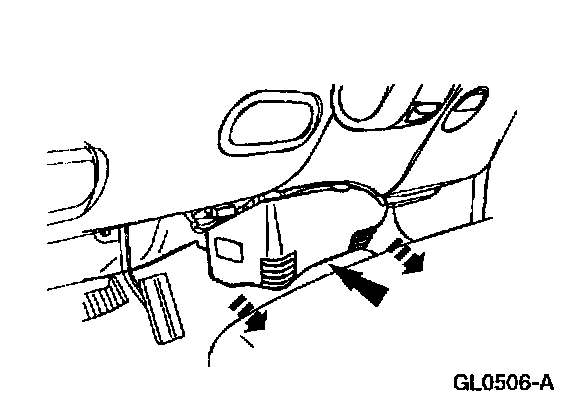

1. Remove the floor duct panel.
^ Remove the two plastic pushpins (one on each side) and release the expander clip.







2. Remove the RH instrument panel brace.
1 Remove the nut.
2 Remove the bolt.
3 Remove the brace.

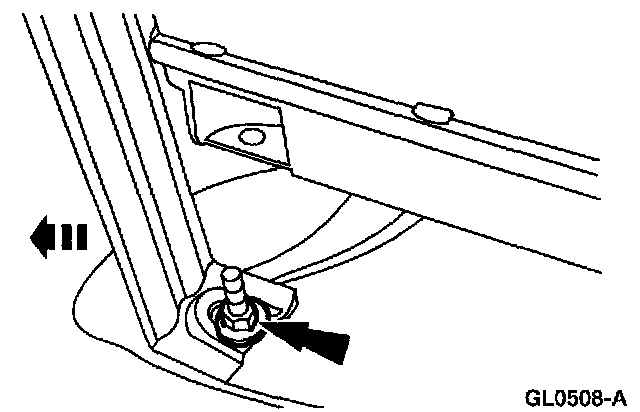

3. Remove the LH instrument panel lower nut and position the brace aside.

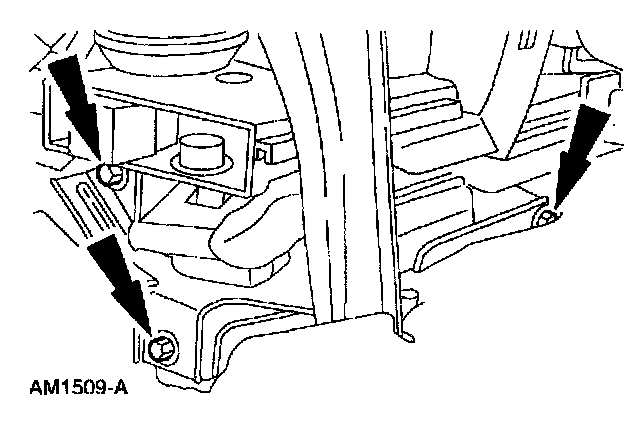

4. Remove the restraint module bolts and position them aside.

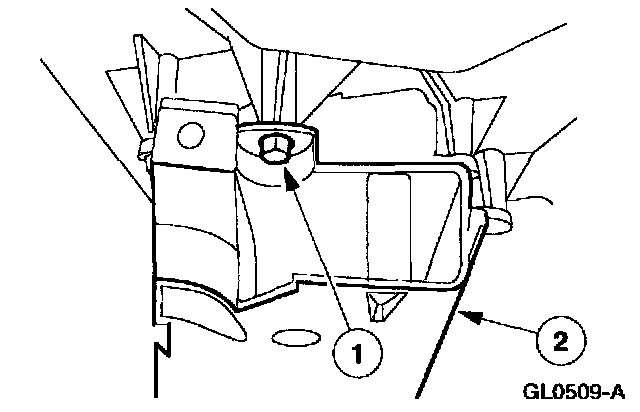

5. Remove the floor duct.
1 Remove the two screws.
2 Remove the floor duct.

INSTALLATION
1. To install, reverse the removal procedure.
