Oil Pan, Engine

Removal and Installation

1. Remove the engine.





2. Remove the oil level indicator tube.
1. Remove the bolt.
2. Remove the oil level indicator tube.
3. Remove and discard the oil level indicator tube O-ring seal.

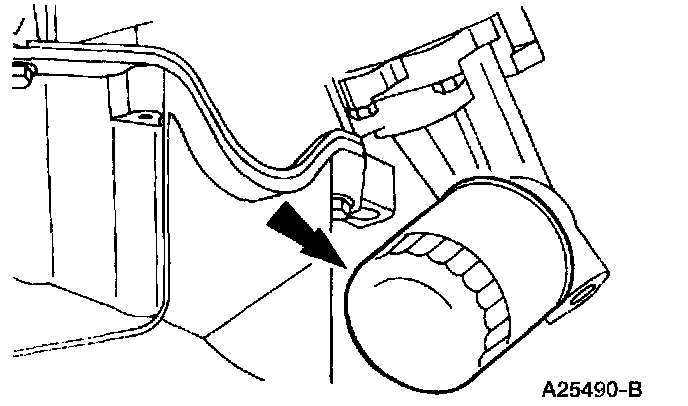

3. Remove the oil bypass filter.





4. Remove the oil pan.

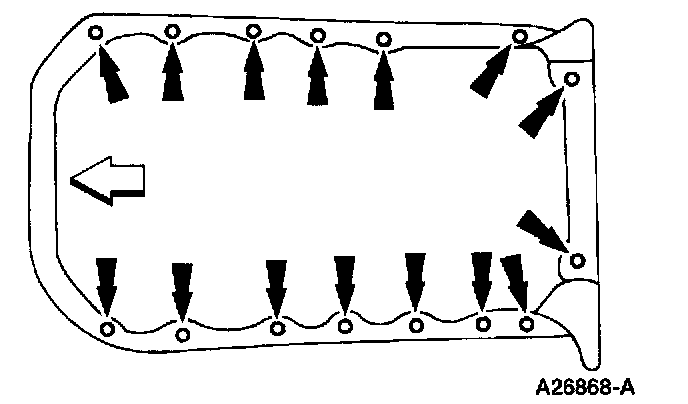

- Remove the bolts.

Note: If the oil pan is not installed within four minutes, remove the sealer and reapply.

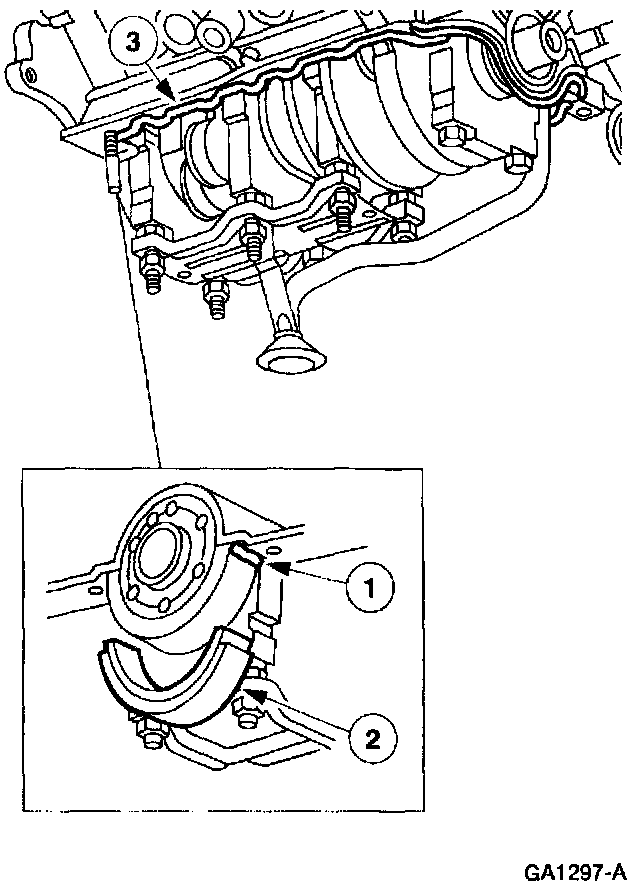

5. Clean and apply the sealant to the oil pan sealing areas indicated and install the oil pan rear seal.
1. Apply the sealer to the rear main bearing cap.
2. Install the oil pan rear seal.
3. Apply the sealer to the oil pan mating surface.
- Use metal surface cleaner.
- Use Silicone gasket and sealant.





6. Install the oil pan.

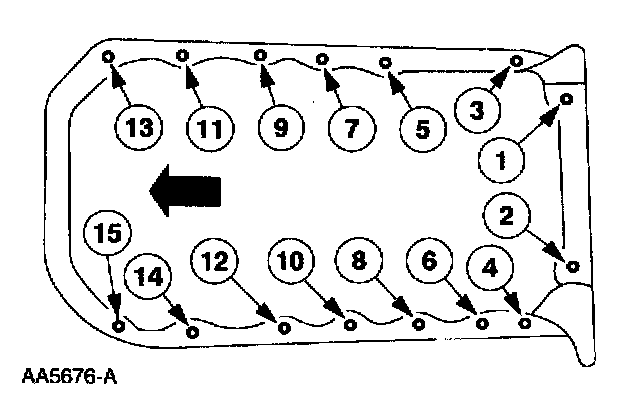

- Tighten the bolts in the sequences shown in two stages:
- Stage 1: Tighten the bolts to 5 Nm (44 lb-in).
- Stage 2: Tighten the bolts to 10 Nm (89 lb-in).





7. Install the oil bypass filter.





Note: Install a new O-ring seal.

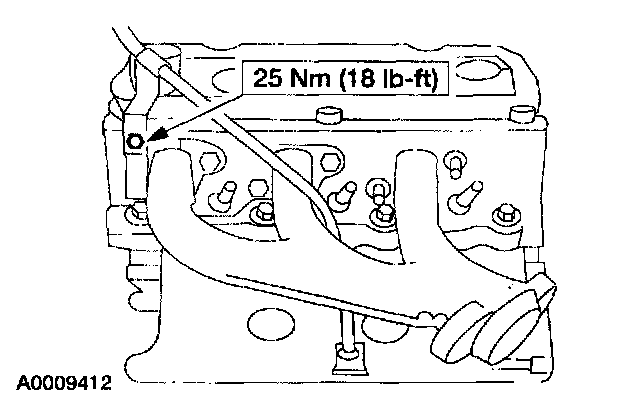

8. Install the oil level indicator and tube.
- Install the bolt.

9. Install the engine.
