Engine: Diagrams

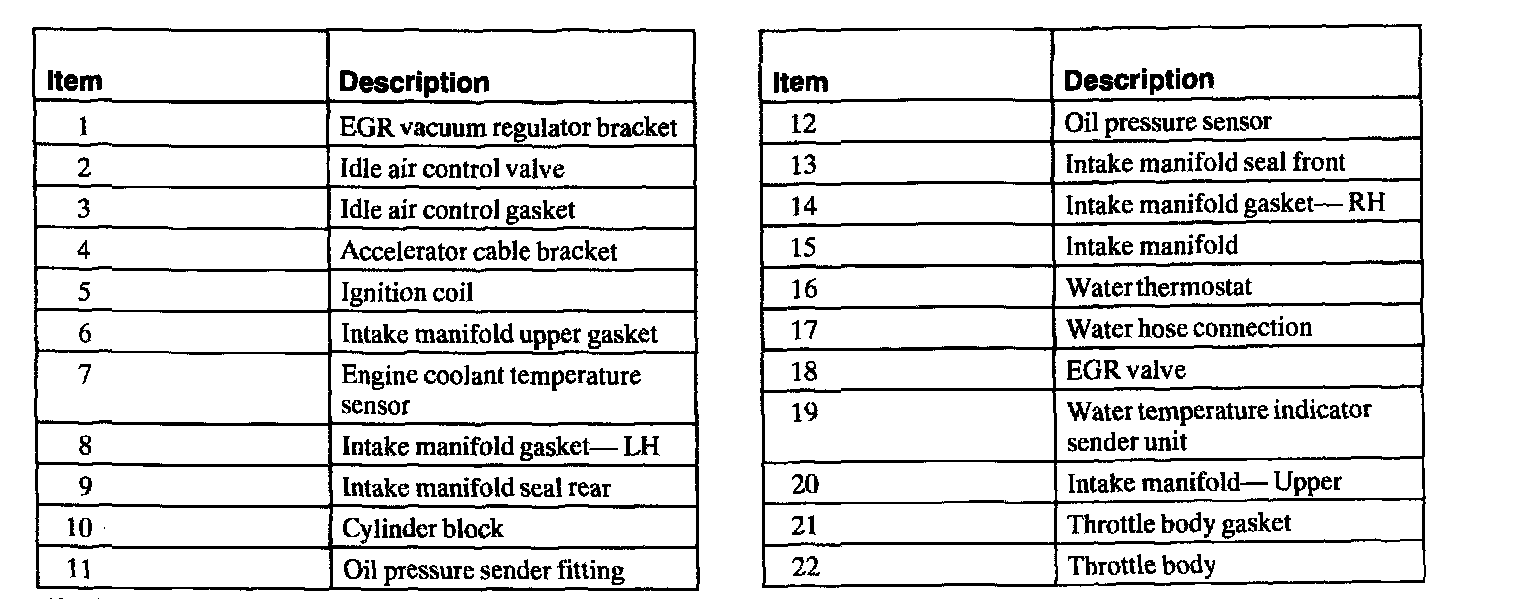

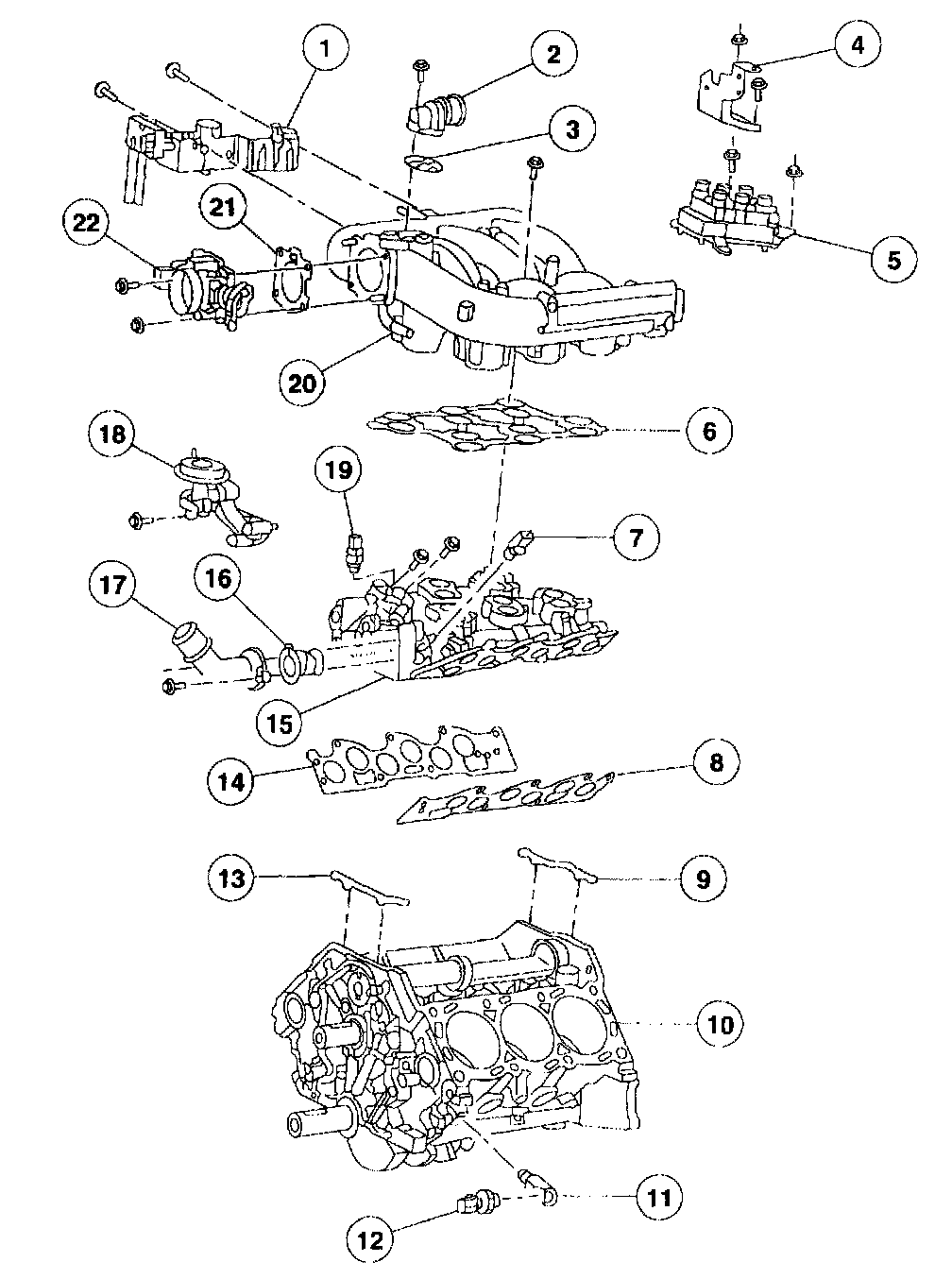

Major Upper Engine Components

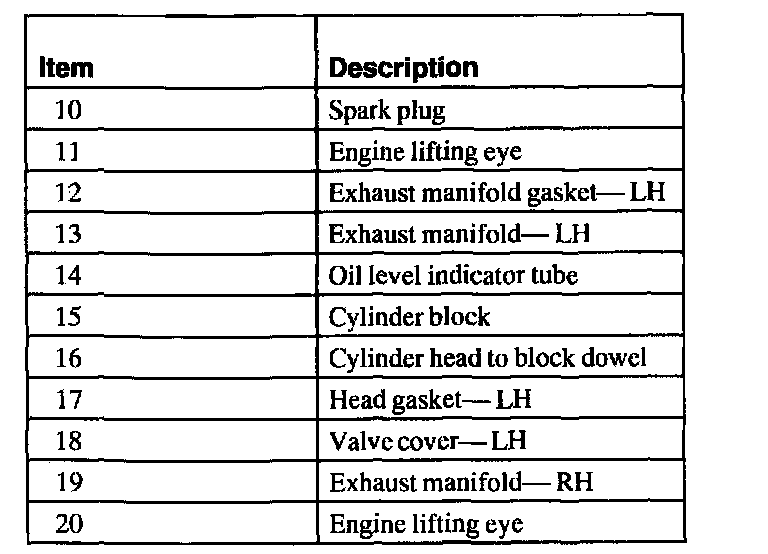

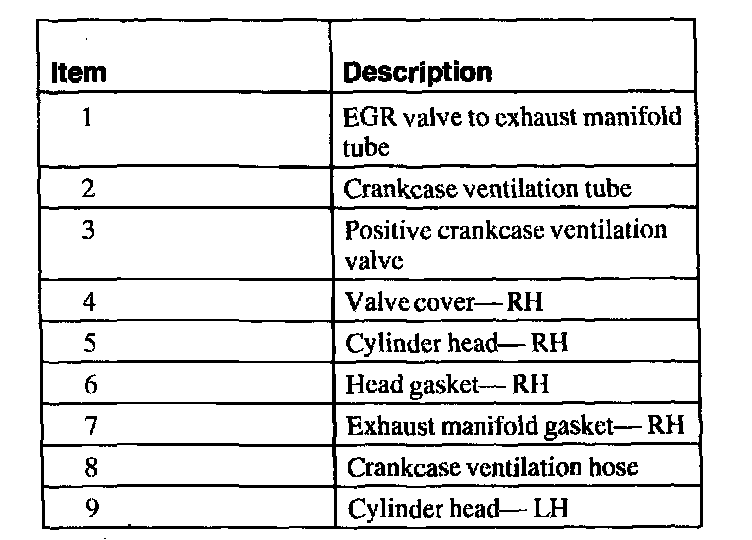

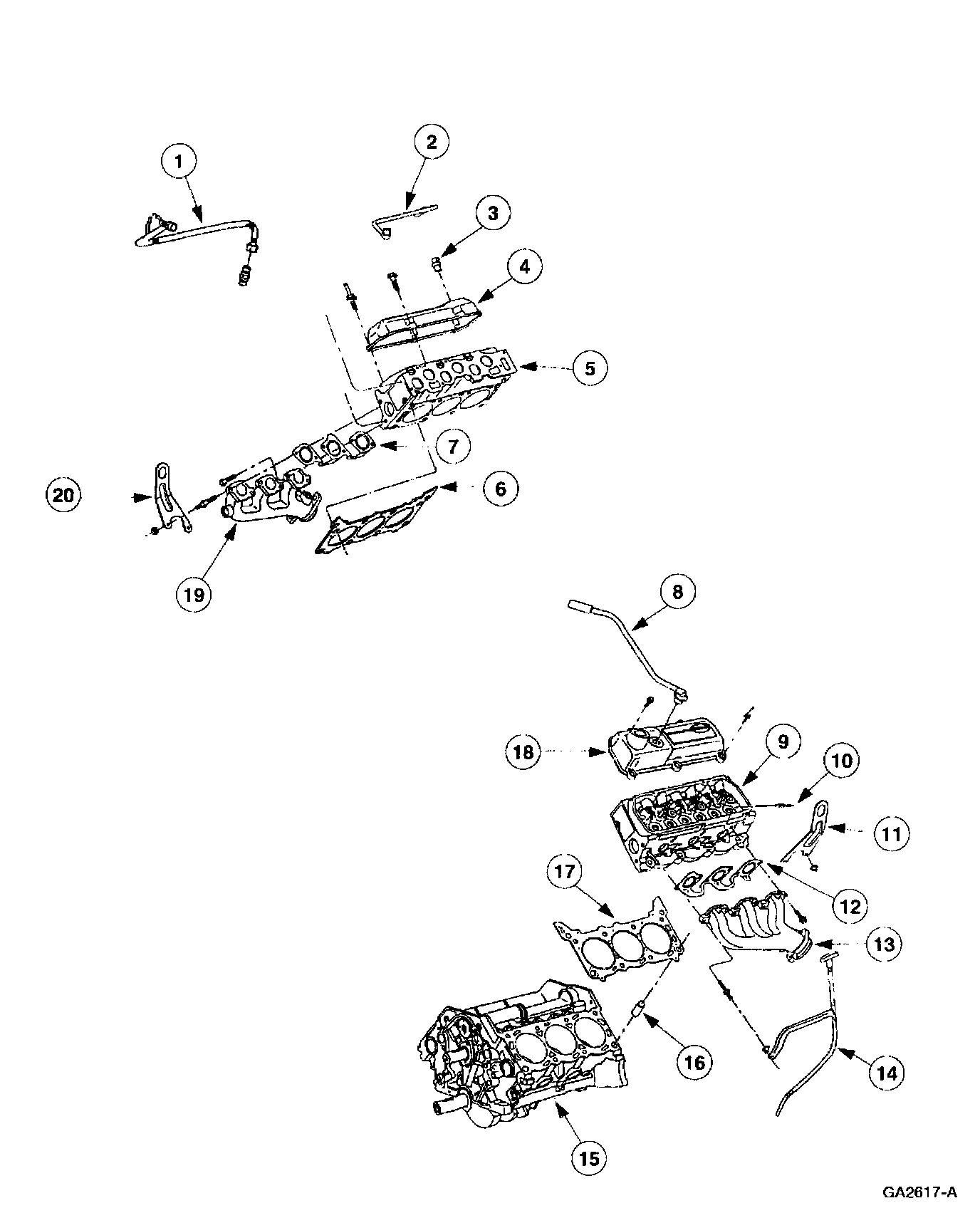

Cylinder Heads and Valve Train

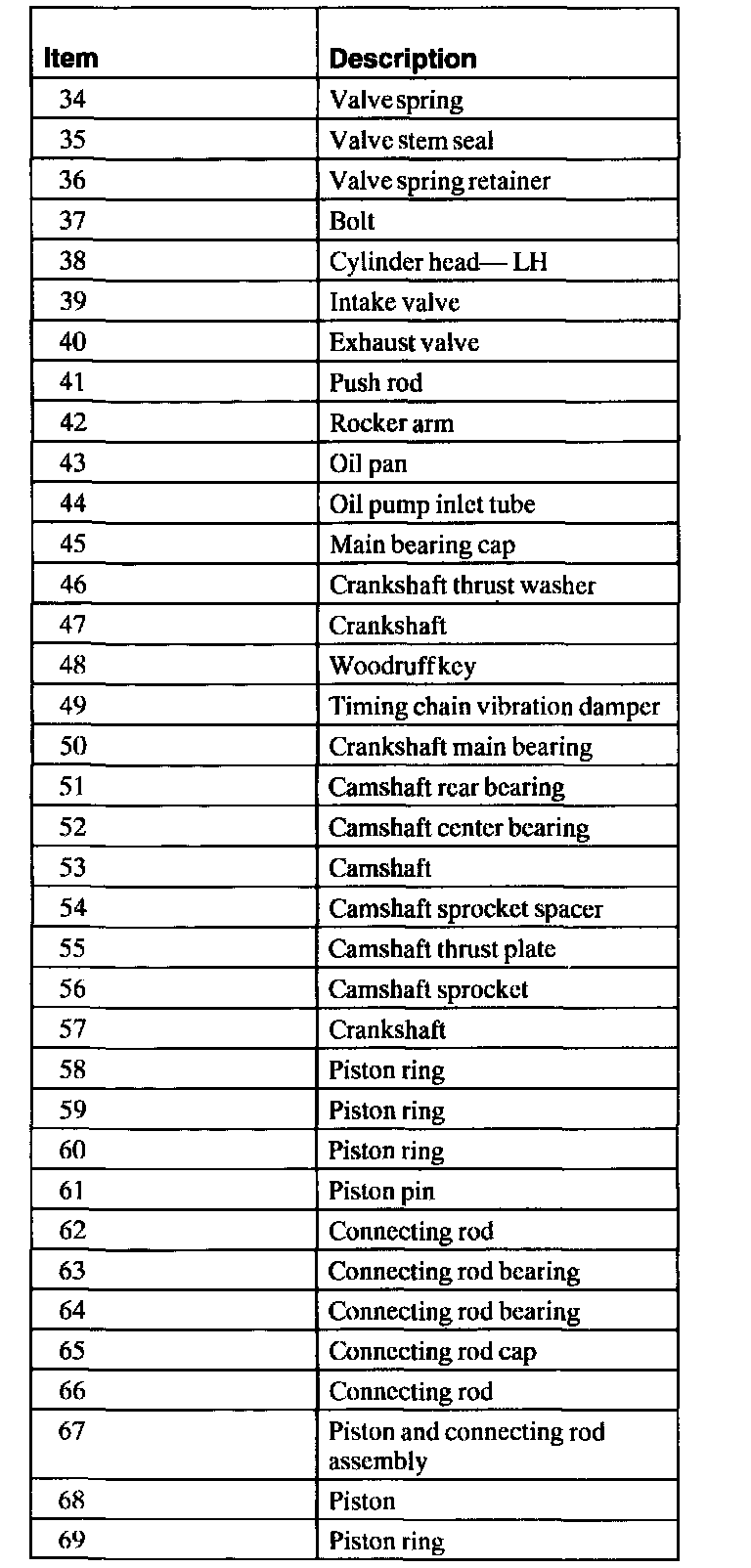

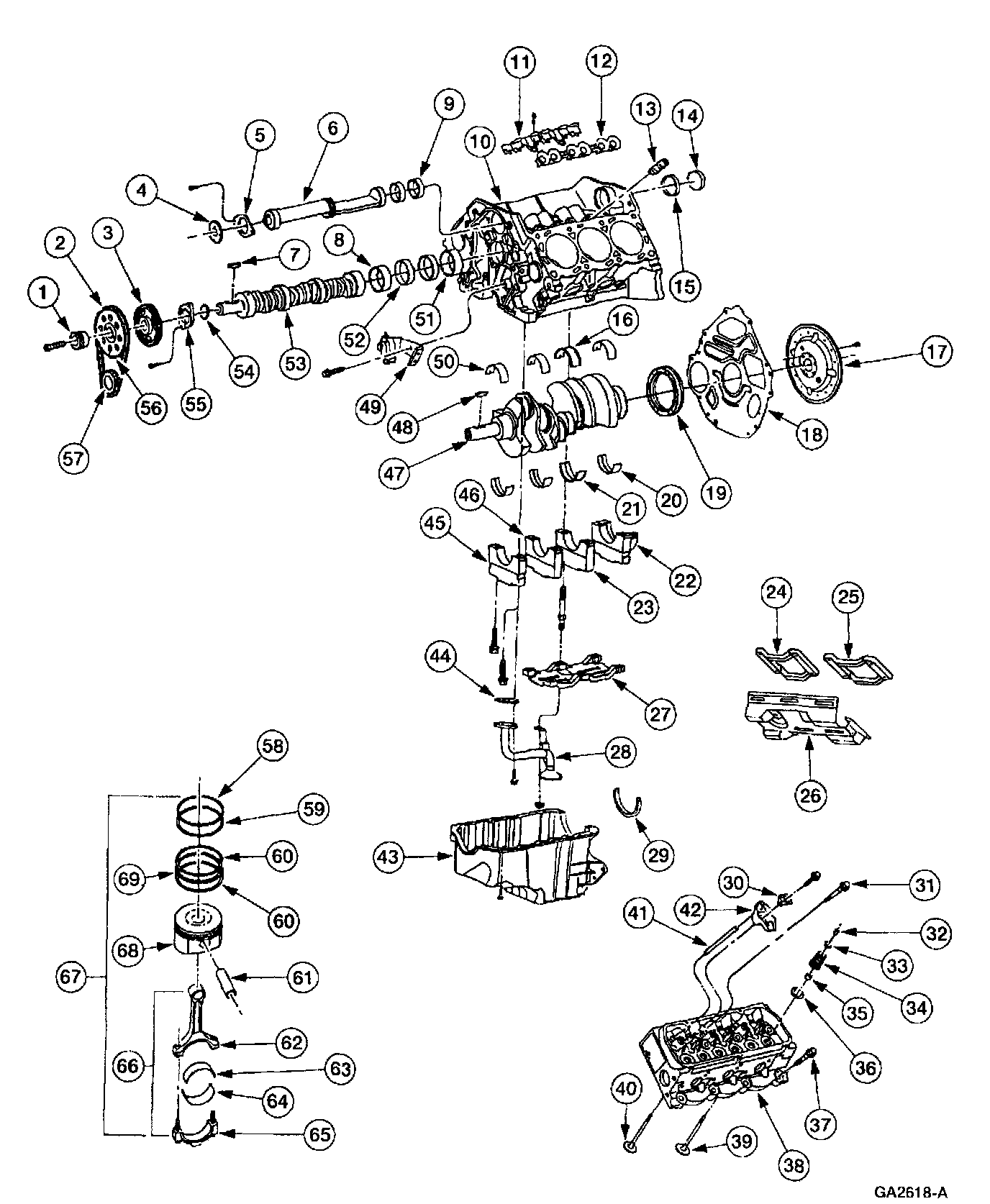

Cylinder Block and Lower End Components

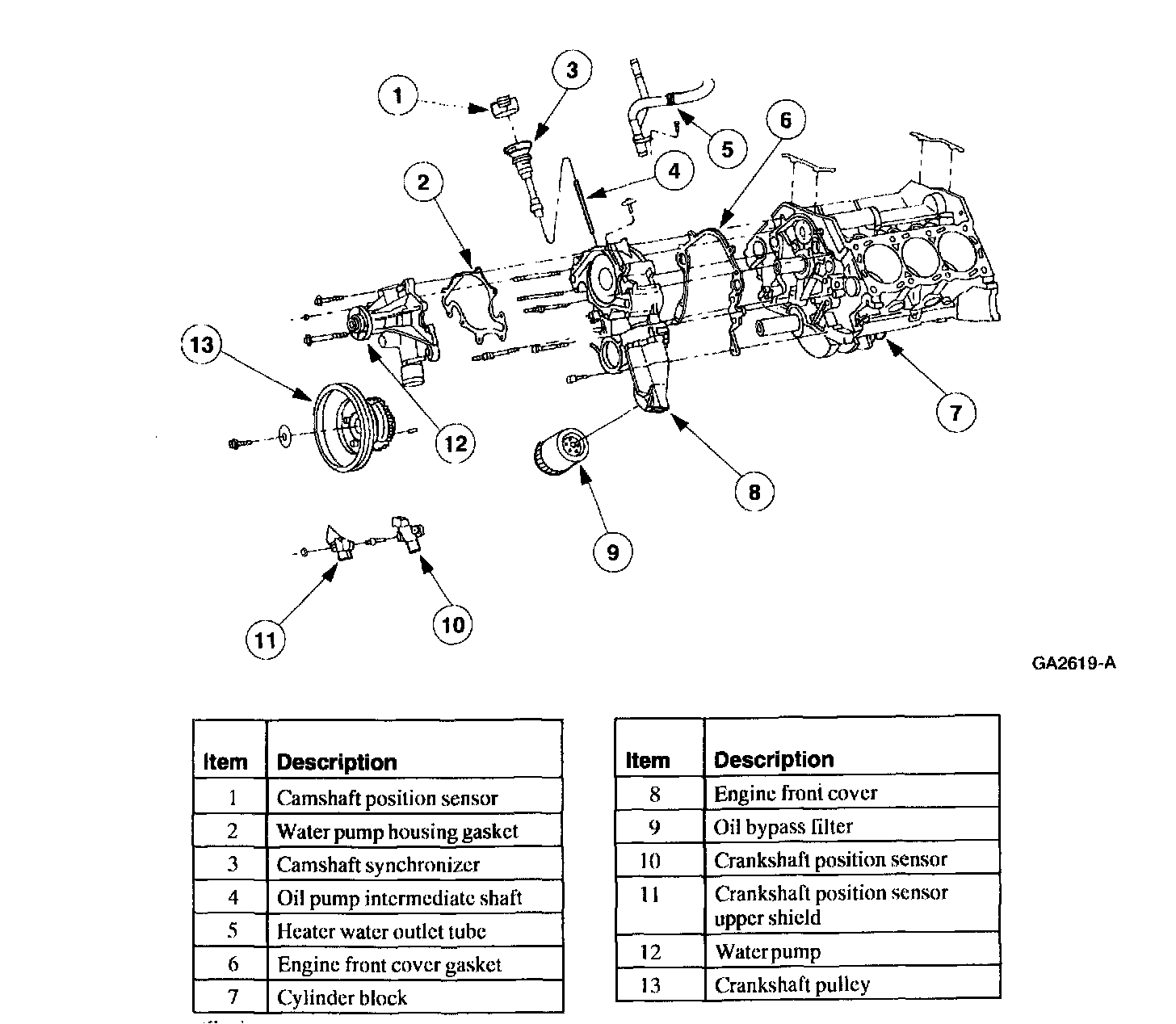

Engine Front Cover Components
