RH

Removal

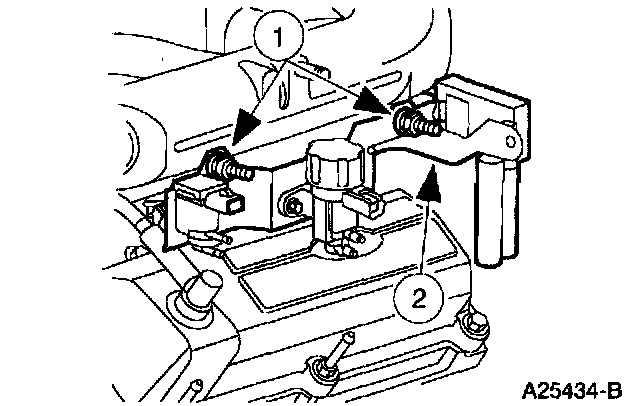

1. Position the Engine Vacuum Regulator (EGR) bracket aside.
1 Remove the bolts.
2 Position the EGR bracket aside.

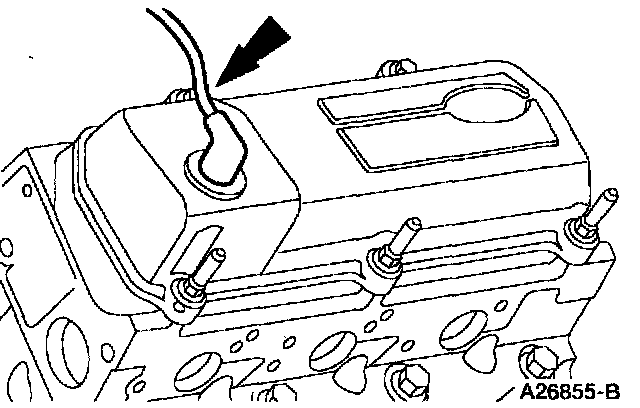

2. Remove the crankcase ventilation hose.

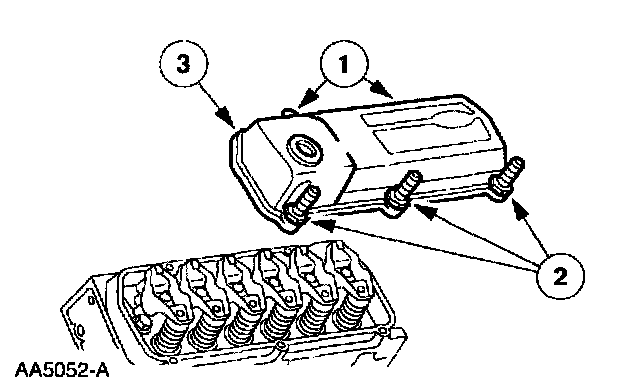

3. Remove the RH valve cover.
1 Loosen the bolts.
2 Loosen the stud bolts.
3 Remove the RH valve cover.
4. Remove and discard the RH valve cover gasket.


Installation
1. Install a new valve cover gasket.

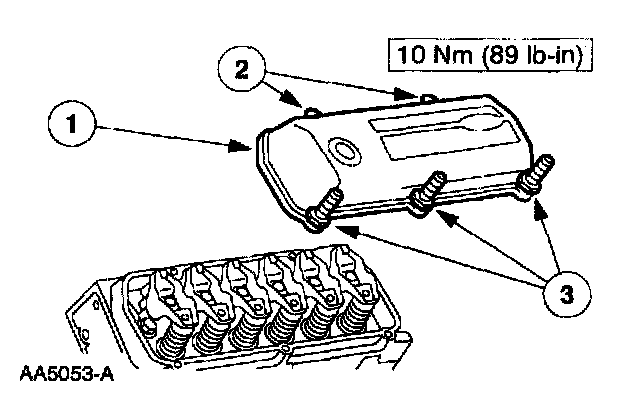

2. Install the RH valve cover.
1 Position the RH valve cover.
2 Tighten the two bolts.
3 Tighten the three stud bolts.

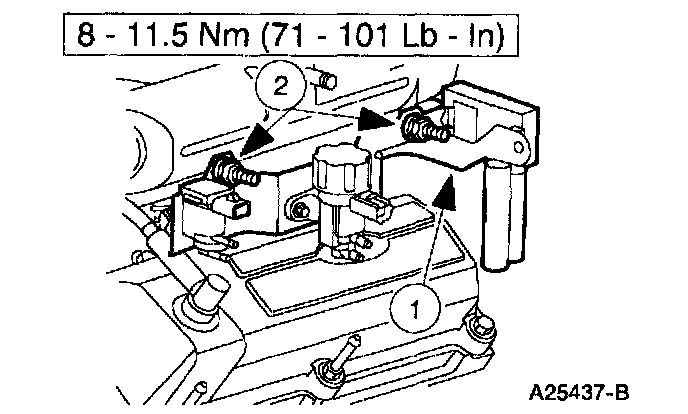

3. Install the EGR bracket.
1 Position the EGR bracket.
2 Install the stud bolts.





4. Install the crankcase ventilation hose.
