LH

Removal

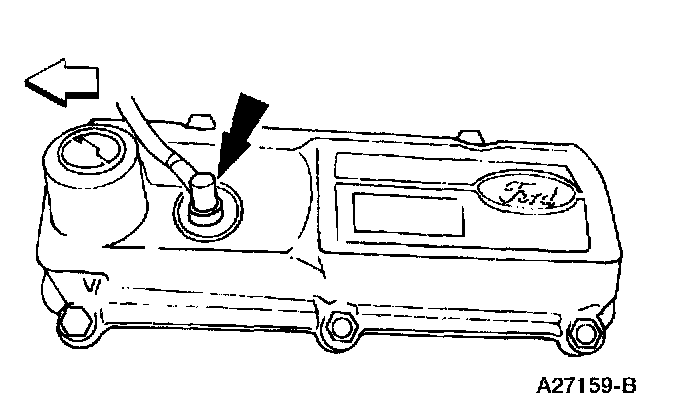

1. Remove the Positive Crankcase Ventilation Valve (PCV).





2. Remove the LH valve cover.

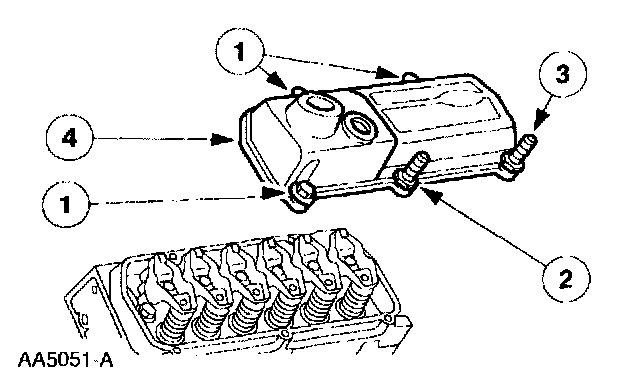

1 Loosen the bolts.
2 Loosen the stud bolts.
3 Remove the stud bolts.
4 Remove the LH valve cover.
3. Remove and discard the LH valve cover gasket.


Installation
1. Install a new valve cover gasket.





2. Install the cover.
1 Position the cover.

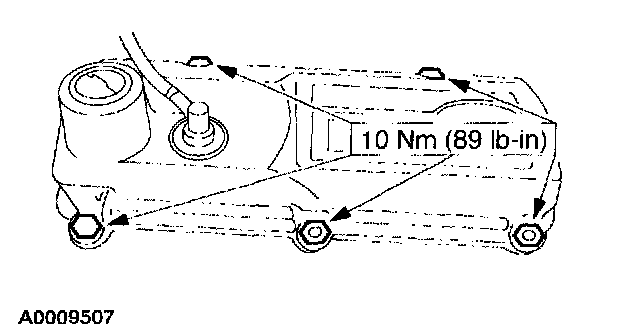

2 Tighten the bolts and stud bolts.





3. Install the Positive Crankcase Ventilation (PCV) valve.
