Home
>>
Ford Truck
>>
2000
>>
F 150 2WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Heater Circuits
Heater Circuits

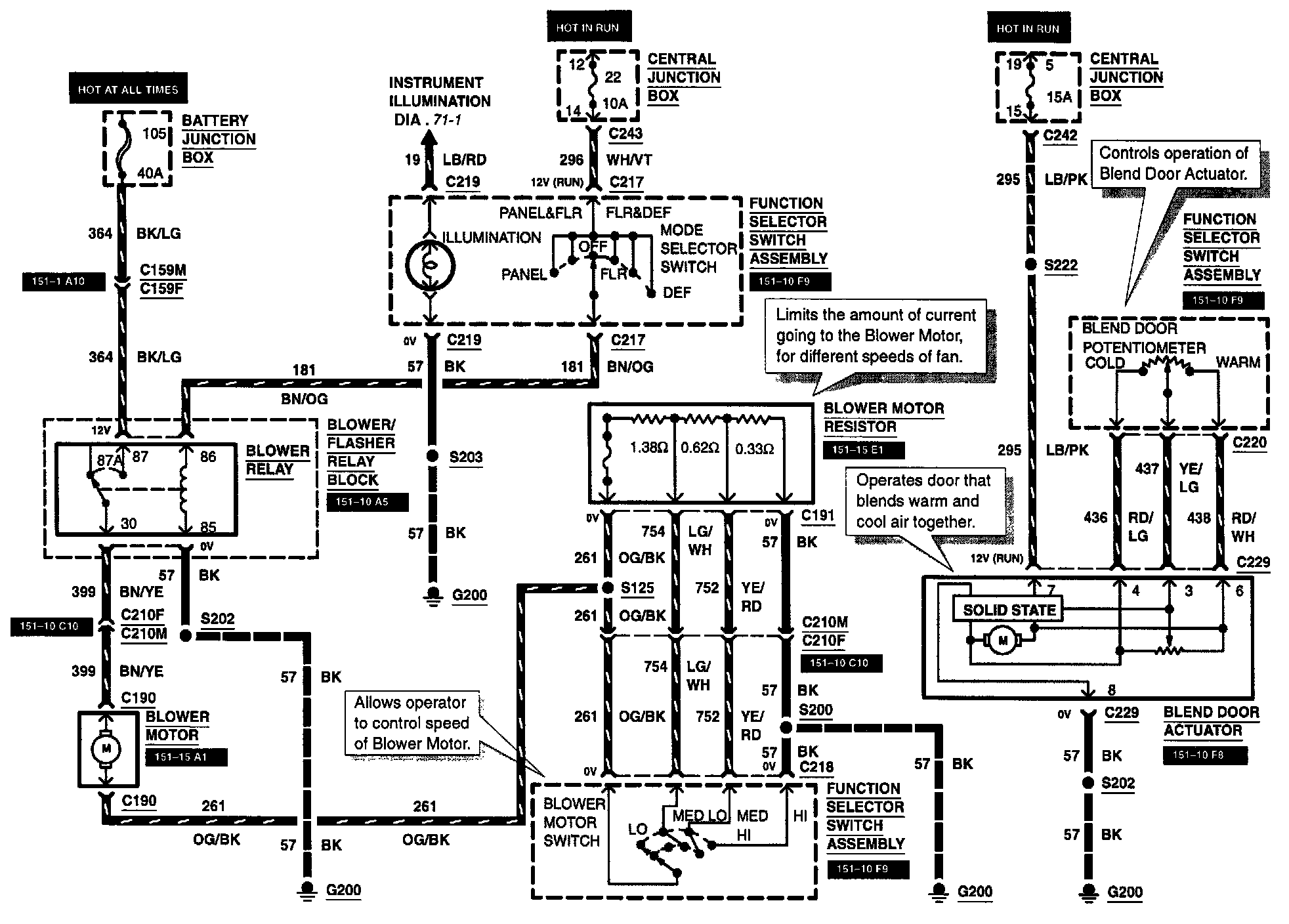

Diagram 53-1:
