Antilock Brakes / Traction Control Systems
>>
With 4 Wheel Antilock Brake System
With 4 Wheel Antilock Brake System

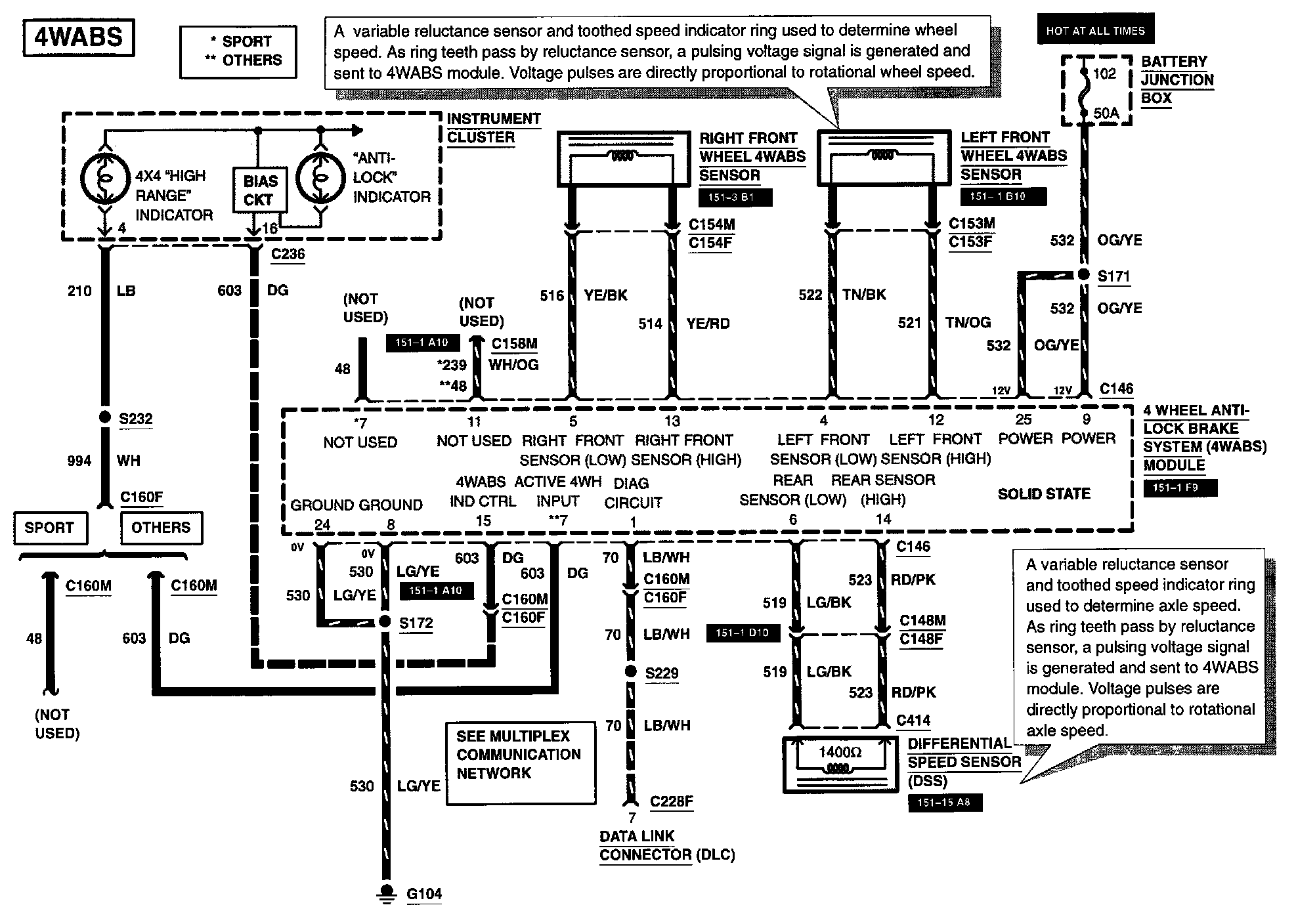

Diagram 42-3:

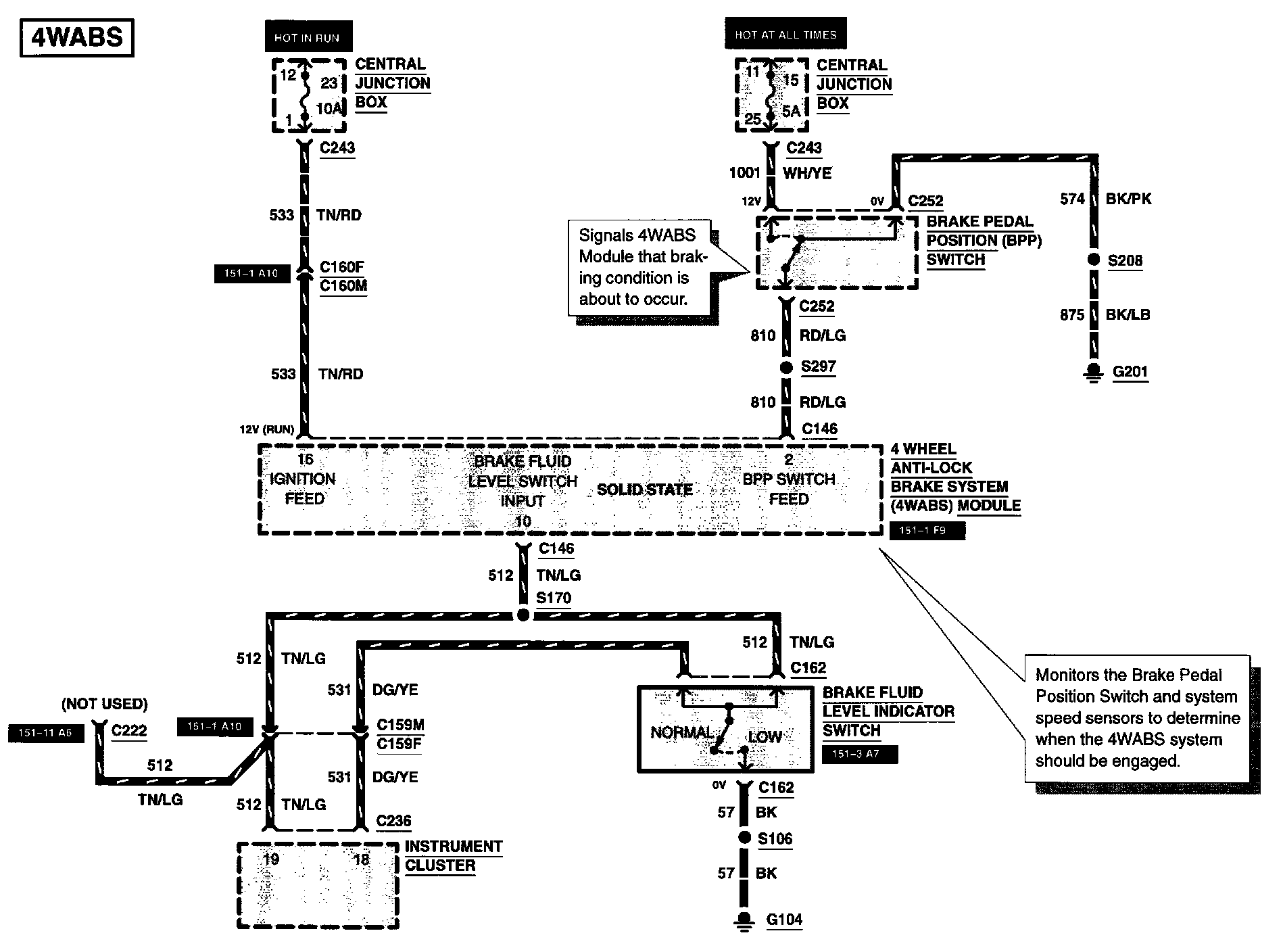

Diagram 42-4:
