Parking Brake Control: Service and Repair

Removal





1. Note: Make sure the parking brake control is fully released. Relieve the tension on the parking brake system.

1. Pull the front parking brake cable and conduit.
2. Insert a suitable retainer.

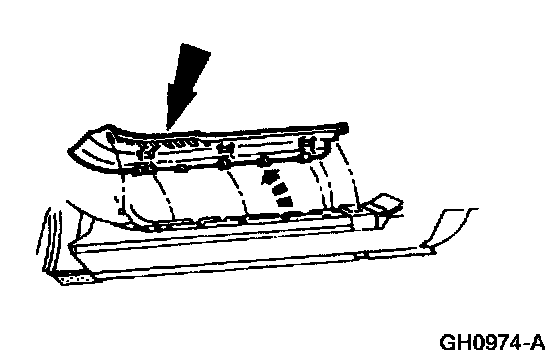

2. Remove the front door scuff plate.

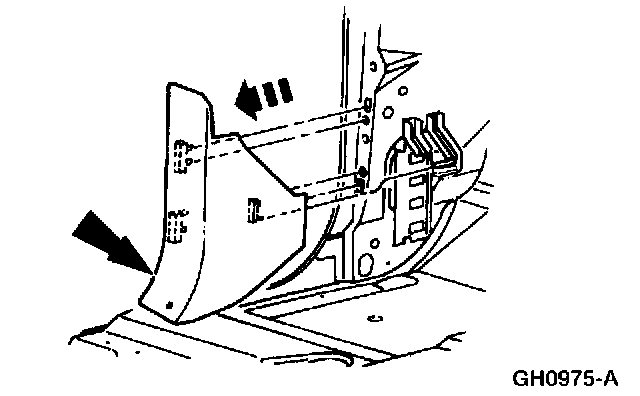

3. Remove the cowl side trim panel.

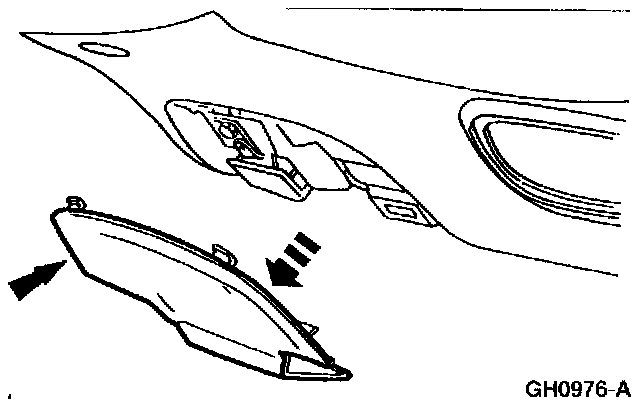

4. Pull to release the three clips and remove the lower instrument panel steering column cover.

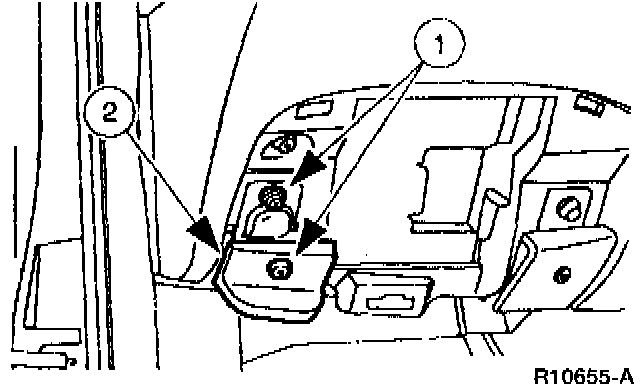

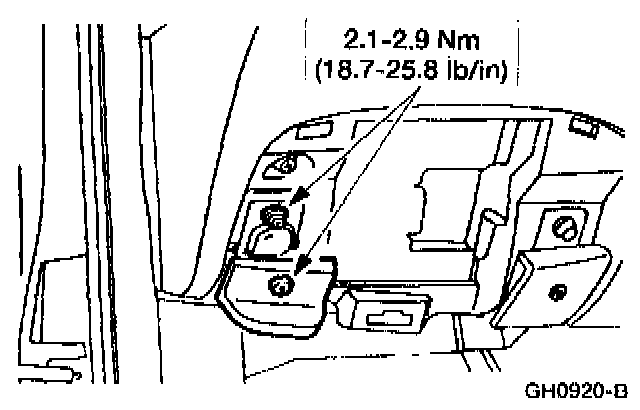

5. Disconnect the parking brake control release handle.
1. Remove the screws.
2. Disconnect the release handle from the release cable.

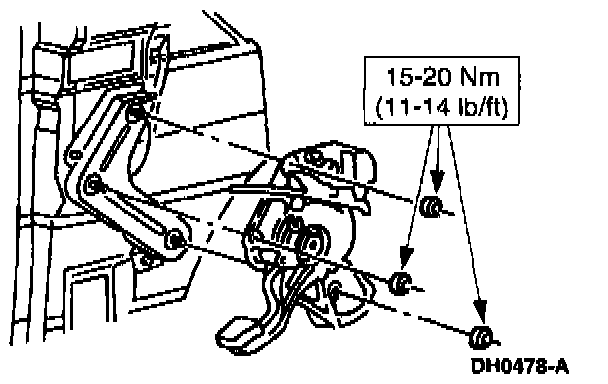

6. Separate the parking brake control from the mounting bracket.
1. Disconnect the parking brake signal switch electrical connector.
2. Remove the parking brake control nuts.
3. Separate the parking brake control from the mounting bracket.

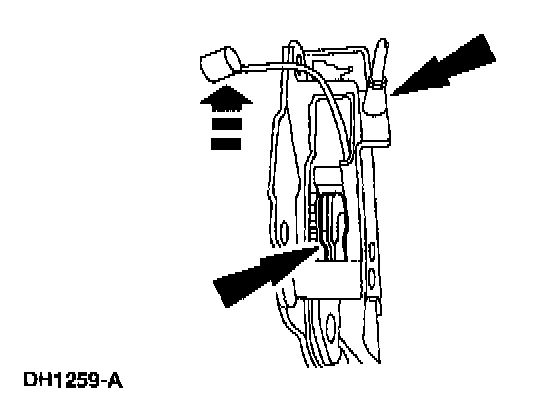

7. Disconnect the cables.
^ Disconnect the front parking brake cable and conduit from the parking brake control.
^ Disconnect the release cable.

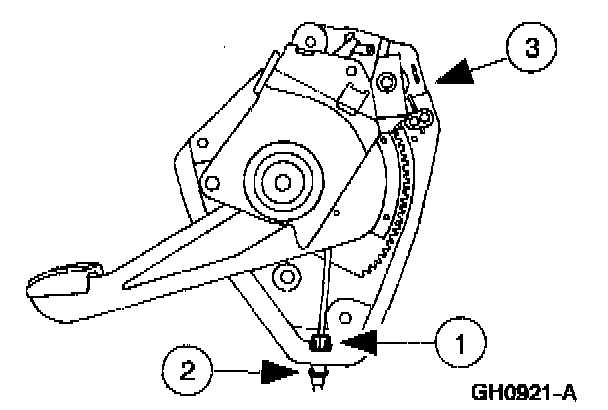

8. Remove the parking brake control.
1. Compress the connector to release the front parking brake cable and conduit.
2. Remove the front parking brake cable and conduit.
3. Remove the parking brake control.

Installation








1. Follow the removal procedure in reverse order.
