Brake Disc Shield

Removal
1. Remove the rear wheel disc brake adapter.

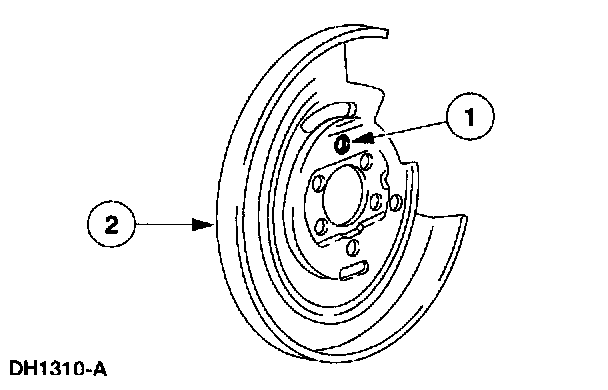

2. Remove the rear wheel disc brake shield.
1. Drill out the rivet.
2. Remove the rear wheel disc brake shield.

Installation

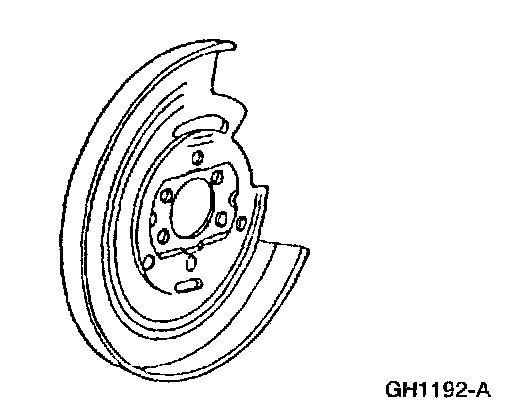

1. Note: Because the rear wheel disc brake shield is held in position by the four rear wheel disc brake adapter bolts, a new rivet is not required.

Seal the rivet hole with Clear Silicone Rubber D6AZ-19562-AA or equivalent meeting Ford specification ESB-M4G92-A, and install the rear wheel disc brake shield.

2. Install the rear wheel disc brake adapter.
