Brake Disc Shield

Removal
1. Remove the brake disc.
2. On 4x4 vehicles, remove the wheel hub.

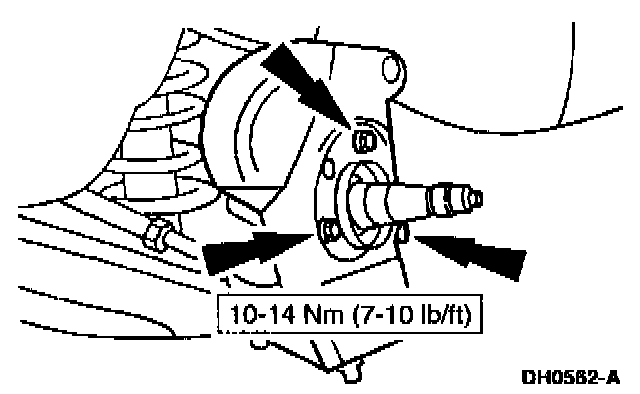

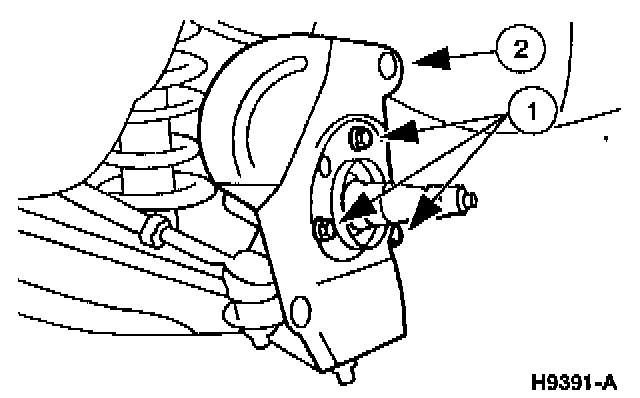

3. On 4x2 vehicles, remove the brake disc shield.
1. Remove the three bolts.
2. Remove the brake disc shield.

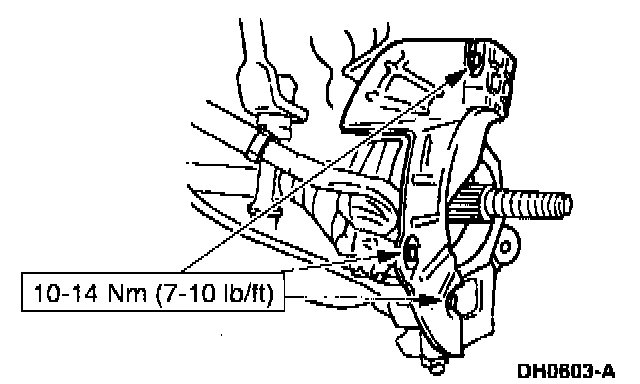

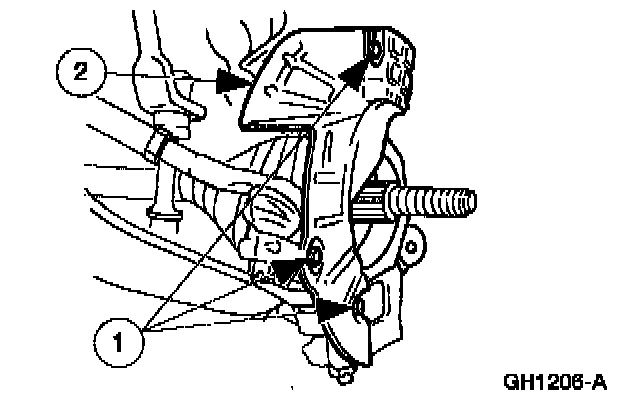

4. On 4x4 vehicles, remove the brake disc shield.
1. Remove the bolts.
2. Remove the brake disc shield.

Installation








1. Follow the removal procedure in reverse order.
