Home
>>
Ford Truck
>>
2000
>>
F 150 2WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
N: Code 9 - High Speed Sensor Resistance
N: Code 9 - High Speed Sensor Resistance
TEST N: CODE 9 - HIGH SPEED SENSOR RESISTANCE

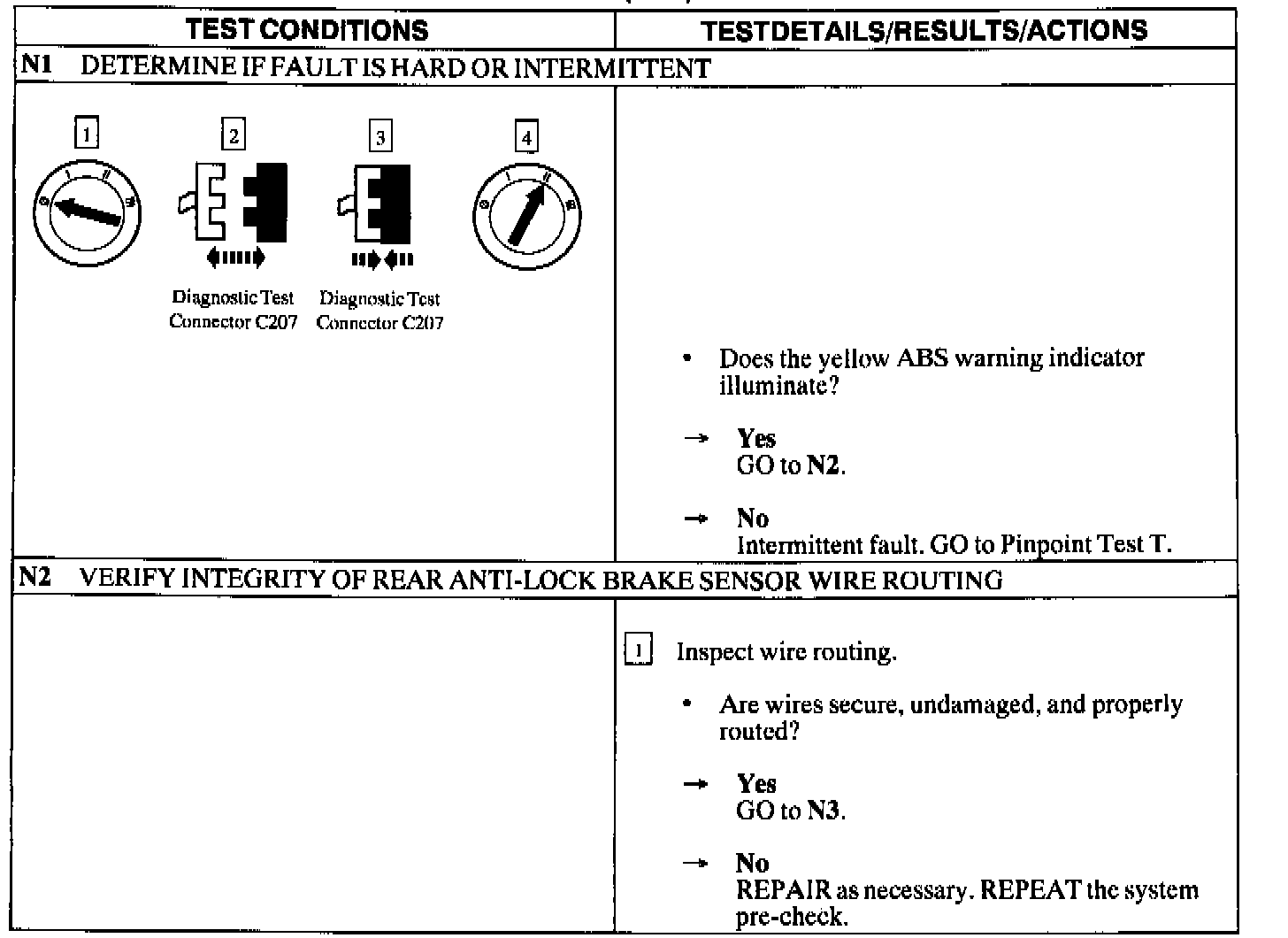

Test N1-N2:

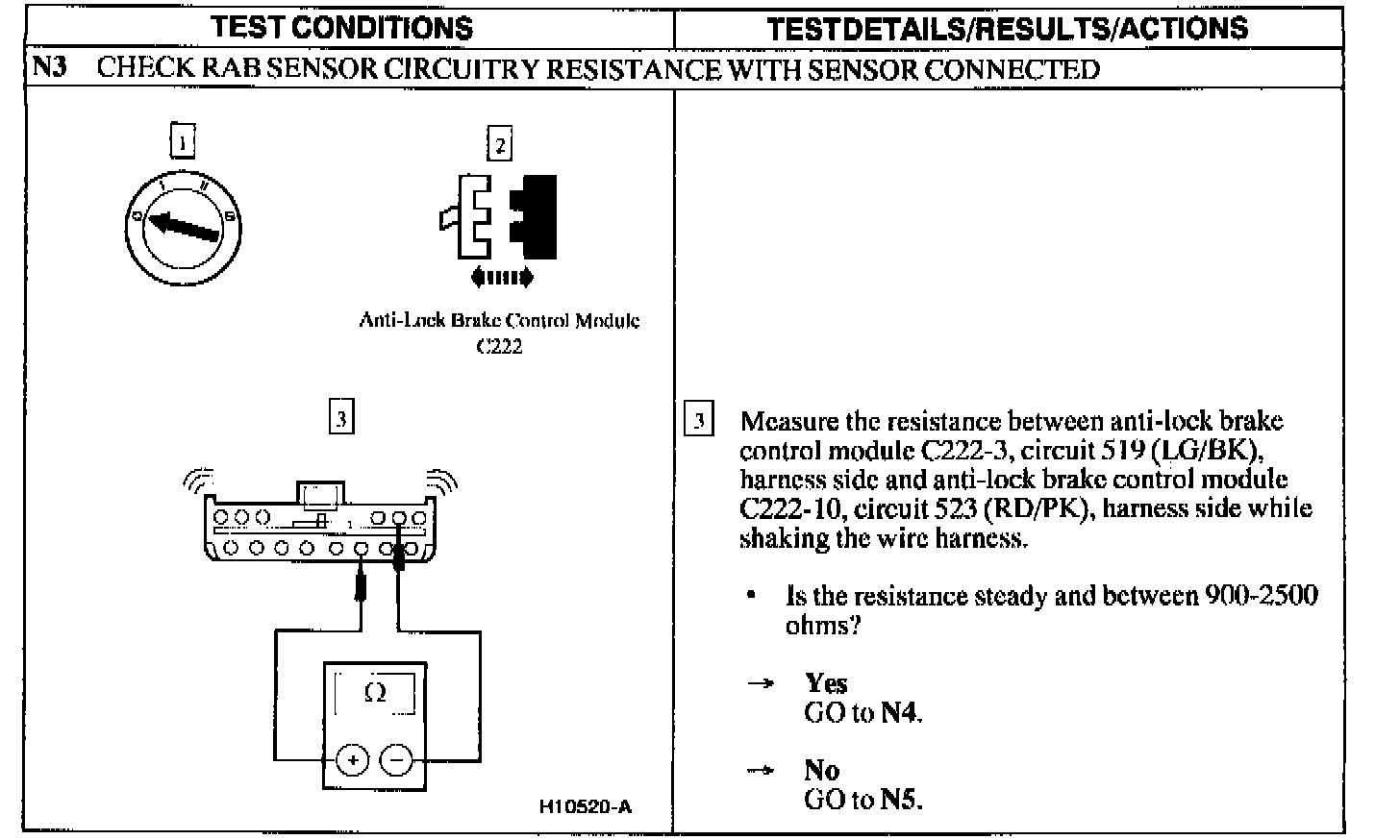

Test N3:

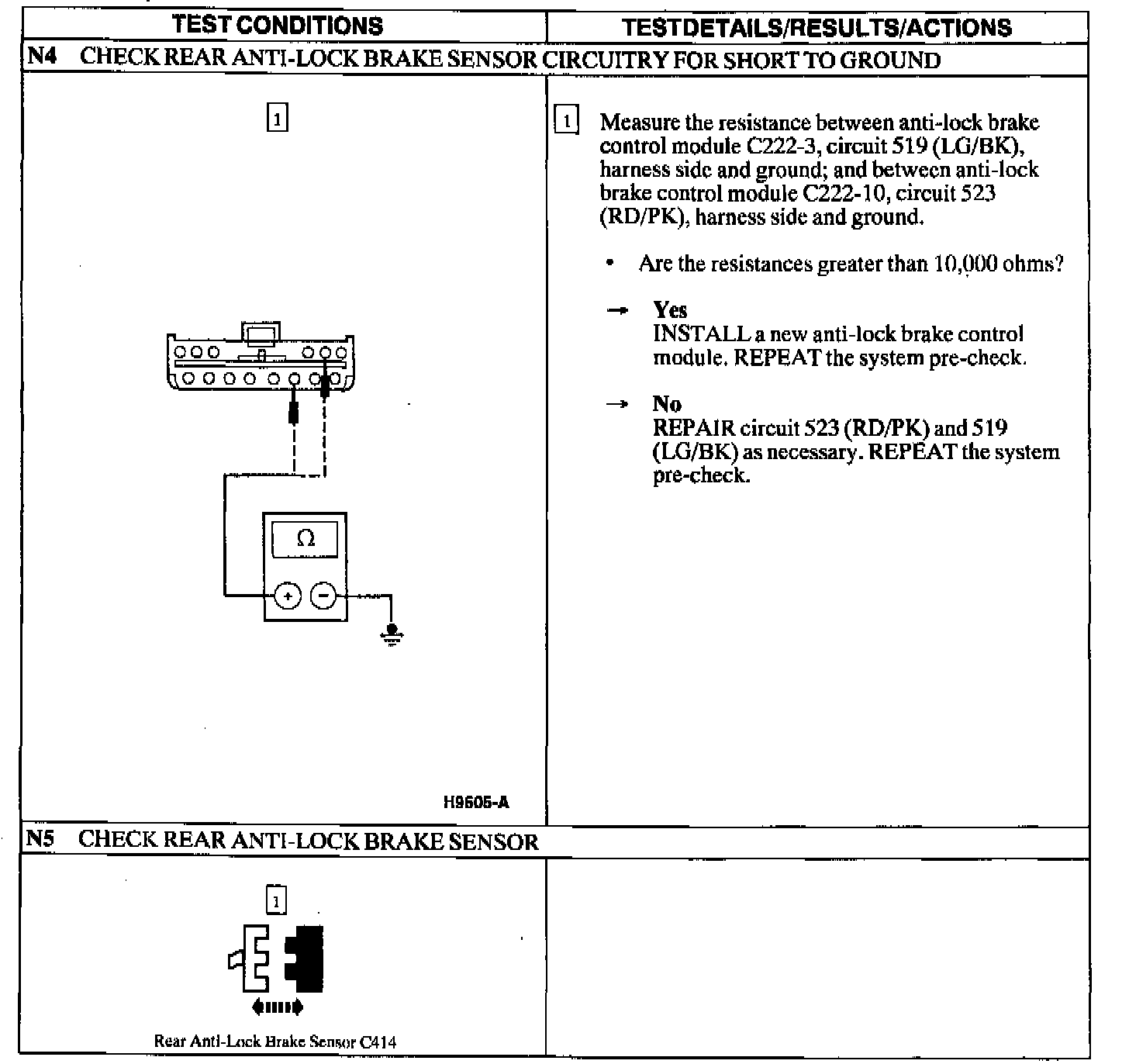

Test N4-N5:

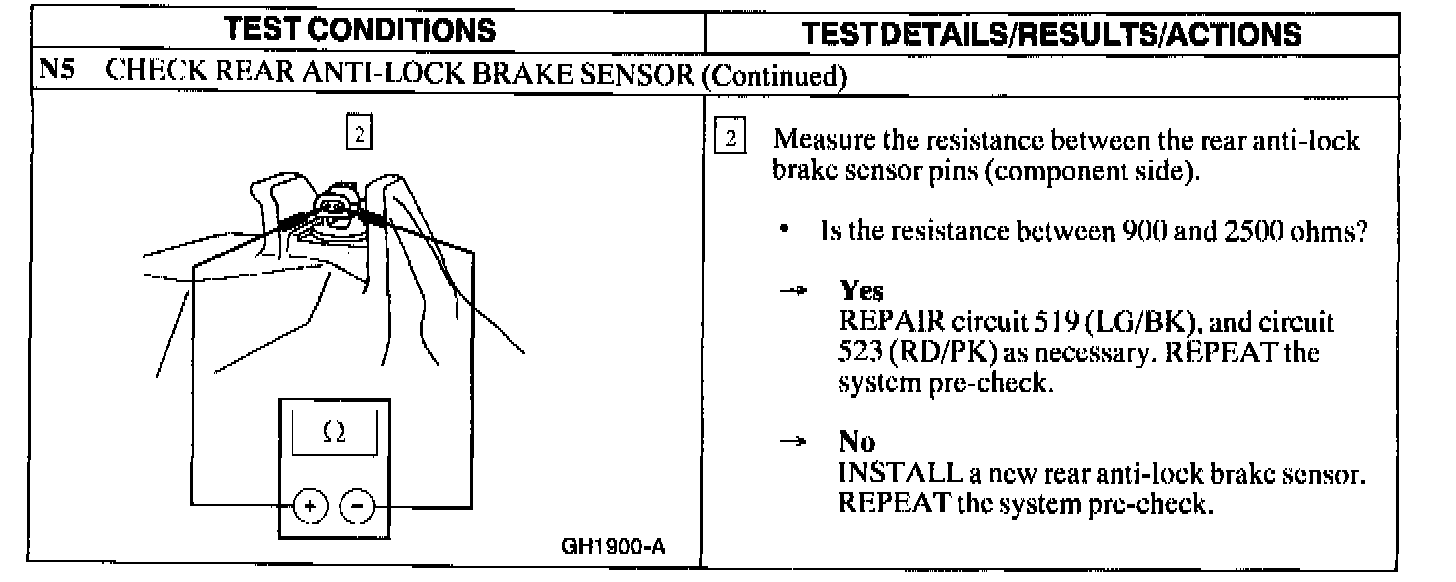

Test N5 (Continued):
