K: Code 6 - Erratic Rear Antilock Brake Sensor Circuit
K: Code 6 - Erratic Rear Antilock Brake Sensor Circuit
TEST K: CODE 6 - ERRATIC REAR
ANTI-LOCK BRAKE SENSOR
CIRCUIT

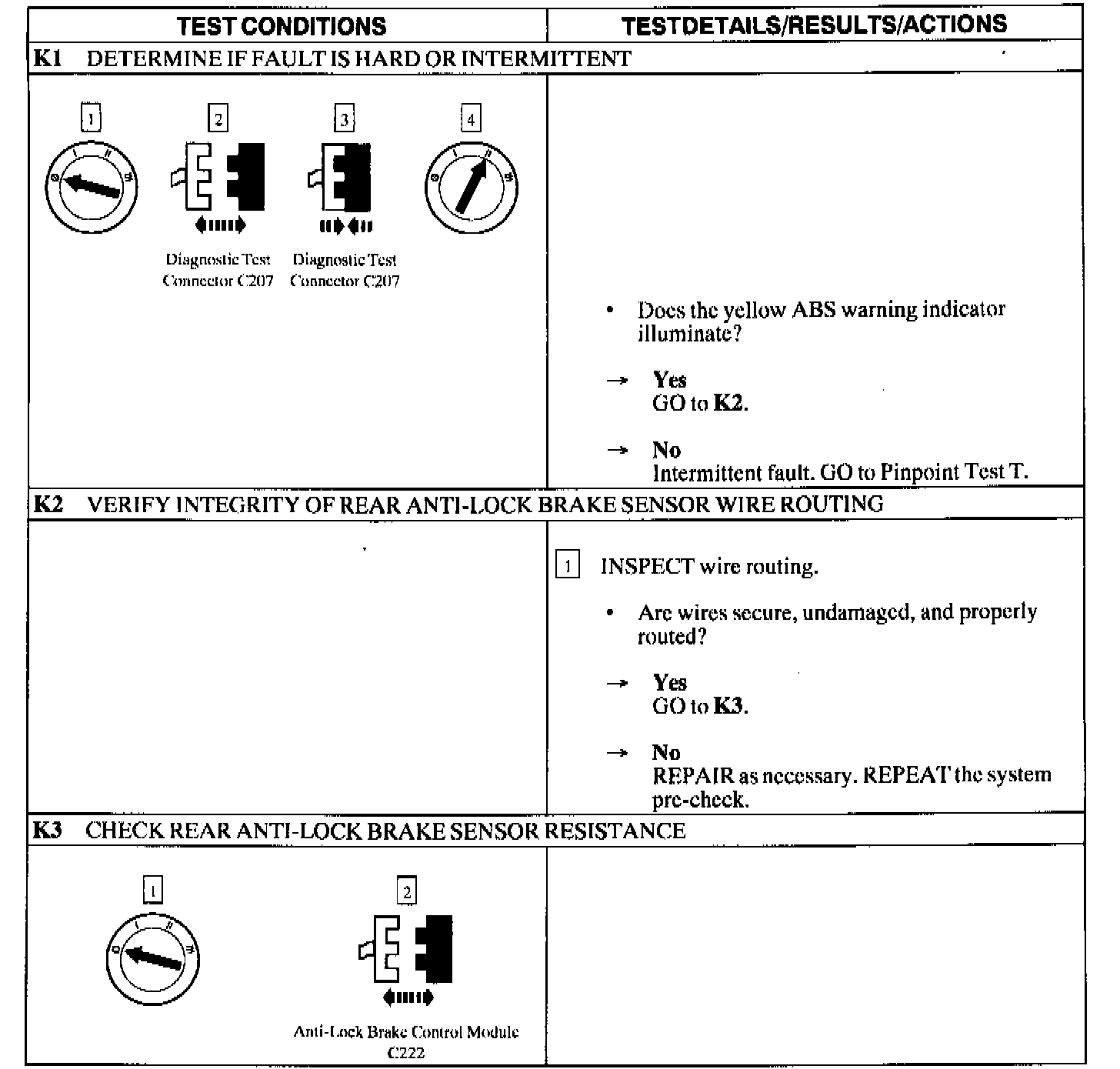

Test K1-K3:

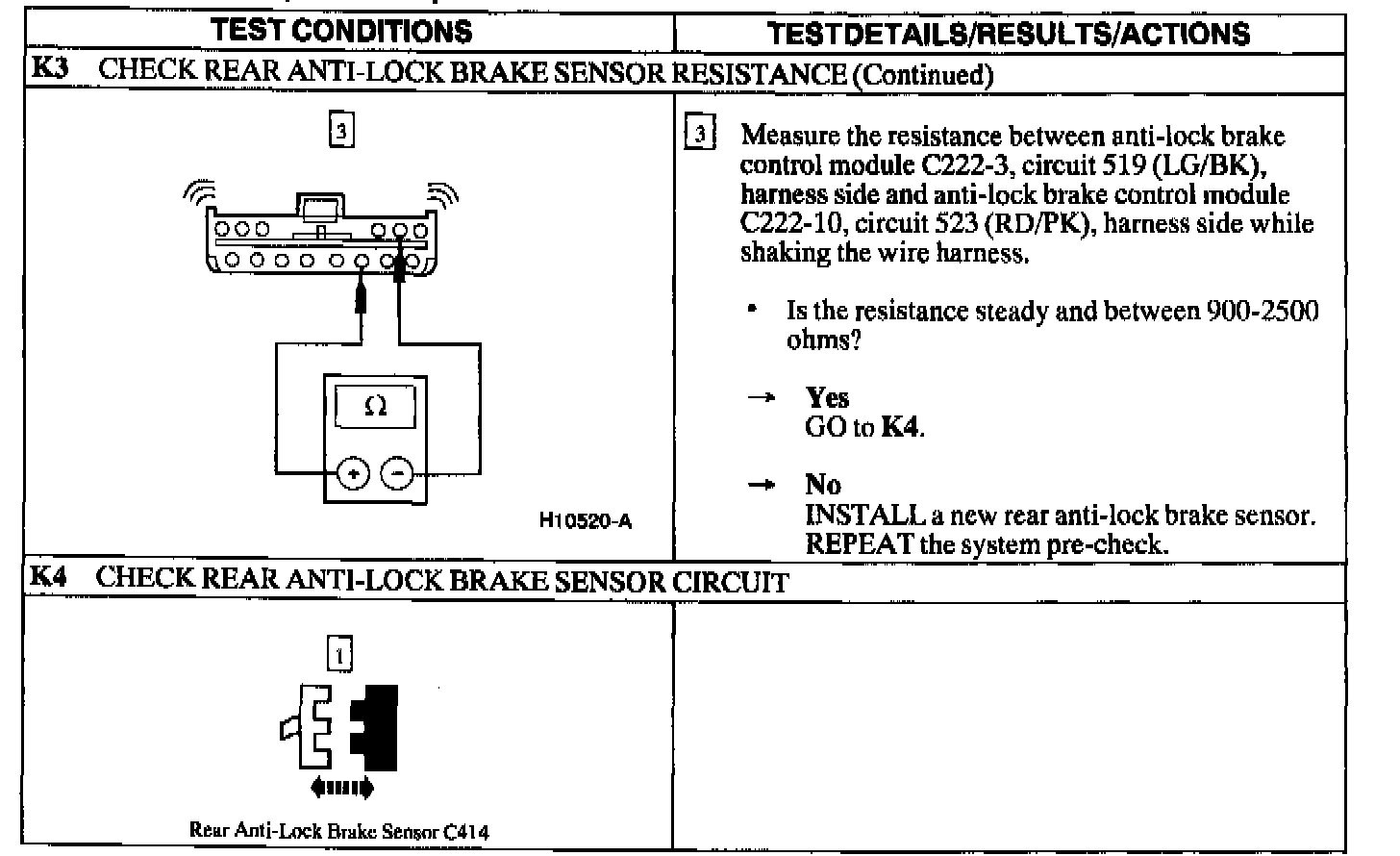

Test K3-K4:

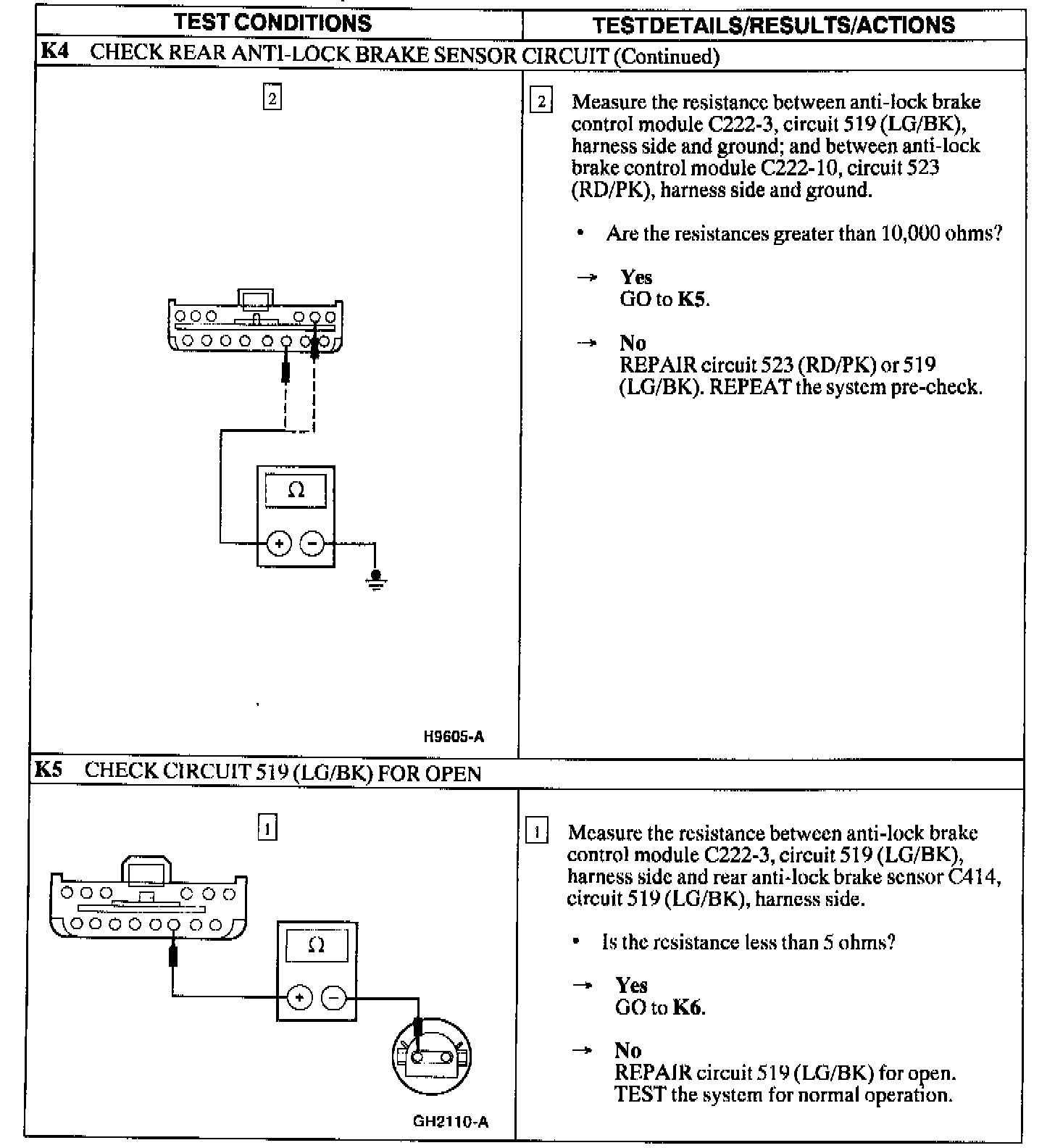

Test K4-K5:

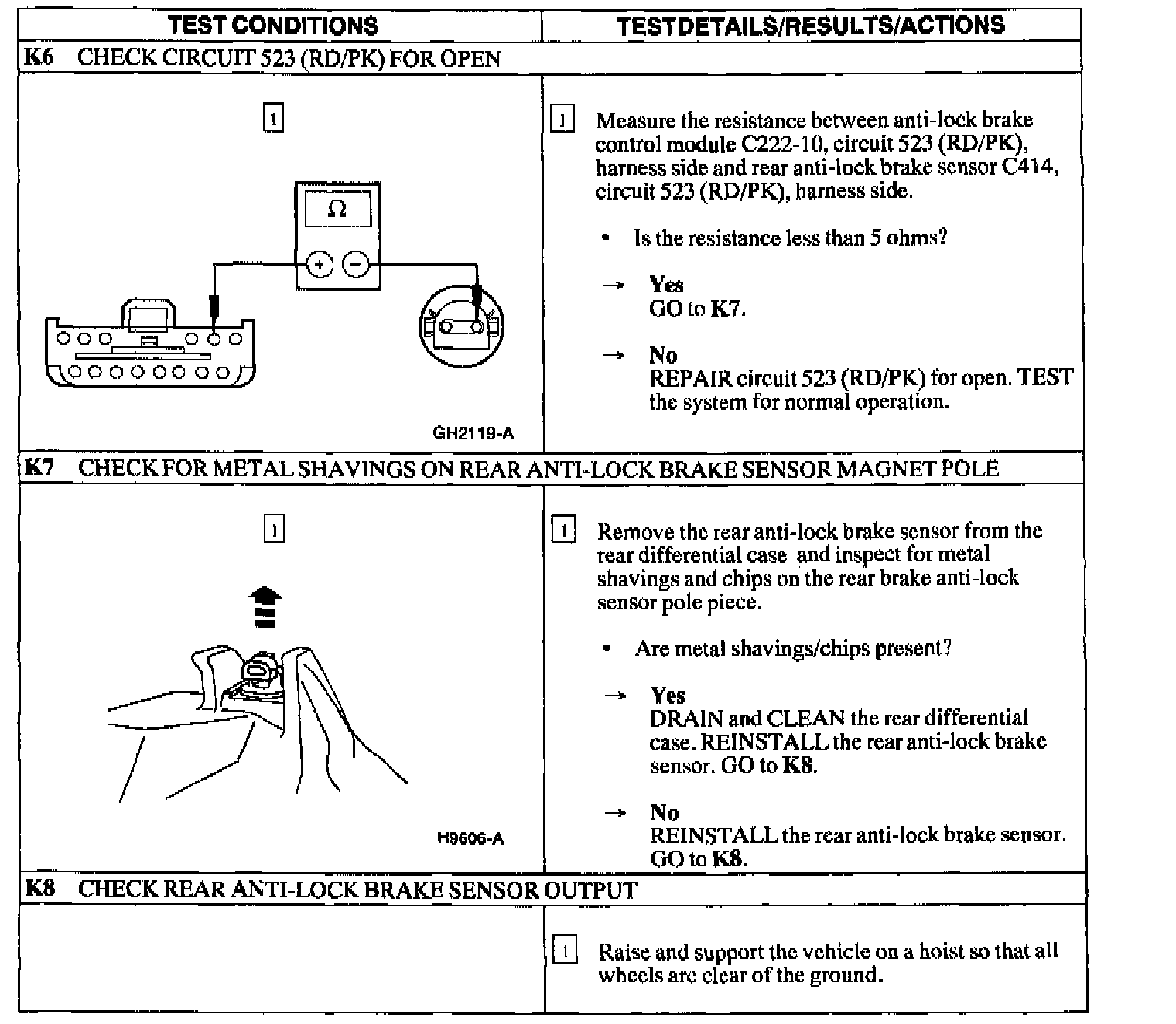

Test K6-K8:
Test K8-K9:

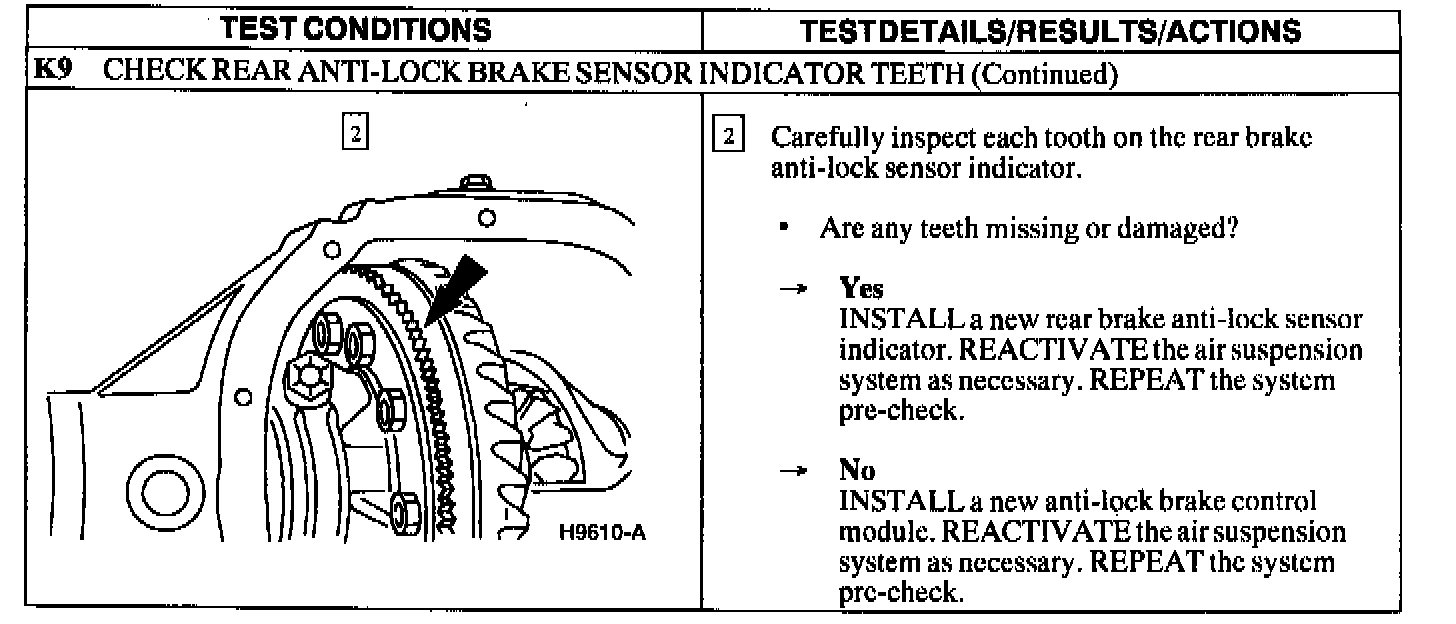

Test K9 (Continued):
