F: Code 2 - Open RABS II Isolation Solenoid Circuit
F: Code 2 - Open RABS II Isolation Solenoid Circuit
TEST F: CODE 2 - OPEN RABS II ISOLATION SOLENOID CIRCUIT

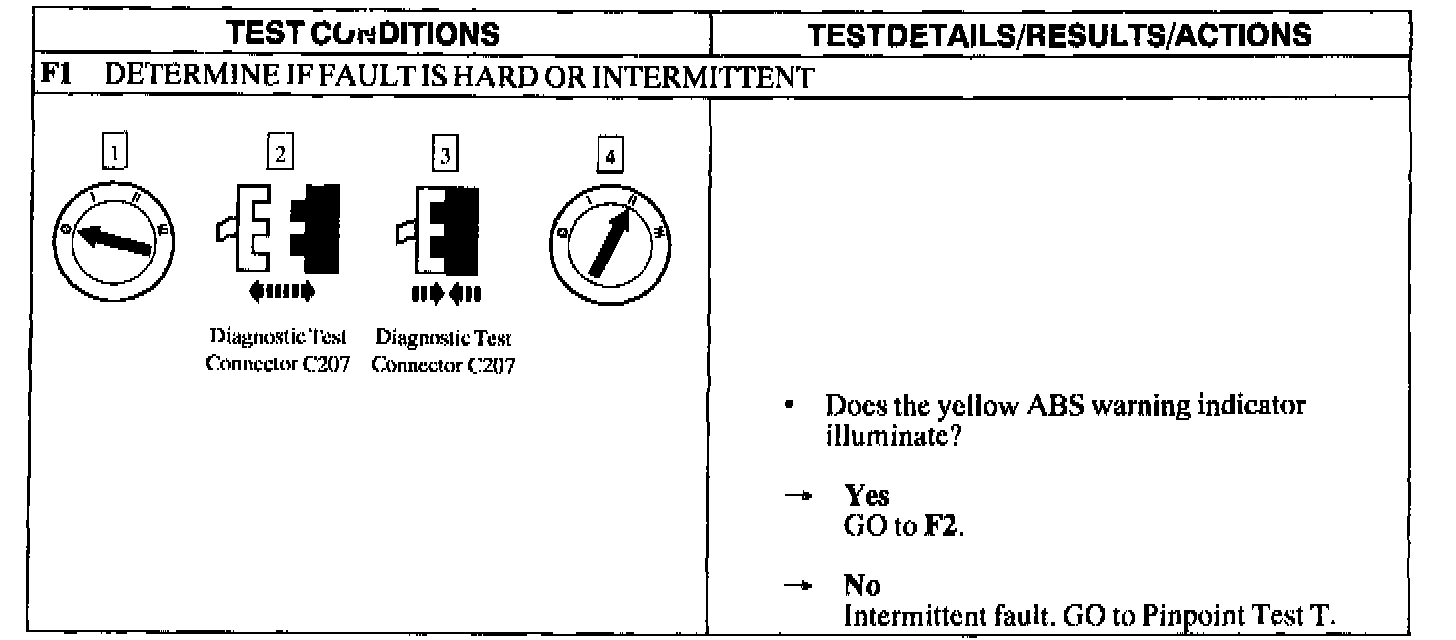

Test F1:

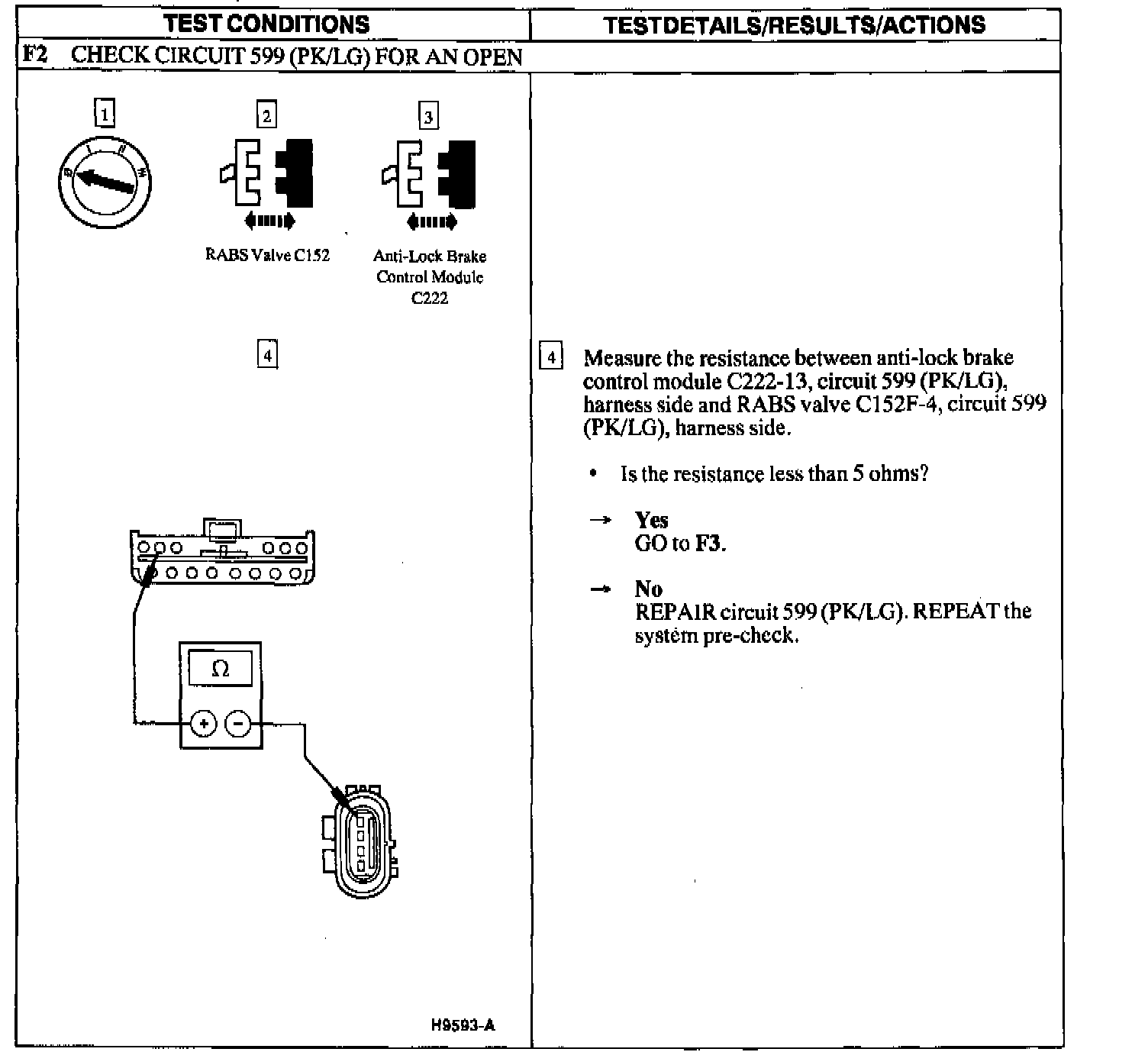

Test F2:

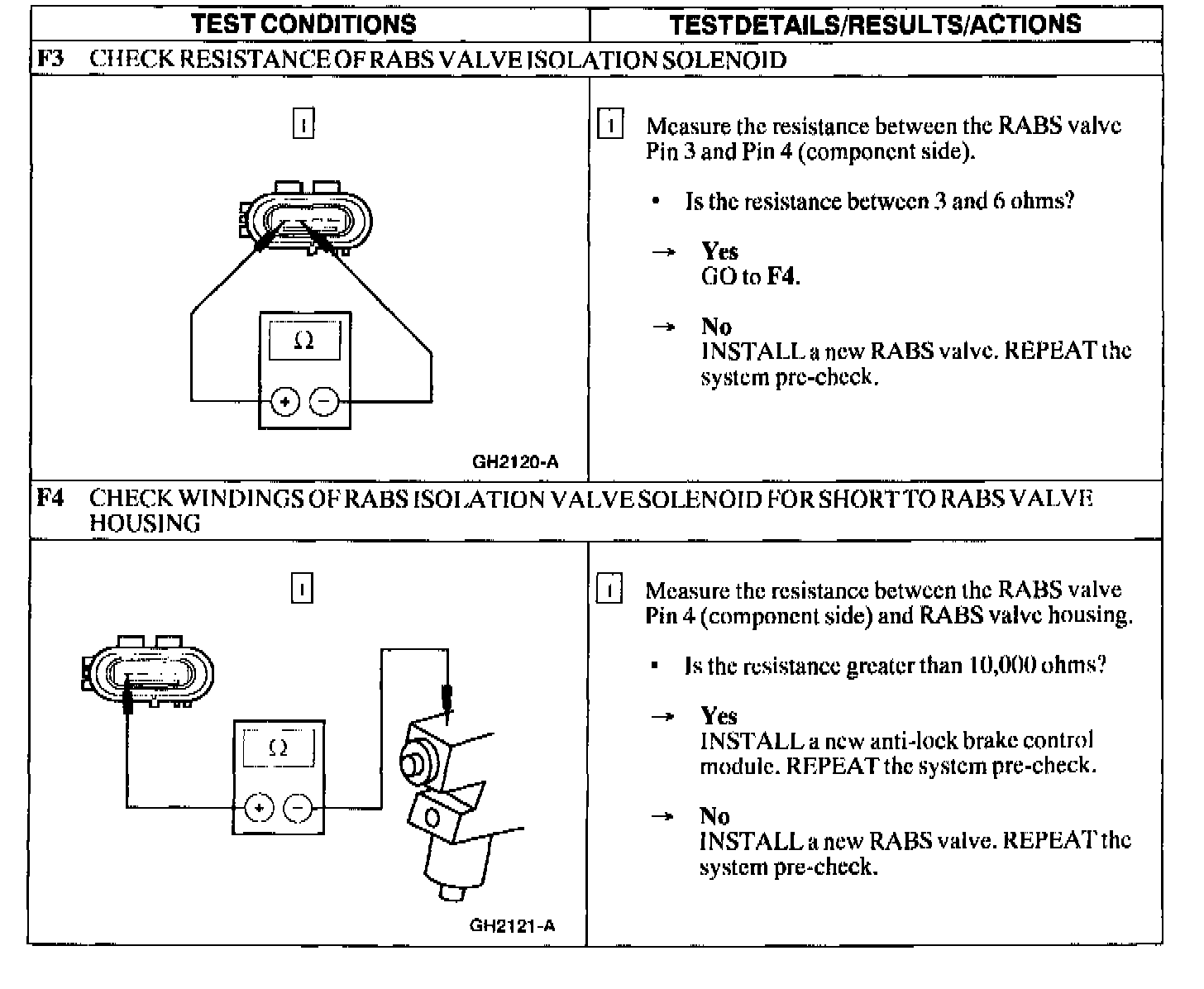

Test F3-F4:
