Antilock Control - Rear

Removal





1. WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

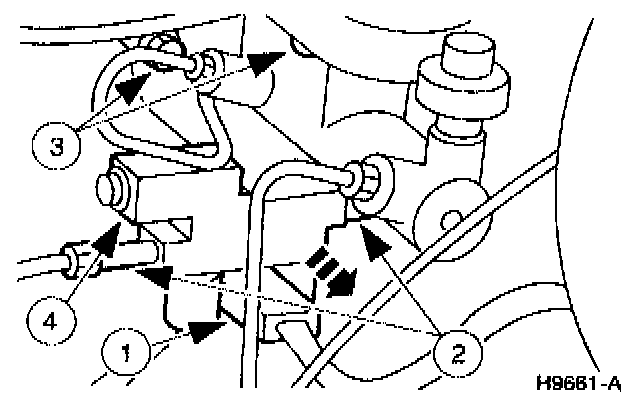

Remove the rear anti-lock brake system (RABS) valve.
1. Disconnect the RABS valve electrical connector.
2. Remove the two hydraulic lines and plug them.
3. Remove the two RA13S valve nuts.
4. Remove the RABS valve.

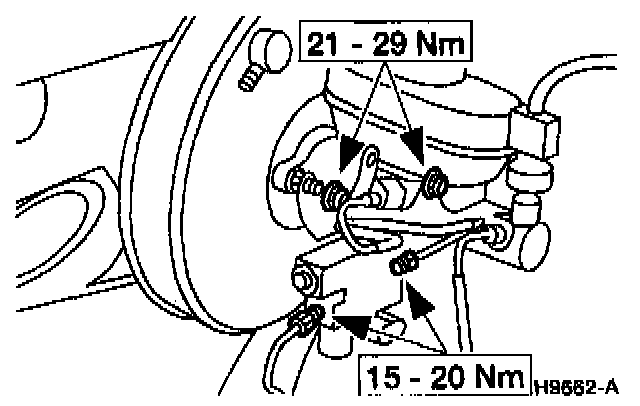

Installation





1. To install, reverse the removal procedure.
^ Bleed the brakes.
