Door Latch Remote Control

REMOVAL







1. Open the tailgate.

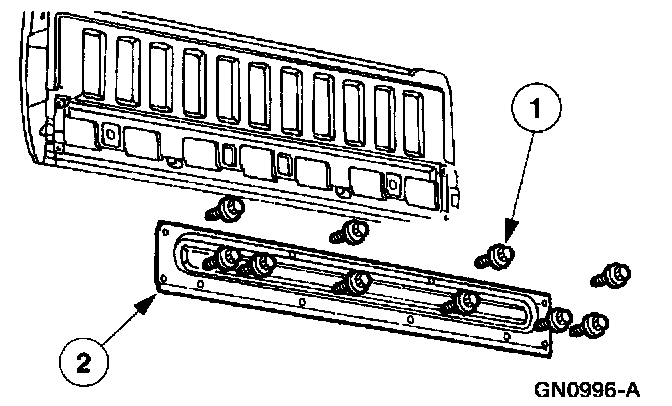

2. Remove the tailgate access panel.
1 Remove the screws.
2 Remove the tailgate access panel.







3. Disconnect the tailgate latch rods.
1 Open the two clips.
2 Disconnect the two rods.

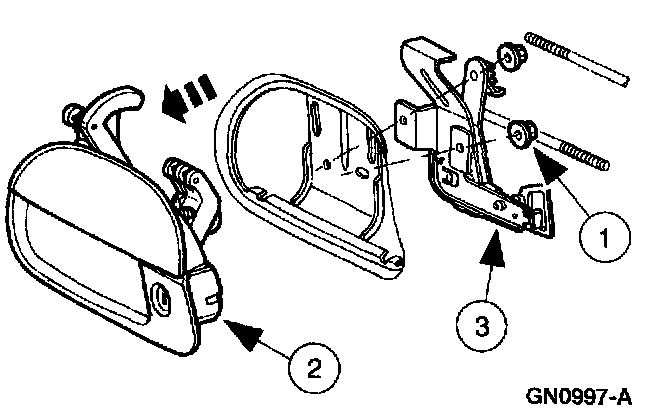

4. Remove the tailgate handle.
1 Remove the nuts.
2 Remove the tailgate handle.
3 Remove the tailgate latch remote control.

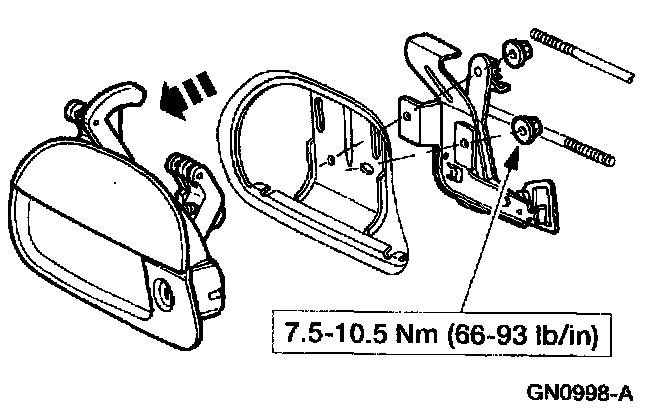

INSTALLATION












1. To install, reverse the removal procedure.

NOTE: Make sure the latch release rods are not preloading the latches. They should be clipped in a relaxed state with no slack.
