Disassembly and Assembly

DISASSEMBLY
1. Remove the seat track.

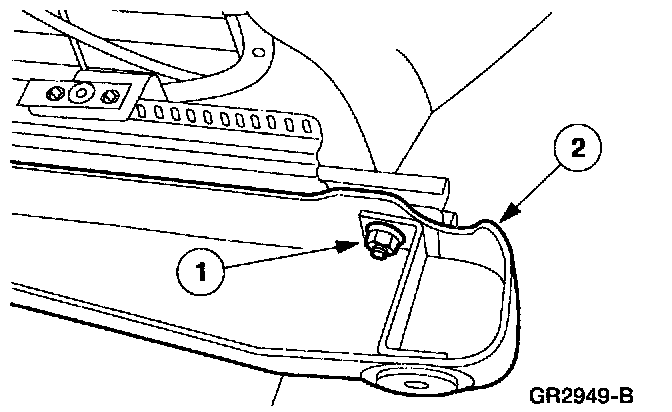

2. Remove the two front seat riser supports.
1 Remove the four nuts.
2 Remove the two front seat riser supports and the riser bracket.

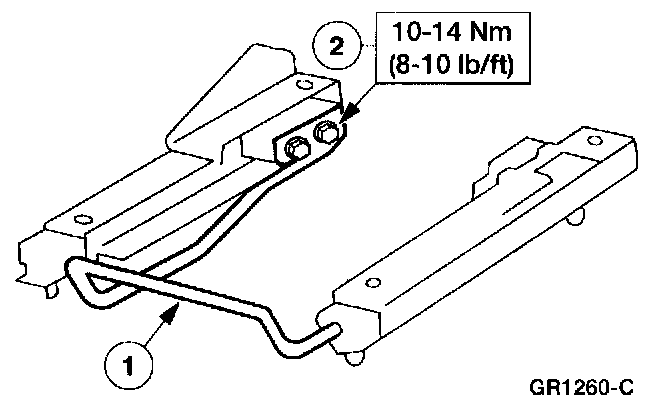

3. Remove manual seat track release bar.
1 Remove the bolts.
2 If equipped, drill out the rivet.
3 Remove the manual seat track release bar.

ASSEMBLY







1. Install manual seat track release bar.
1 Position manual seat track release bar onto the front seat track.
2 Install the three bolts.

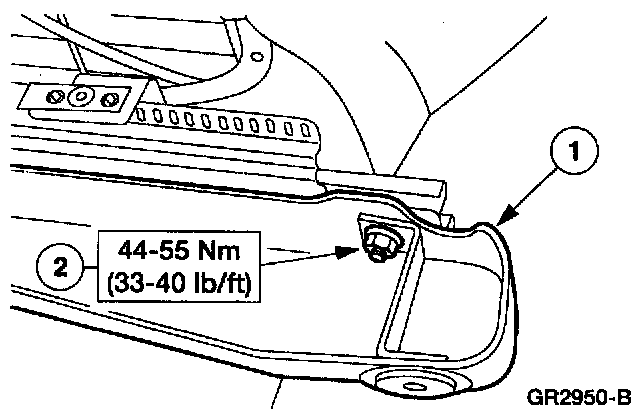

2. Install the two front seat risers.
1 Position the two front seat risers and the riser bracket.
2 Install the four nuts.

NOTE: Inspect the seat risers and verify that plastic isolators are in place.
