Power Seat Switch: Testing and Inspection

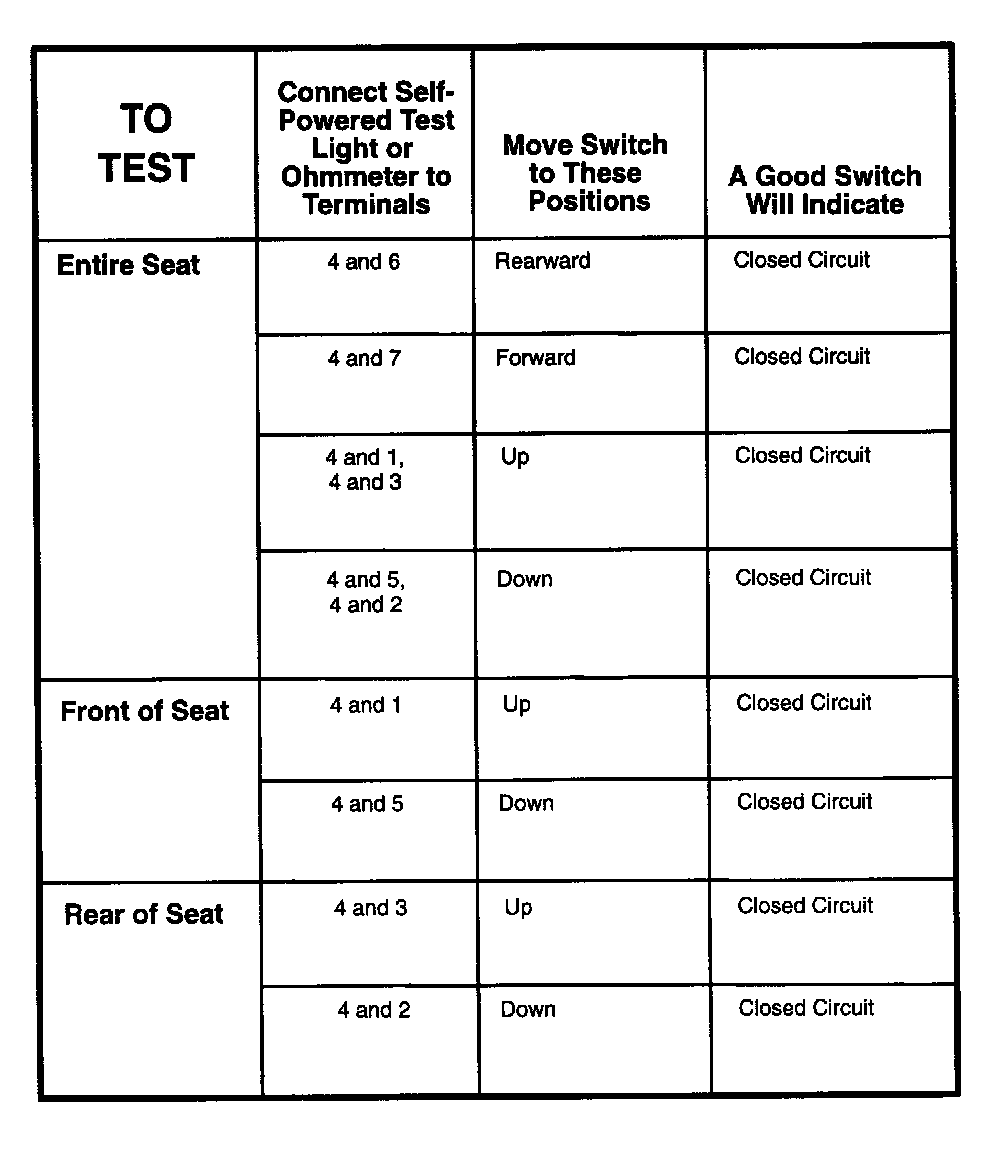

Component Testing Procedure (Part 1 Of 2):

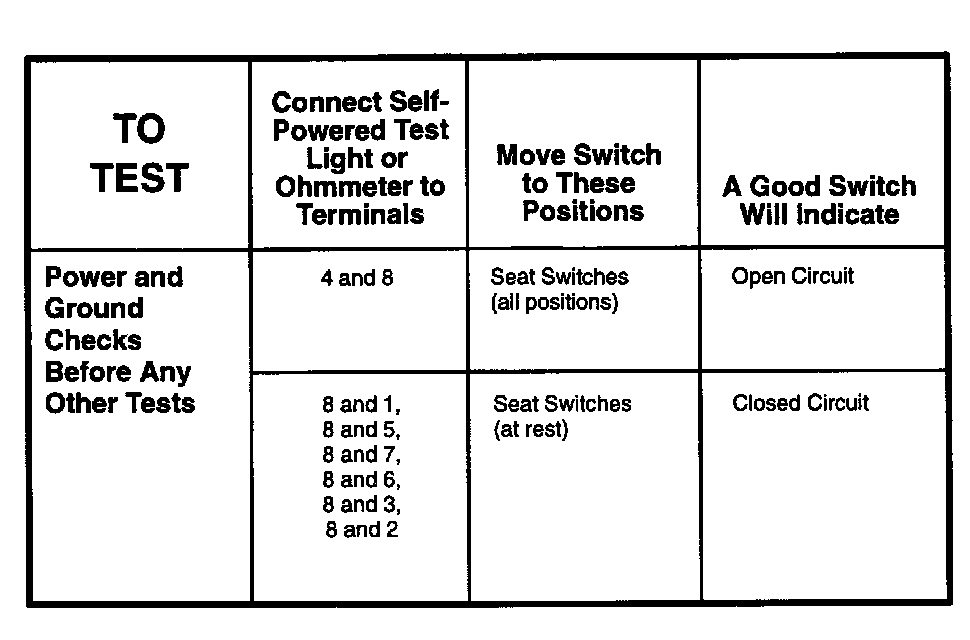

Component Testing Procedure (Part 2 Of 2):

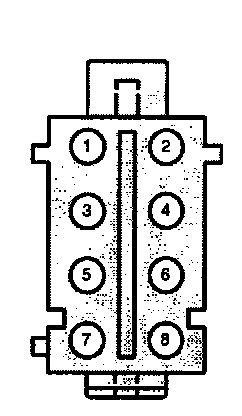

Terminals:

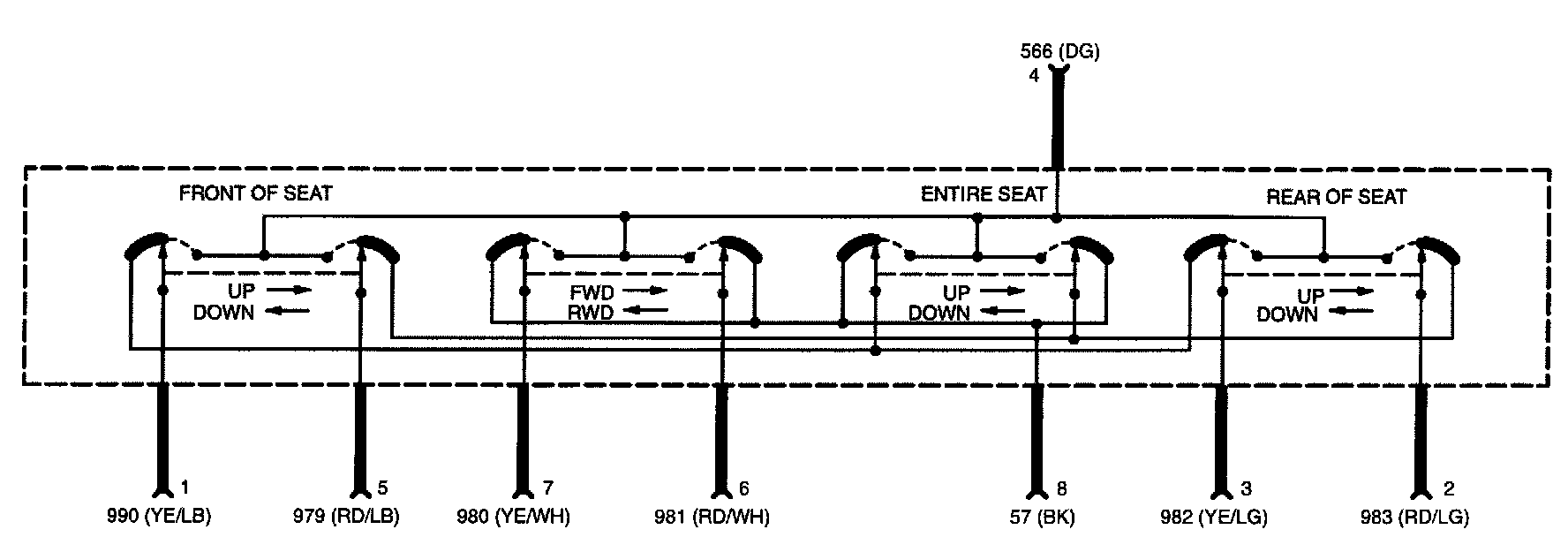

Schematic:
