Removal and Replacement

TRIM PANEL - CORNER, UPPER

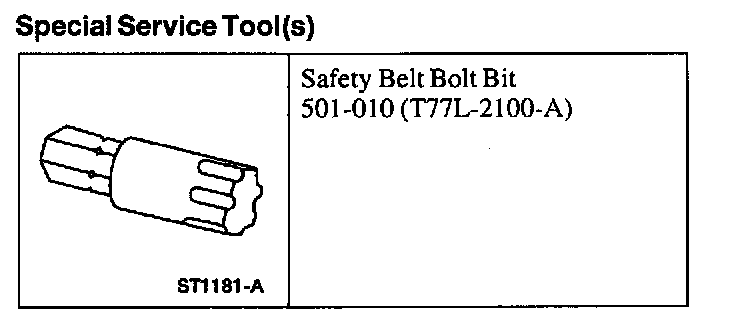

Special Service Tool(s):

Special Service Tool(s)

Removal

NOTE: SuperCab shown, regular cab similar.

1. Remove the rear seat back.

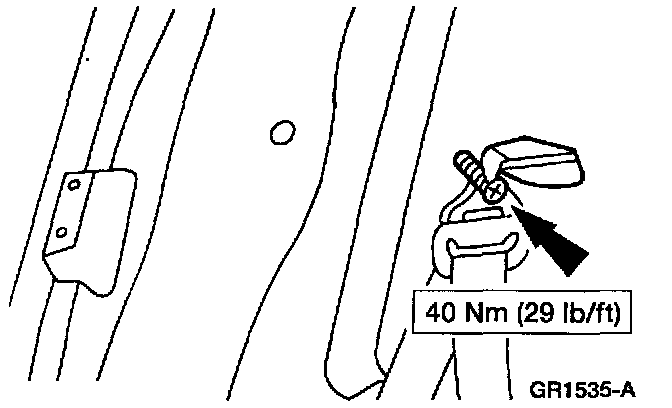

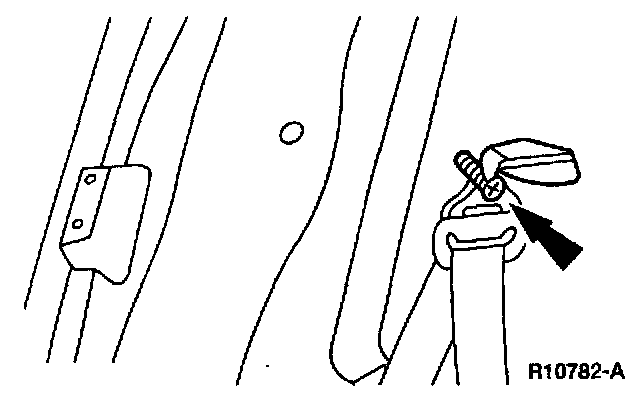

2. Using Safety Belt Bolt Bit, remove the rear seat safety belt D-ring bolt.

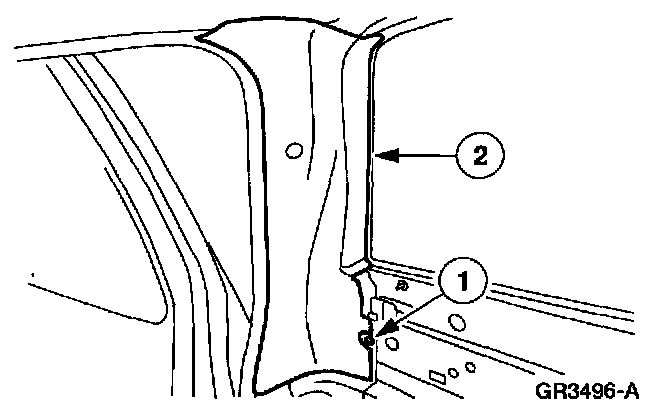

3. Remove the upper comer trim panel.
1 Remove the pin-type retainer.
2 Release the clips and slide the upper comer trim panel out of the retainers and remove.

Installation







1. To install, reverse the removal procedure.
