Removal and Replacement

HEADLINER

Special Service Tool(s):

Special Service Tool(s)

Removal and Installation

All Vehicles
1. If equipped, remove the overhead console.







2. Remove the LH and RH A-pillar passenger assist handles.
1 Remove the four screw covers and four screws.
2 Remove the LH and RH A-pillar passenger assist handles.







3. Remove the LH and RH windshield side garnish mouldings (03598).
4. Remove the coat hooks.

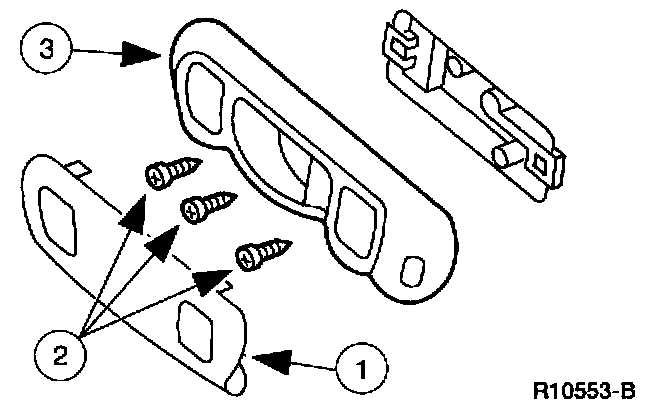

5. Remove the dome lamp.
1 Remove the lens from the dome lamp.
2 Remove the screws.
3 Remove the dome lamp.







6. Remove the LH and RH sun visors.
1 Remove the four screws.
2 Remove the LH and RH sun visors.







7. Remove the LH and RH sun visor clips.
1 Remove the two screws.
2 Remove the LH and RH sun visor clips.

Super Cab Only







8. Disconnect the LH and RH front seat safety belt adjustable D-rings.
1 Pull back the LH and RH covers.
2 Using the special tool, remove the bolts.
3 Disconnect the LH and RH front seat safety belt adjustable D-rings.

Regular Cab and Super Cab Only
9. Remove the upper comer C-pillar trim panels.

All Vehicles
10. Remove the headliner.
11. To install, reverse the removal procedure.
