Cluster Finish Panel

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

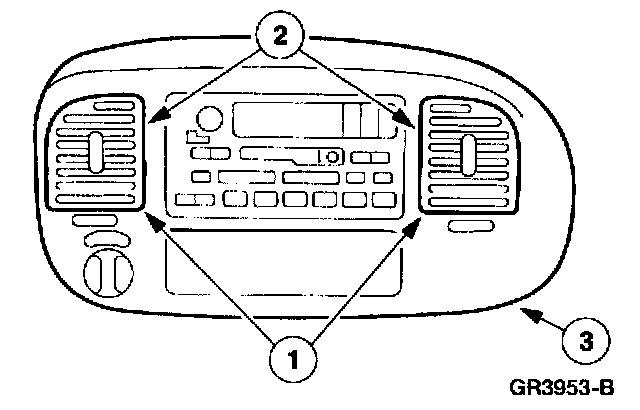

2. Remove the center instrument panel finish panel.
1 Rotate the center instrument panel finish panel vents inward.
2 Through the vent openings, grasp the center instrument panel finish panel and pull outward.
3 Remove the center instrument panel finish panel.
- Disconnect the electrical connectors.

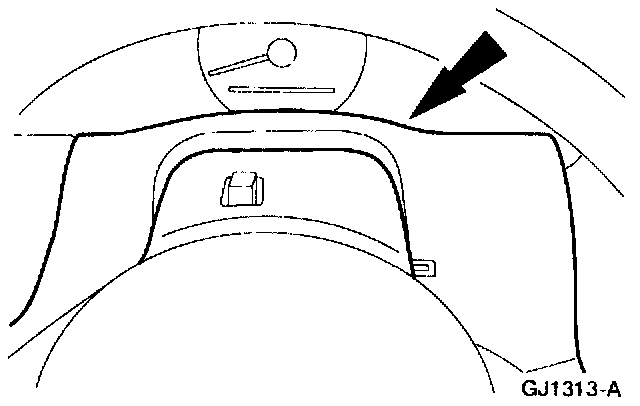

3. Remove the upper steering column cover.
- If equipped, disconnect the bi-fuel tank selector switch.

Note: On automatic transmissions, move the shift lever to the 1 position to make removal easier.

4. Remove the headlamp switch. For additional information, refer to Lighting and Horns.

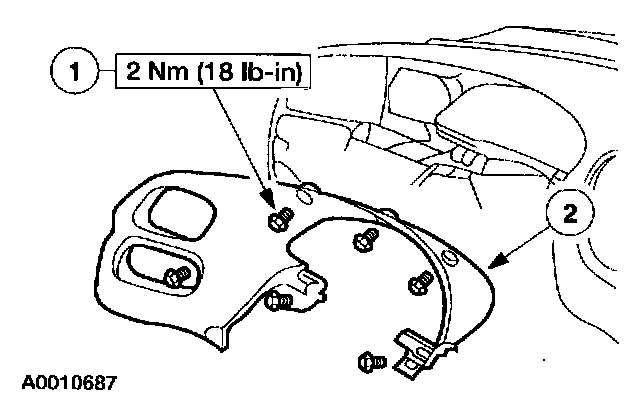

5. Remove the instrument panel finish panel.
1 Remove the screws.
2 Remove the instrument panel finish panel.
- If equipped, disconnect the electrical connector.

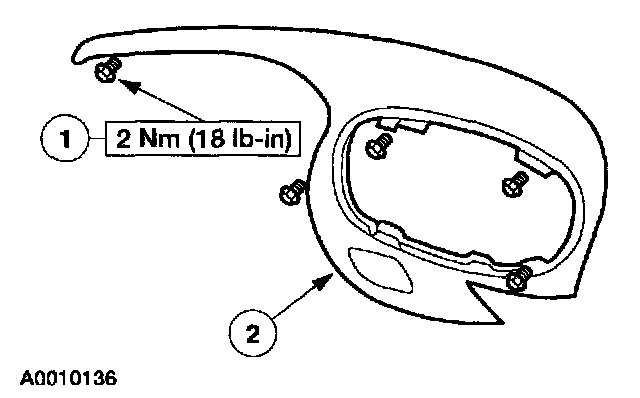

6. Remove the instrument cluster panel.
1 Remove the screws.
2 Remove the instrument cluster panel.

INSTALLATION
1. To install, reverse the removal procedure.
