Console: Service and Repair

REMOVAL
1. Open the floor console cover.
2. If equipped, remove the CD changer. For additional information, refer to Radio, Stereo and Compact Disc.
3. Remove the floor console tray mat.

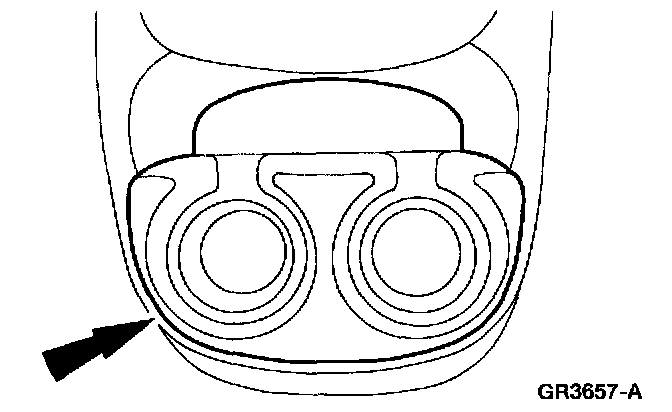

4. Remove the floor console cupholder assembly.

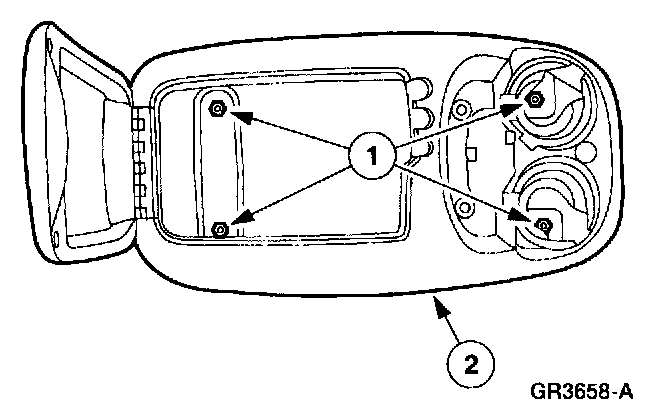

5. Remove the floor console.
1 Remove the nuts.
2 Remove the floor console.
^ Feed the wiring harness through the floor console.

INSTALLATION

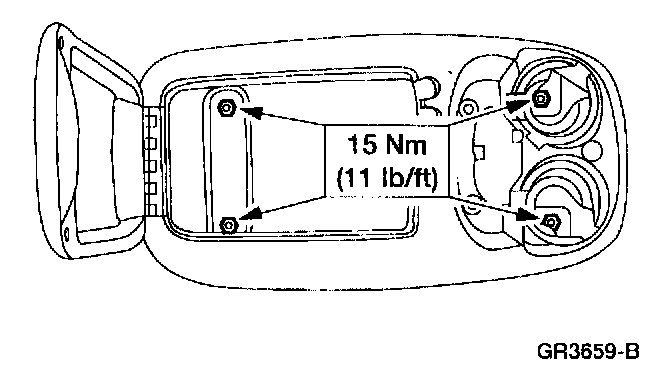

1. To install, reverse the removal procedure.
