Radiator Grille

RADIATOR GRILLE

Removal
1. Raise and support the hood (16612).
2. Remove the service jack handle.







3. Remove the front upper air deflector (19E525).

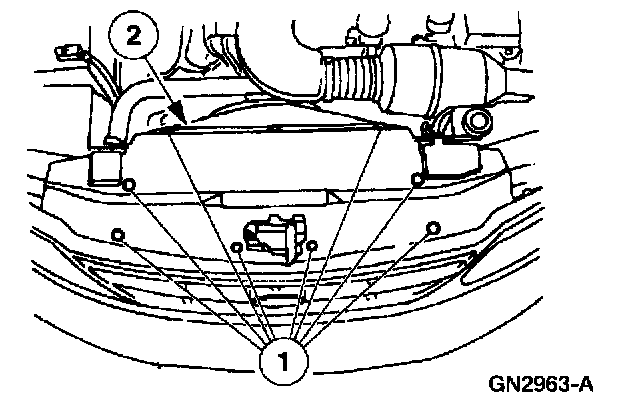

1 Remove the screws.
2 Remove the front upper air deflector.

4. Remove the headlamps (13008).
5. Remove the combination lamps.

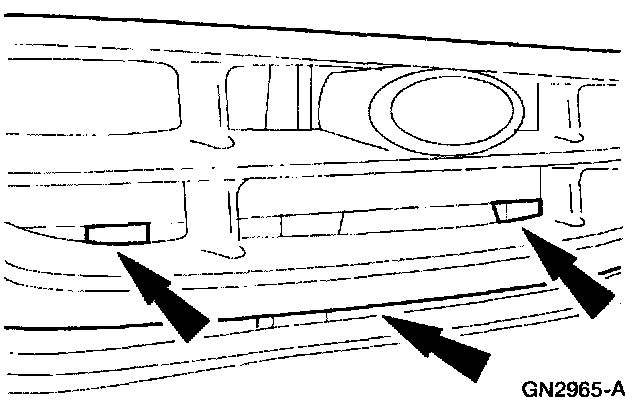

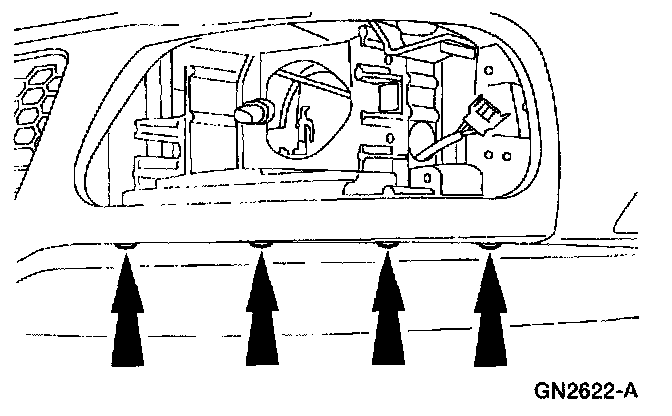

6. Remove the eight stone guard pin-type retainers (four on each side).

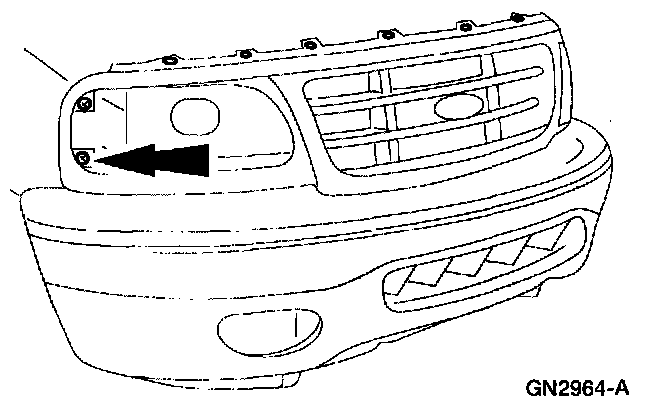

7. Remove the ten radiator grille screws.







8. Remove the radiator grille (8200).
- Release the clips from the radiator grille opening panel reinforcement.

Installation







1. NOTE: Install the screws in the sequence indicated.

To install, reverse the removal procedure.
- Use the locating notch to position the radiator grille on the radiator grille opening panel reinforcement.
