Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL

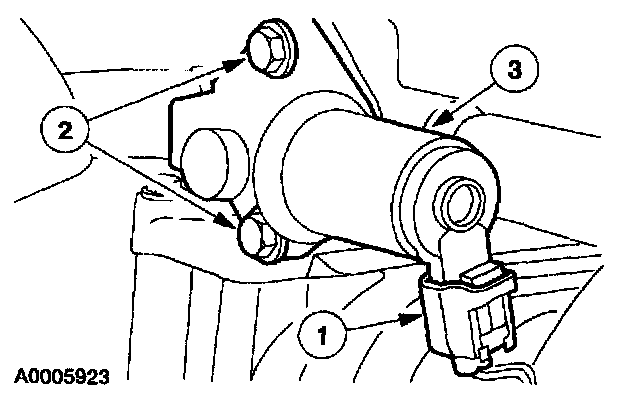

1. Remove the Idle Air Control (IAC) valve.
1 Disconnect the electrical connector.
2 Remove the bolts.
3 Remove the IAC valve.

INSTALLATION

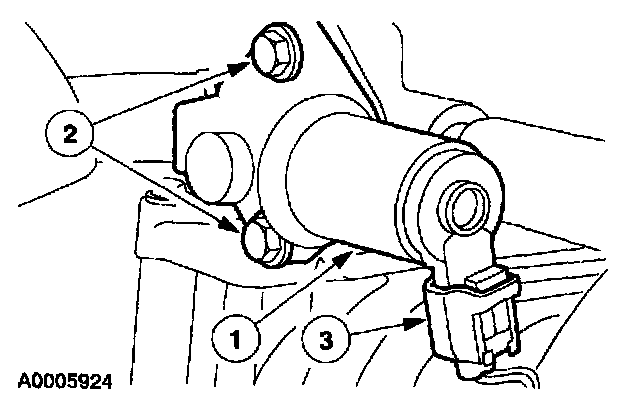

1. Install the IAC valve.
1 Position the IAC valve.
2 Install and tighten the bolts in two stages.
^ Stage 1: Tighten the bolts to 9 Nm.
^ Stage 2: Tighten the bolts an additional 90 degrees.

3 Connect the electrical connector.
