Drive Belt: Service and Repair

Belt - Lightning

Removal

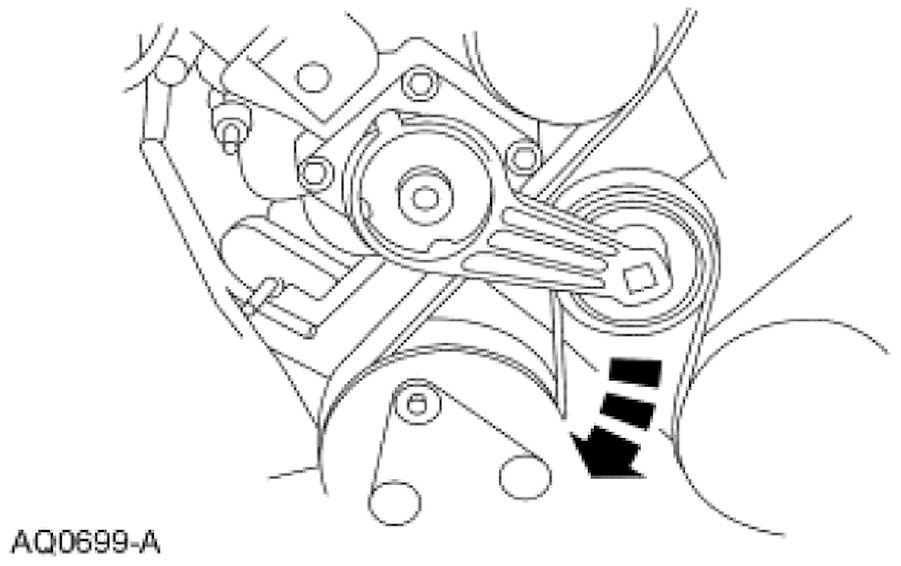

1. Rotate the tensioner clockwise and remove the supercharger drive belt.
2. Remove the fan blade and the fan shroud. Cooling System
3. Remove the auxiliary supercharger crankshaft pulley. Harmonic Balancer - Crankshaft Pulley

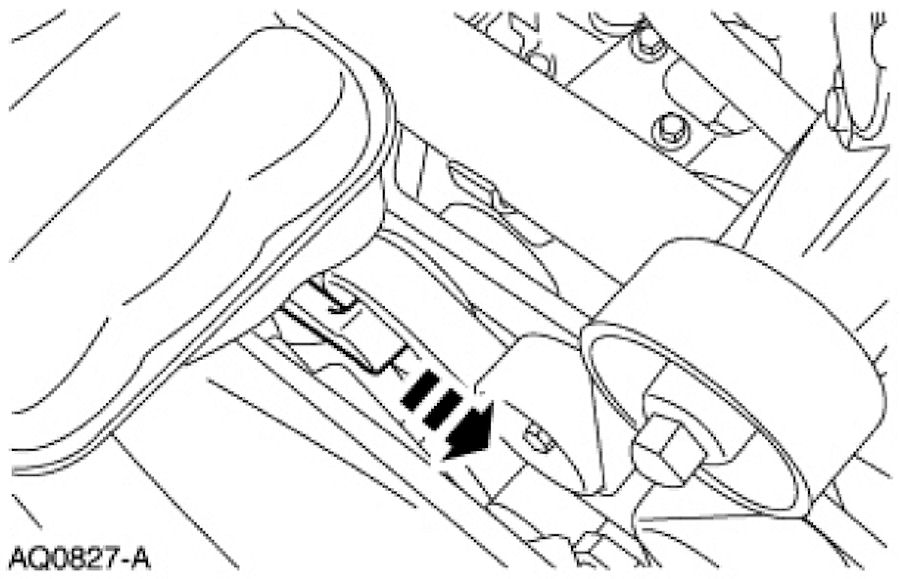

4. Rotate the tensioner clockwise and remove the accessory drive belt.

Installation

1. To install, reverse the removal procedure.
