L: Code 7 - No Isolation Solenoid During Self-Check
L: Code 7 - No Isolation Solenoid During Self-Check
TEST L: CODE 7 - NO ISOLATION SOLENOID DURING SELF-CHECK

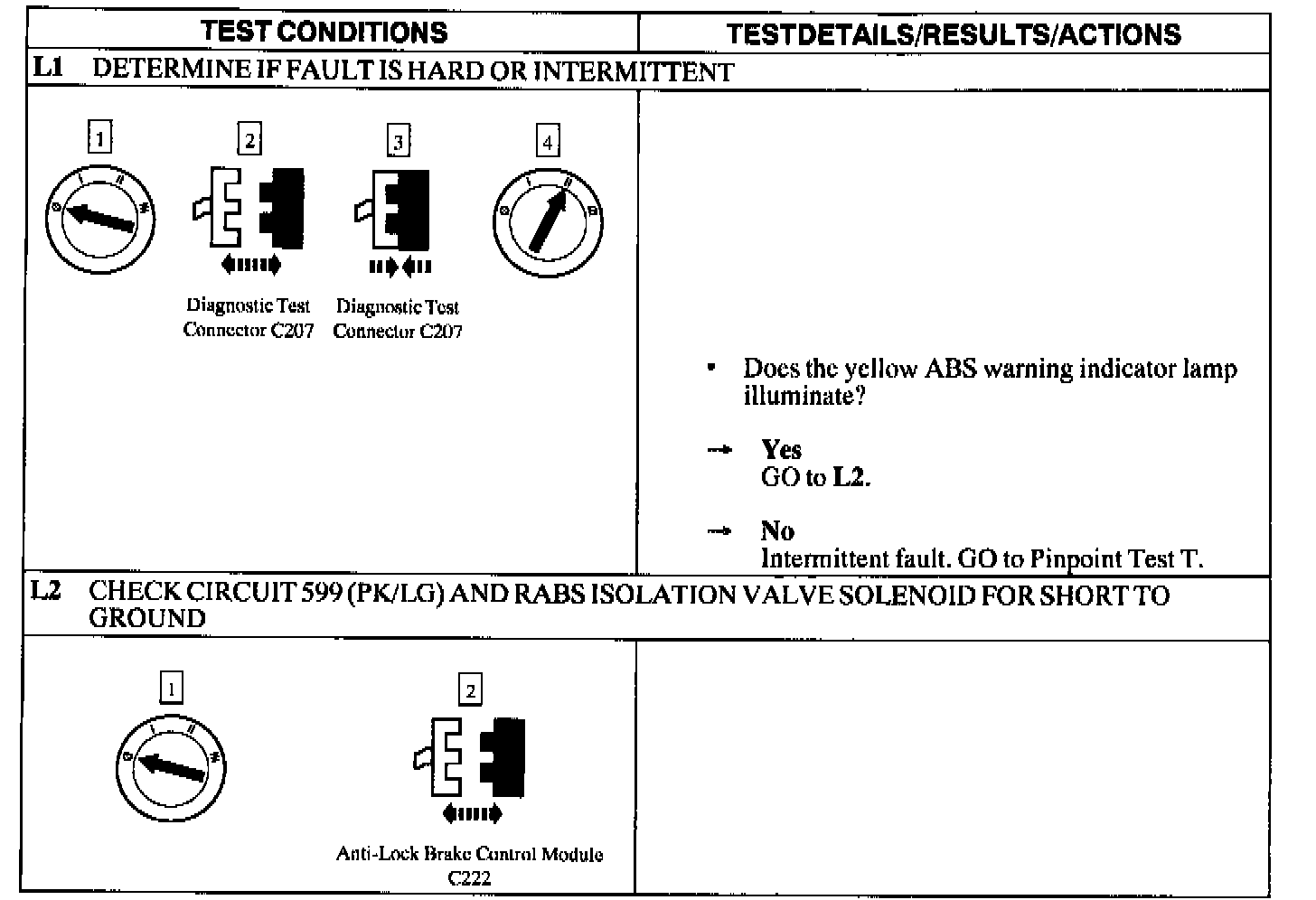

Test L1-L2:

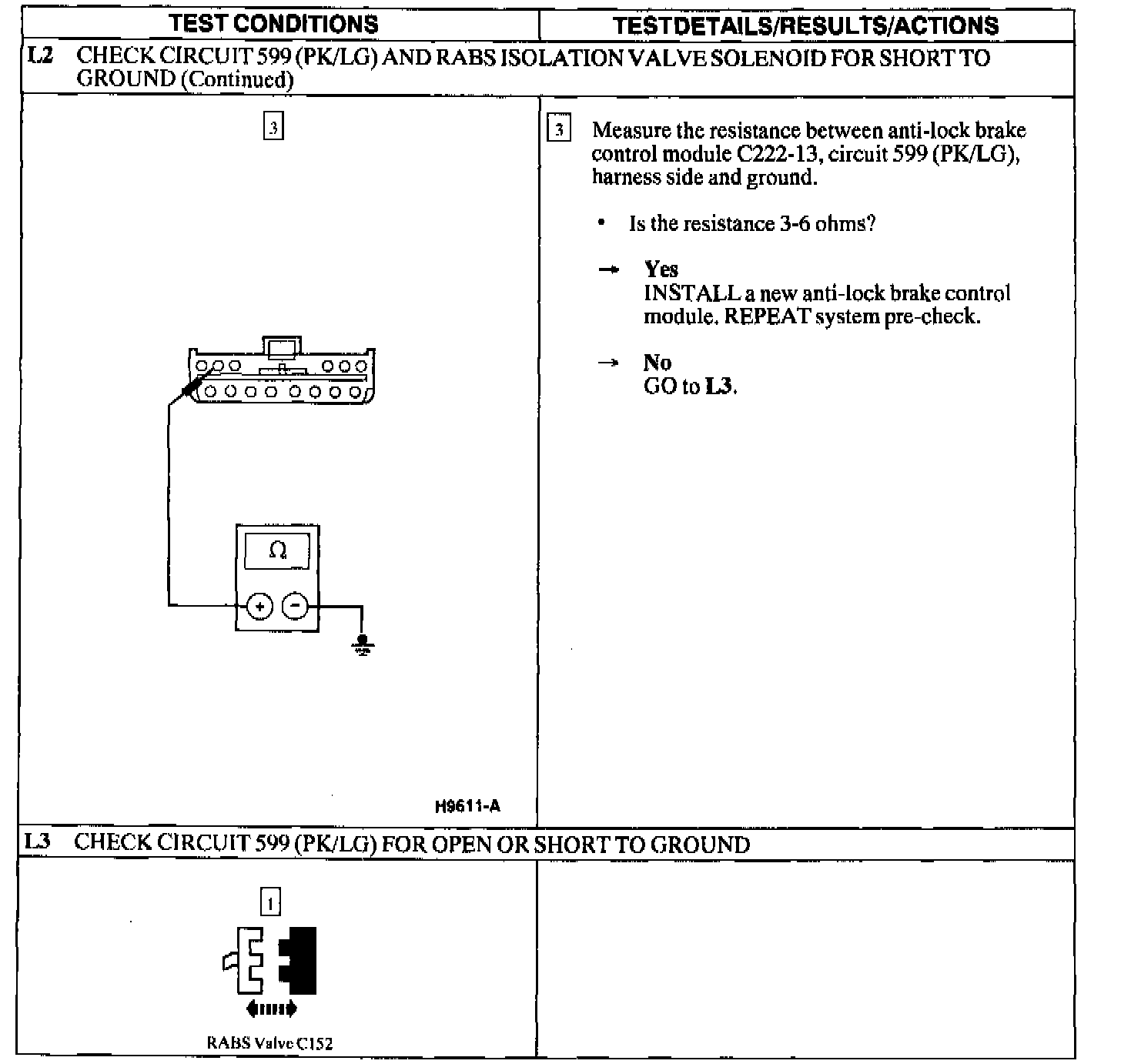

Test L2-L3:

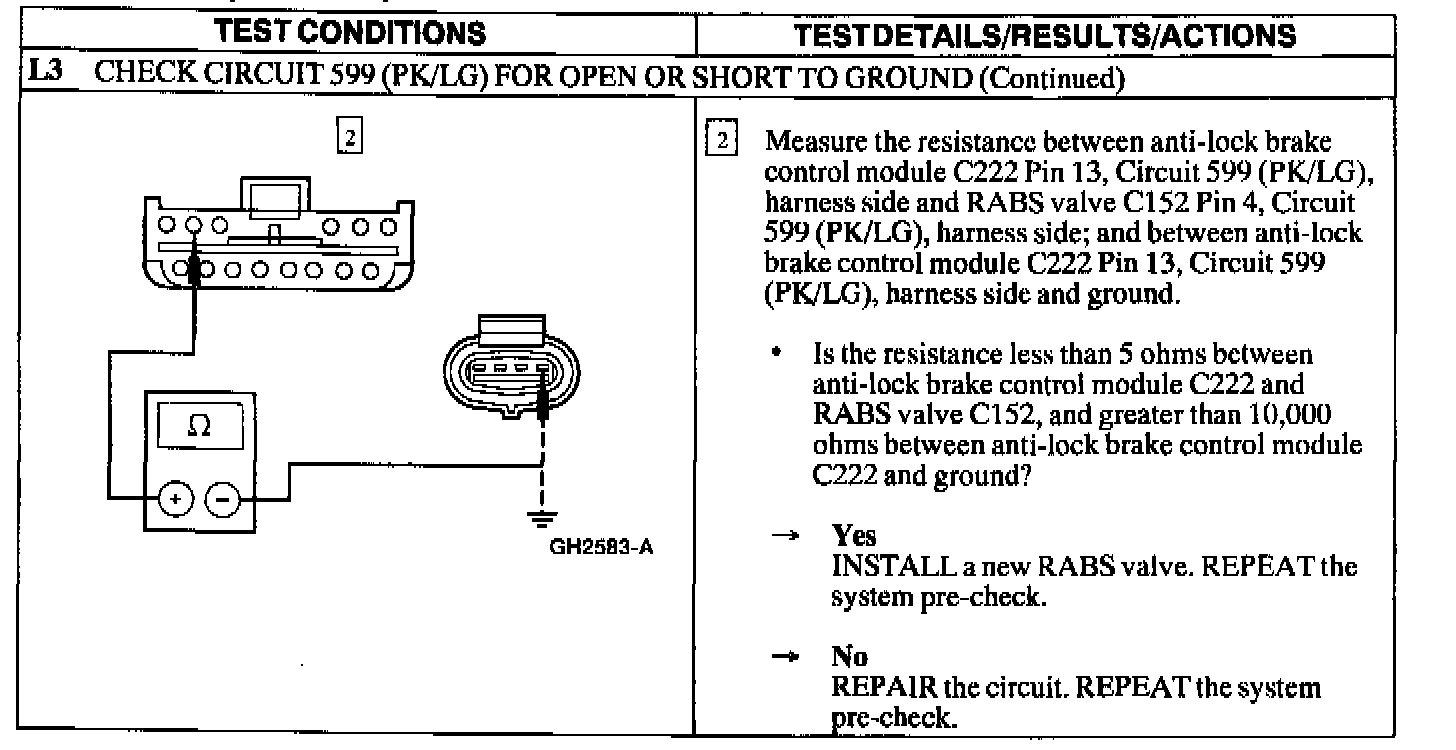

Test L3 (Continued):
