Ford Truck
>>
2000
>>
Explorer 2WD V8-302 5.0L VIN P SFI
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Power window Switch
>>
Right Rear
Right Rear

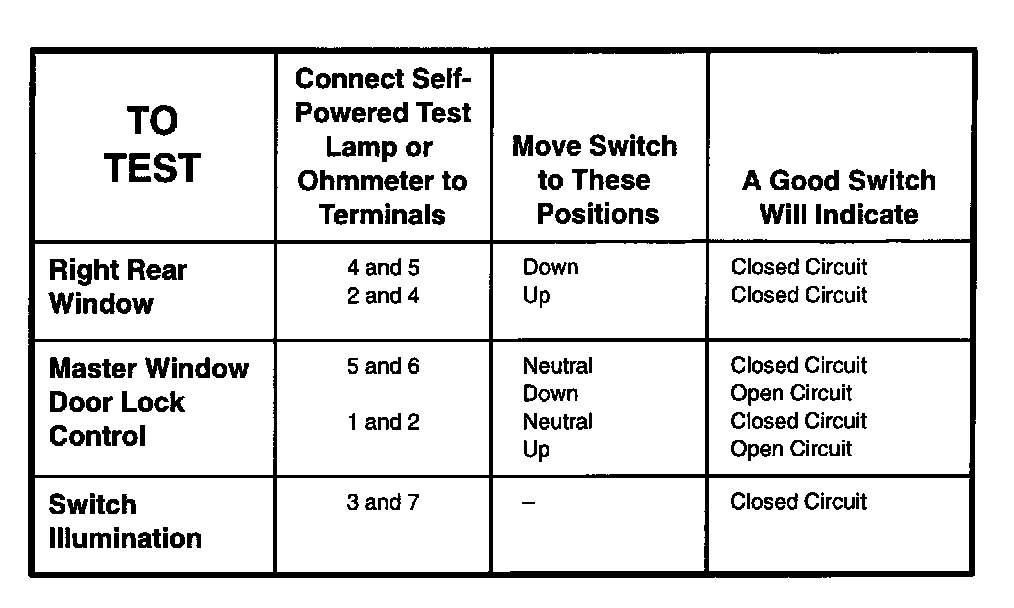

Component Testing Procedure:

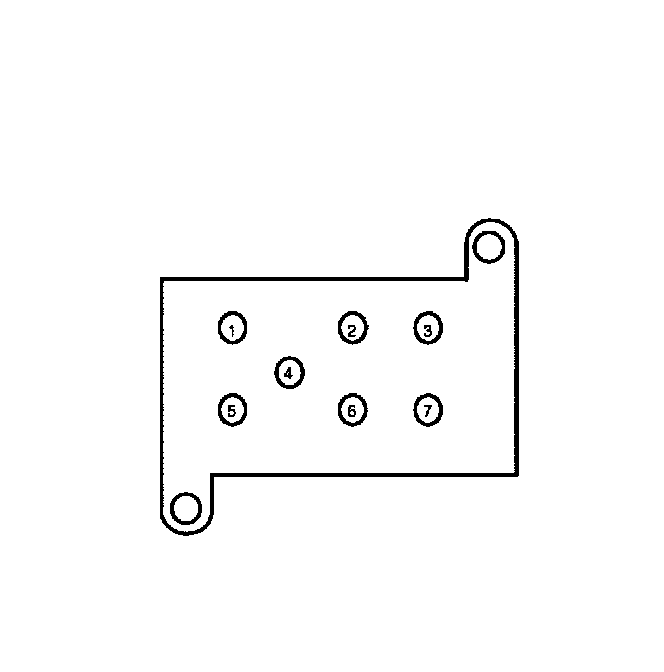

Terminals:

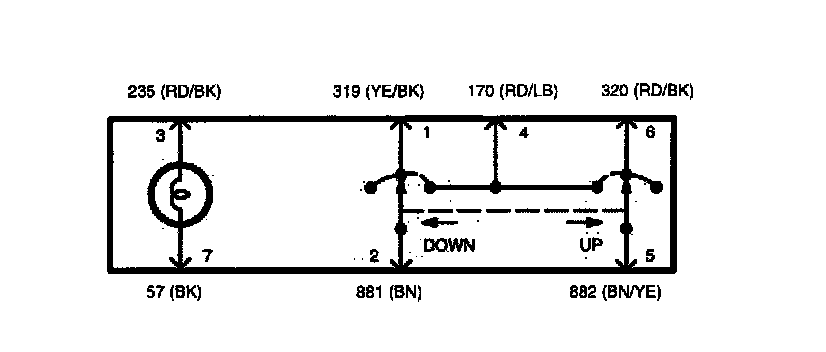

Schematic:
