Home >> Ford Truck >> 2000 >> Explorer 2WD V8-302 5.0L VIN P SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Fitting HVAC >> Locations

Compressor Fitting HVAC: Locations

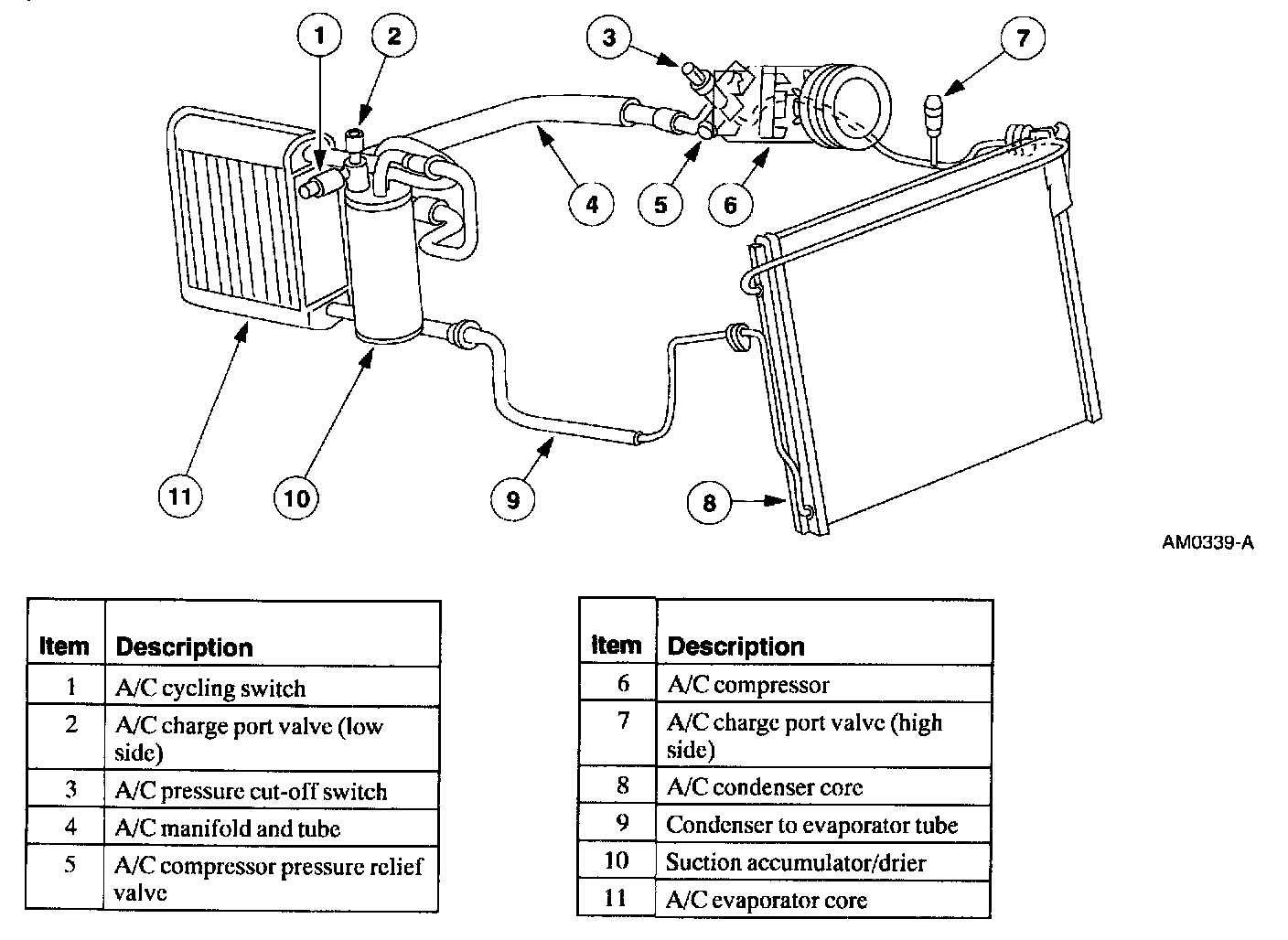

Refrigeration System Components - 4.0L (5.0L Similar):
