Ford Truck
>>
2000
>>
Explorer 2WD V8-302 5.0L VIN P SFI
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Diagrams
Engine: Diagrams

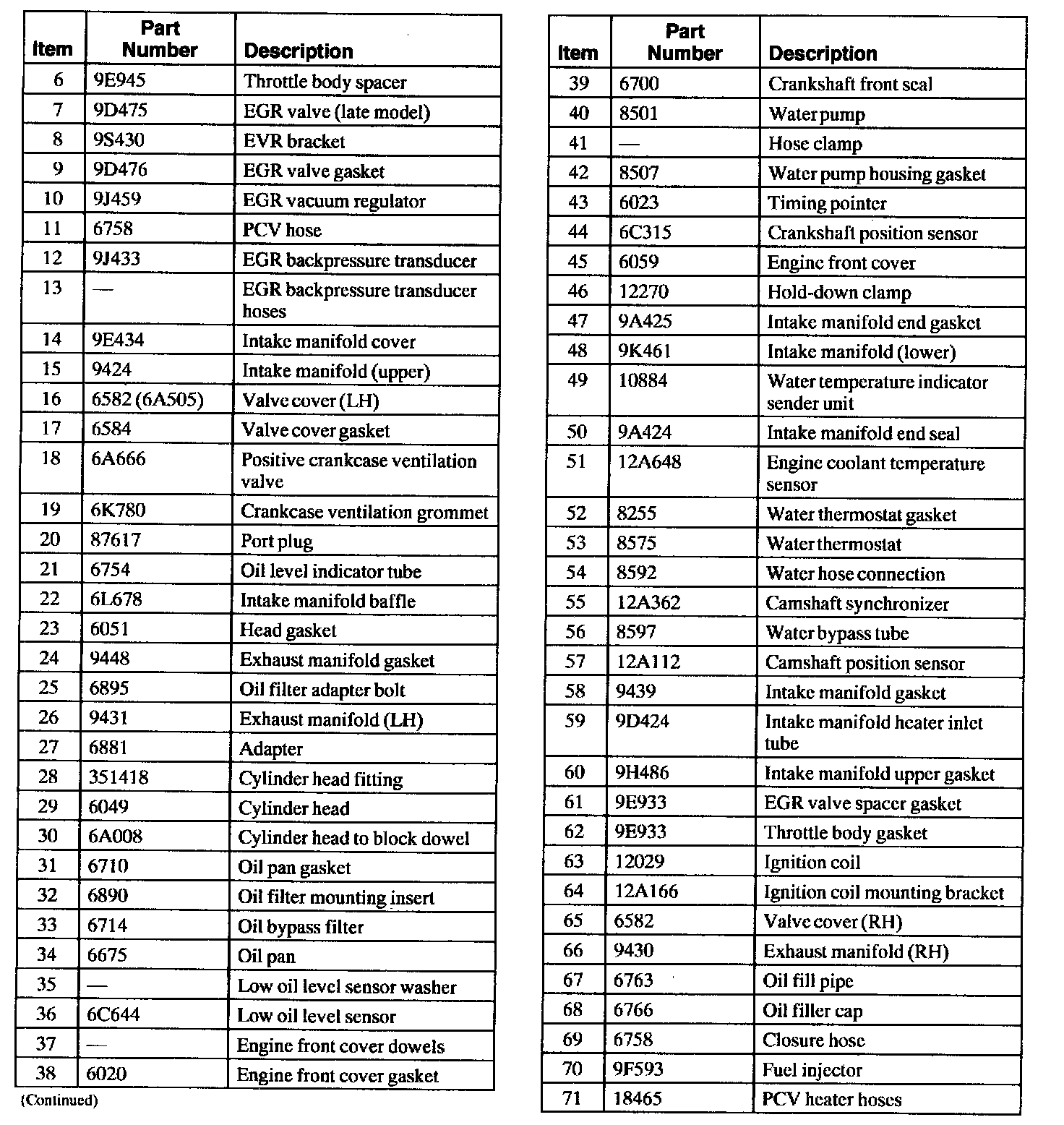

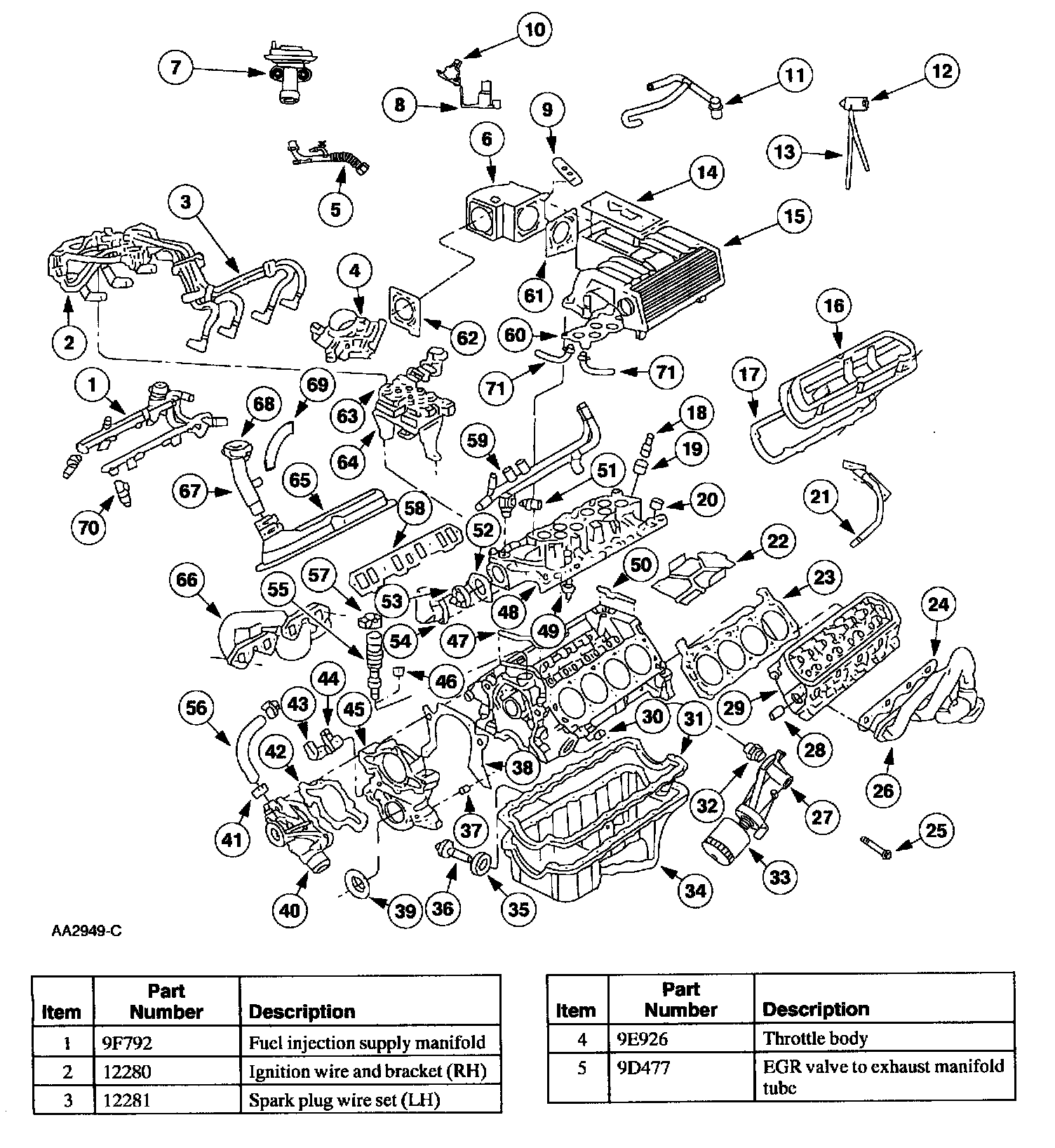

External Components

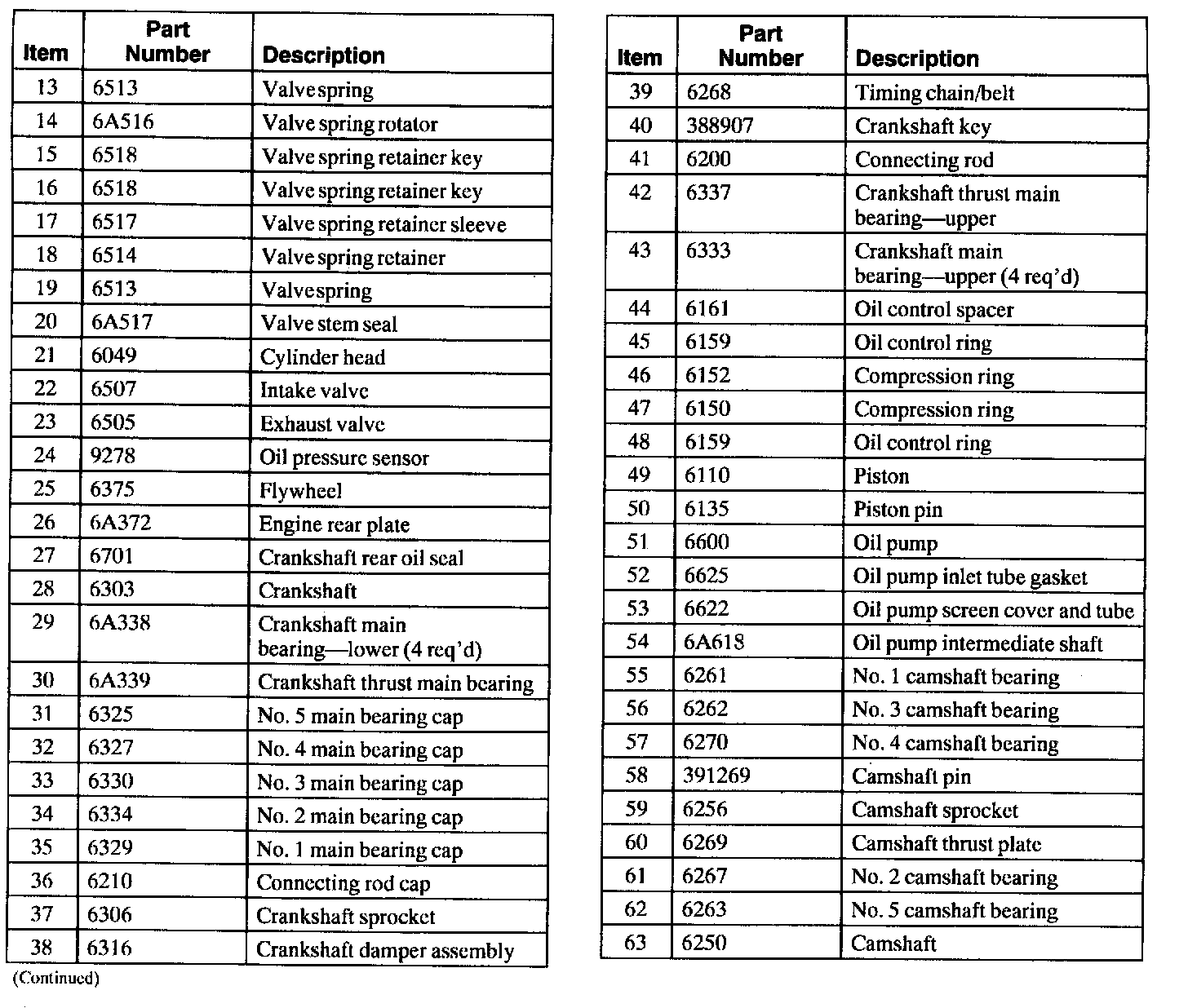

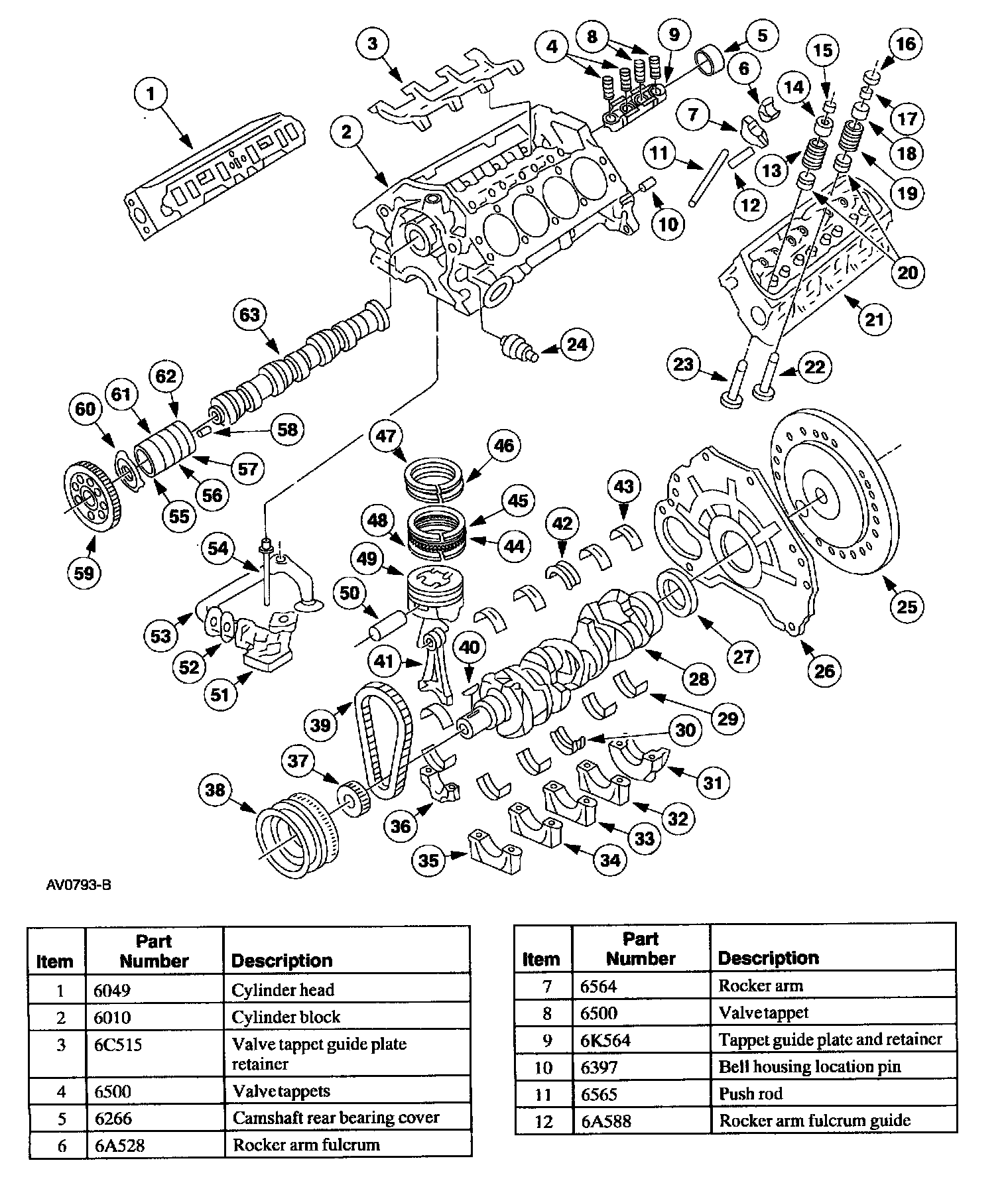

Internal Components
