Cable

REMOVAL

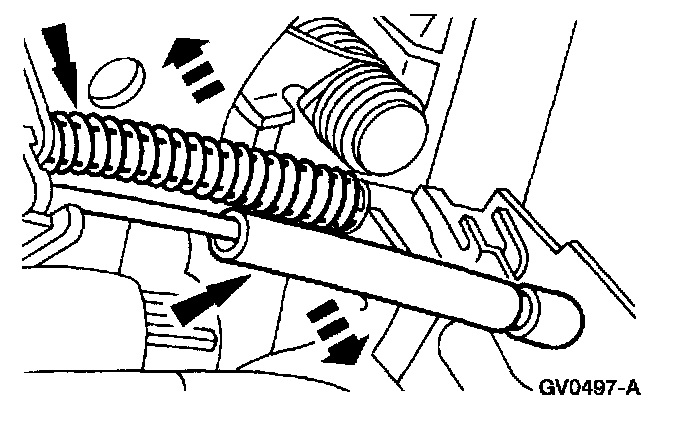

1. Disconnect the accelerator cable from the accelerator pedal and shaft.

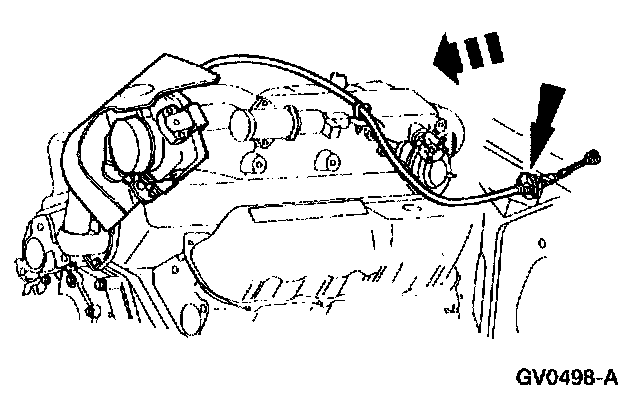

2. Collapse the clips at the dash panel and push the accelerator cable through the dash panel into the engine compartment.

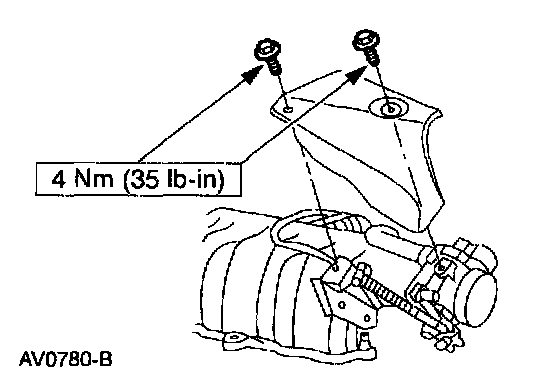

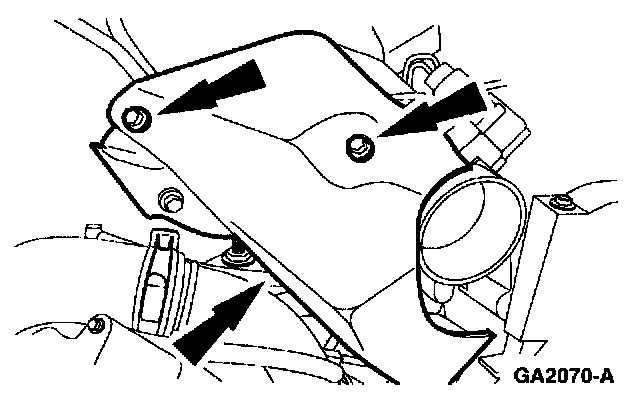

3. Remove the two bolts and the accelerator control splash shield.

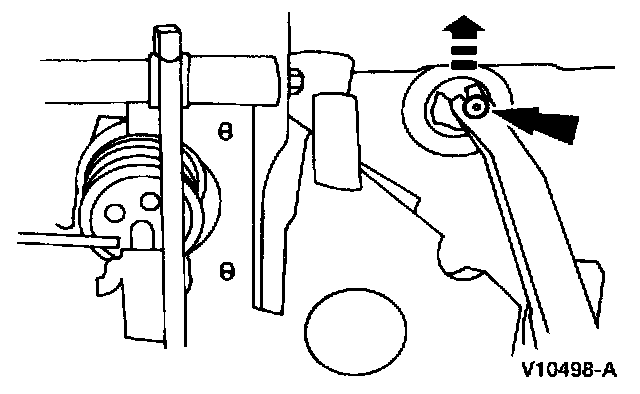

4. Disconnect the accelerator cable from the throttle body.

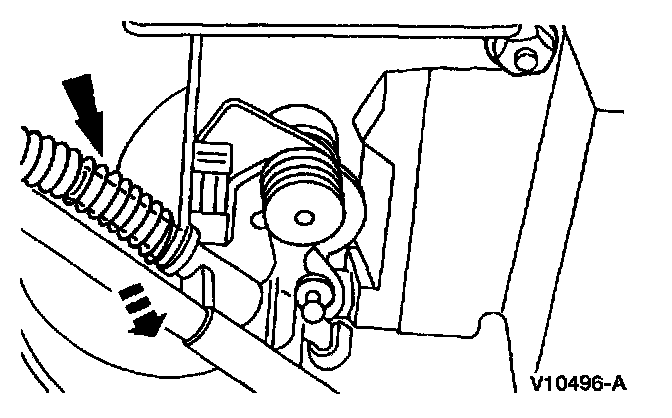

5. Separate the accelerator cable from the speed control actuator cable.







6. Remove the accelerator cable.

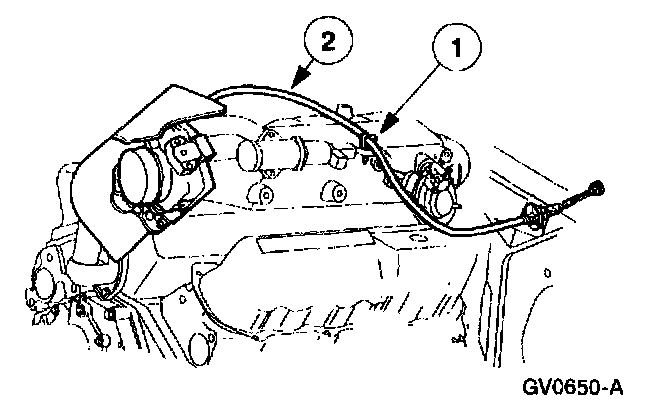

1 Remove the accelerator cable from the guide clip.
2 Remove the accelerator cable.


INSTALLATION







1. To install, reverse the removal procedure.

NOTE: The accelerator cable should be routed over the air conditioning lines and under the power brake and speed control vacuum hoses.
