Upper

REMOVAL
1. Remove the EGR valve.







2. Remove the nut and position the oil level indicator tube aside.







3. Remove the upper EGR tube retaining stud bolt.







4. Remove the upper EGR tube.

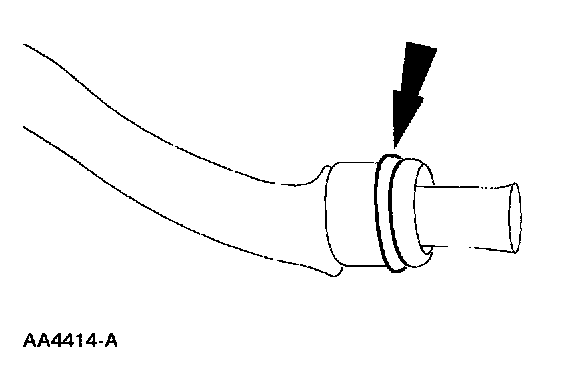

^ Inspect the O-ring seal and install a new O-ring seal if necessary.

INSTALLATION
1. To install, reverse the removal procedure.
