Rear Door Window Glass: Service and Repair

REMOVAL
1. Remove the rear door trim panel.
2. Remove the rear door radio speaker.
3. Remove the rear door watershield.

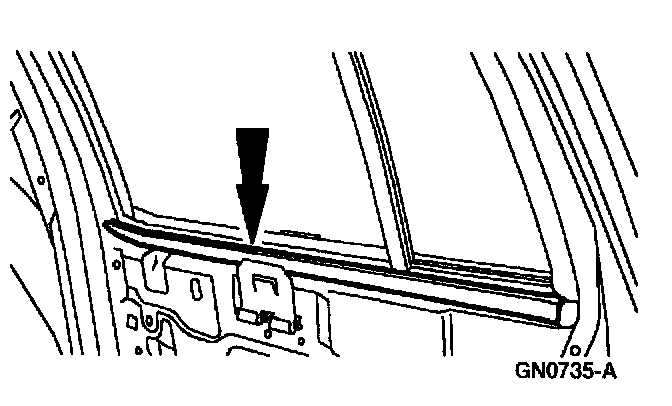

4. Remove the inside glass weatherstrip.

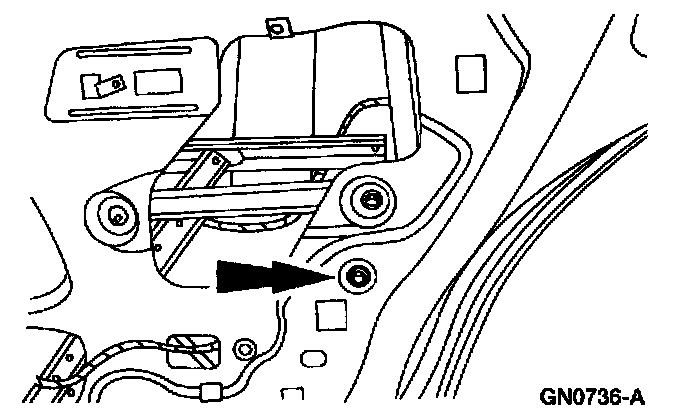

5. Remove the rear door glass channel lower bolt.

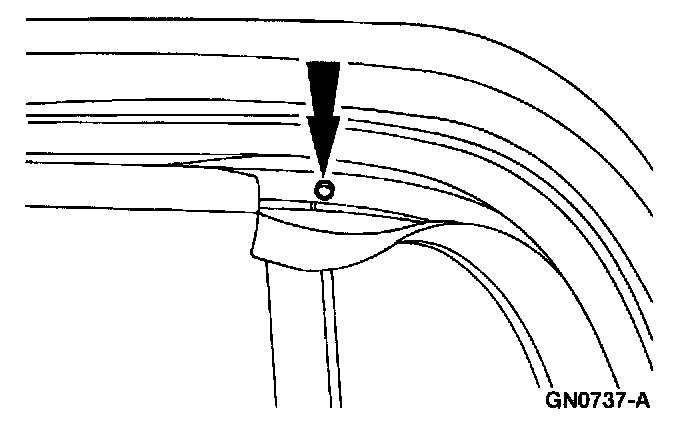

6. Remove the rear door fixed vent screw.

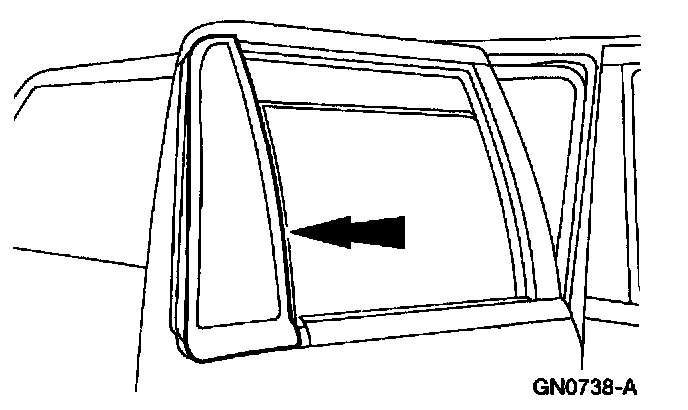

7. Lift the rear door rear glass and channel away from the door glass.







8. Remove the window glass to regulator nuts.
9. Remove the rear door glass.

NOTE: Slide the glass through the outboard side of the door.


INSTALLATION

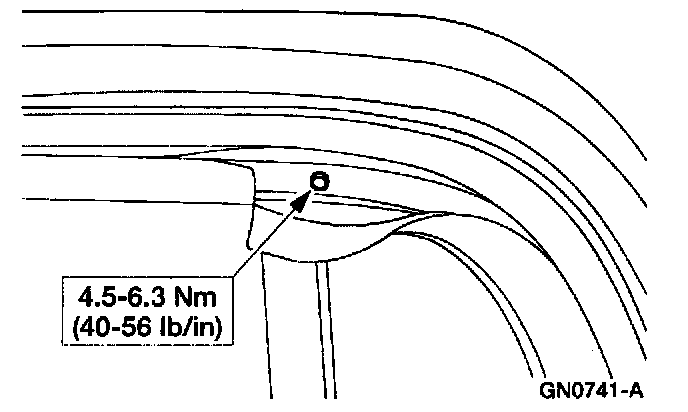

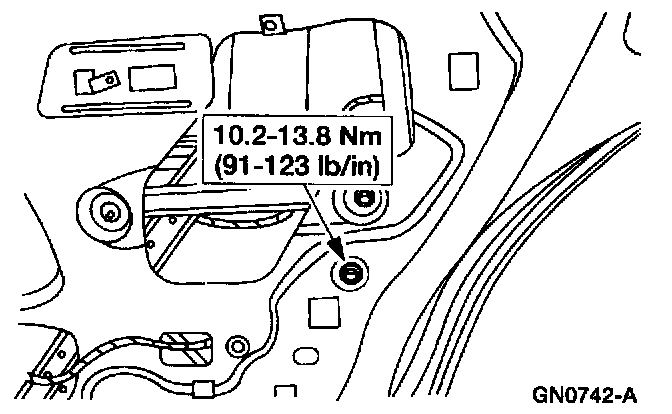

1. To install, reverse the removal procedure.
