Front

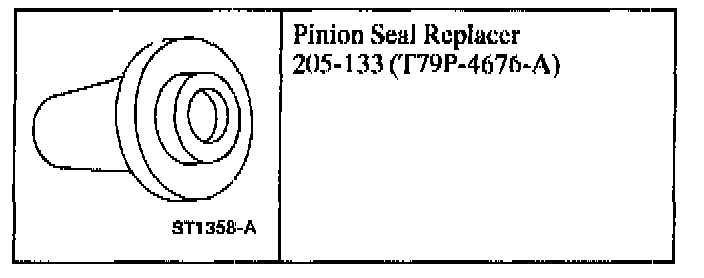

Special Tools:

Removal
1. Remove the front axle universal joint flange.

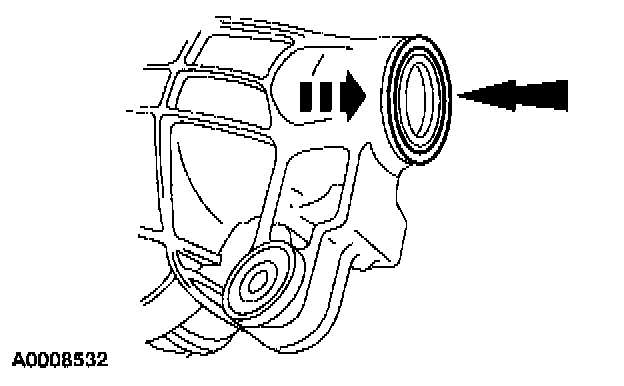

2. CAUTION: Do not damage the front axle housing.

Remove the pinion seal.

Installation

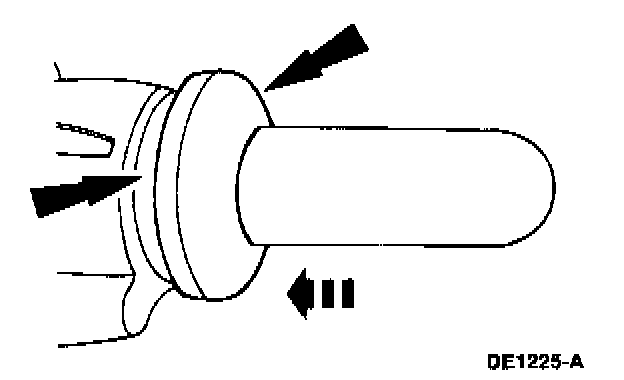

1. Clean the pinion seal bore, and use the Pinion Seal Replacer to install the pinion seal.
2. Install the from axle universal joint flange.
