Transmission Mount: Service and Repair

Special Tools:

Removal
1. Note: All gasoline vehicles will have new adaptive shift strategies. Whenever the vehicle's battery has been disconnected for any type of service or repair the strategy parameters that are stored in the Keep Alive Memory (KAM) will be lost. The strategy will start to relearn once the battery is reconnected and the vehicle is driven. This is a temporary condition and will return to normal operating condition once the Powertrain Control Module (PCM) relearns all the parameters from the driving conditions. There is no set time frame for this process. If this concern is present during downshifts or converter clutch apply, it is not the fault of the shift strategy and will require diagnosis.

The customer needs to be notified that they may experience slightly different upshifts either soft or firm and that this is a temporary condition and will eventually return to normal operating condition.

Disconnect the battery ground cable.
2. Raise the vehicle on a hoist.

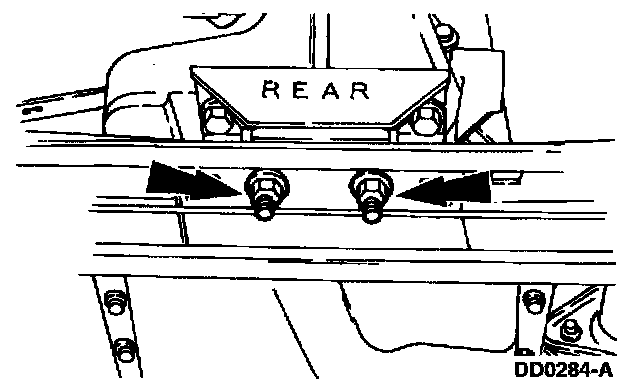

3. Remove the nuts.

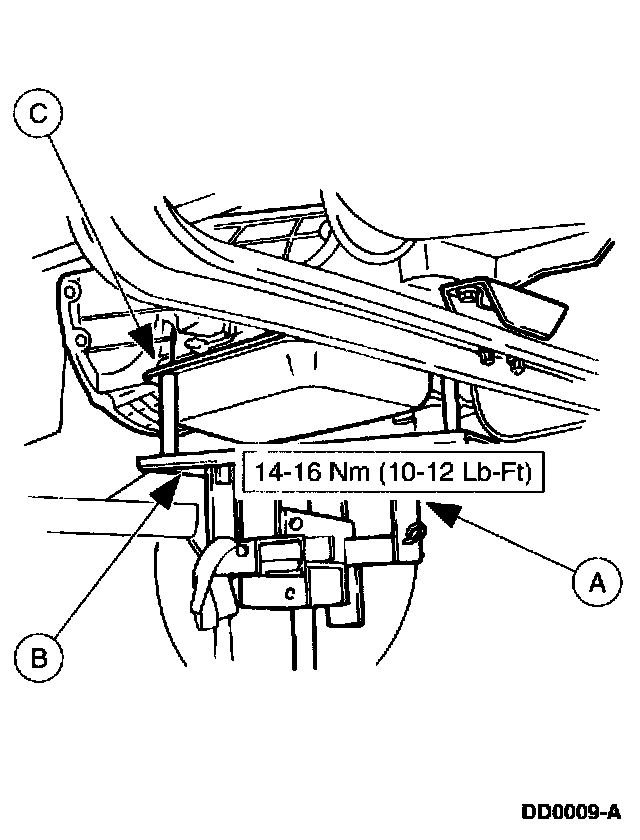

4. Secure the (A) High Lift Transmission Jack with the (B) E40D Transmission Jack Adapter to the (C) transmission.





5. CAUTION: Be sure not to raise the back of the transmission too high, if it makes contact with the underbody, damage to the TSS and OSS sensors will occur.

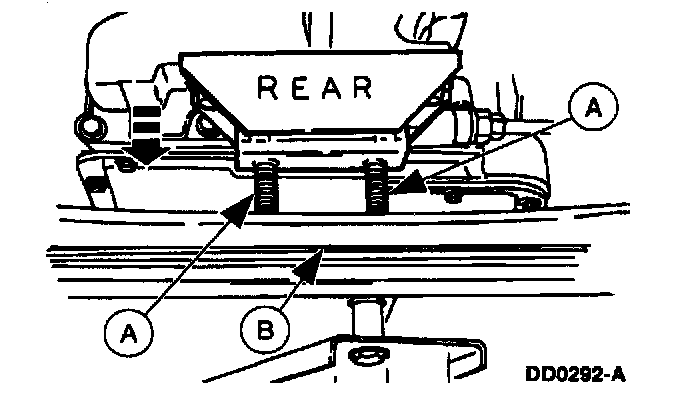

Raise the transmission jack until the (A) retainer studs are separated from the (B) transmission support crossmember.

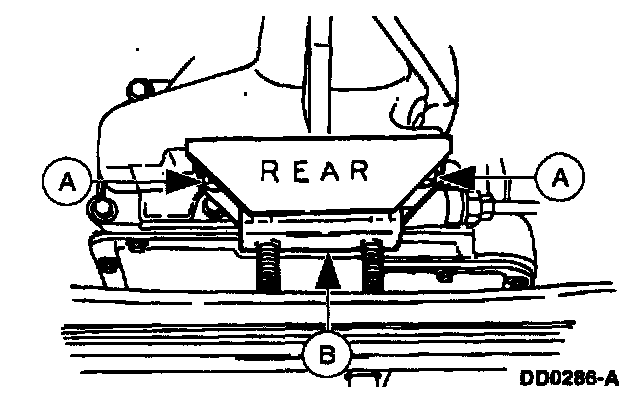

6. Remove the (A) bolts and the (B) retainer.

Installation





1. Install the (A) retainer and the (B) bolts.





2. Lower the transmission jack while aligning the (A) retainer studs with the holes in the (B) transmission support crossmember. Allow the full weight of the transmission to rest on the transmission support crossmember





3. Install the nuts.

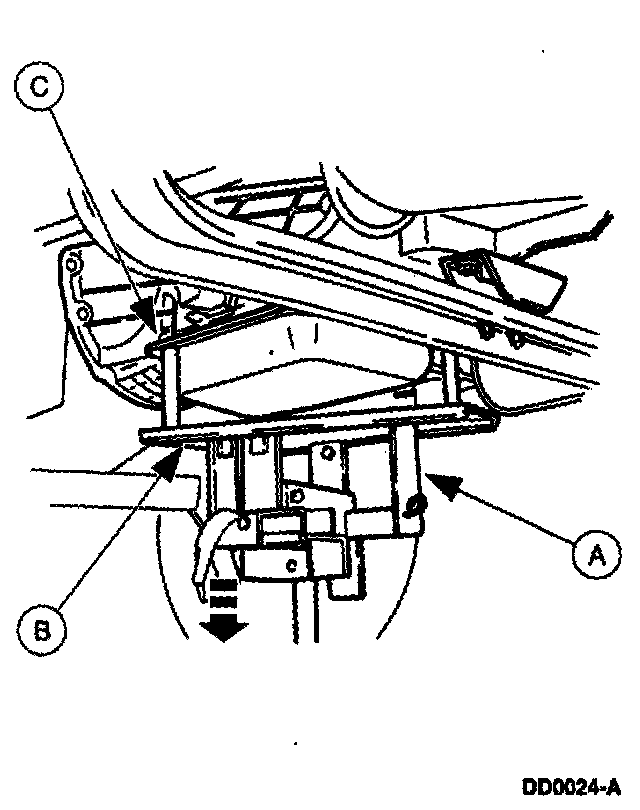

4. Remove the (A) High Lift Transmission Jack with the (B) E40D Transmission Jack Adapter from the (C) transmission.

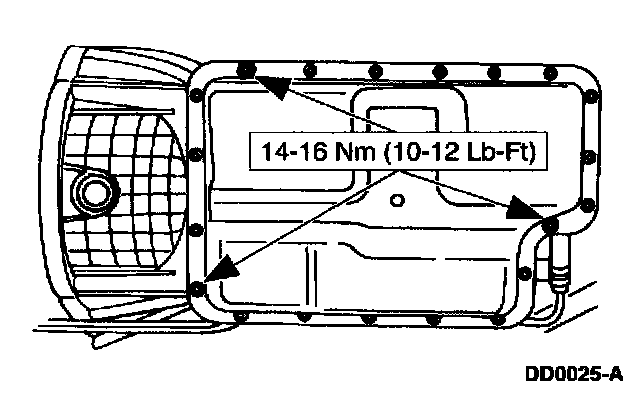

5. Reinstall the transmission fluid pan-to-case retaining bolts removed to install the jack adapter.
6. Lower the vehicle.
7. Connect the battery ground cable.
