Blower Motor - Center Console

Blower Motor - Center Console

REMOVAL
1. Remove the floor console. Refer to: Body and Frame, Interior Trim, Console, Service and Repair, Service and Repair

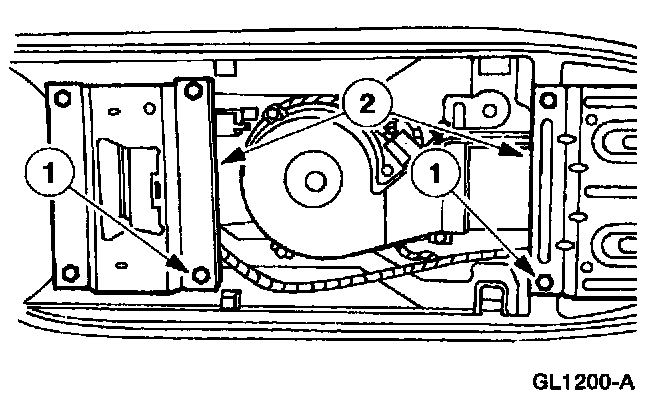

2. Remove the floor console support braces.
1 Remove the eight screws.
2 Remove the braces.

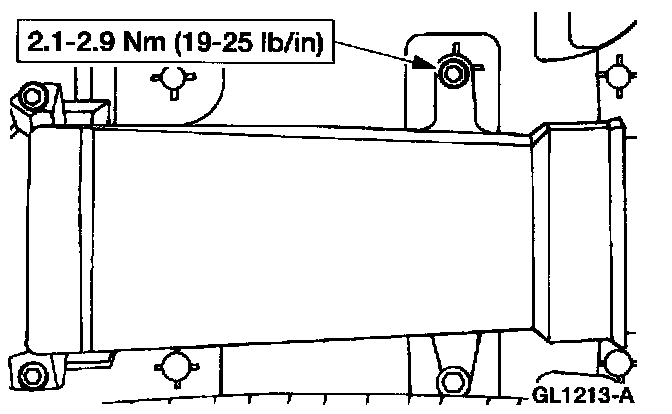

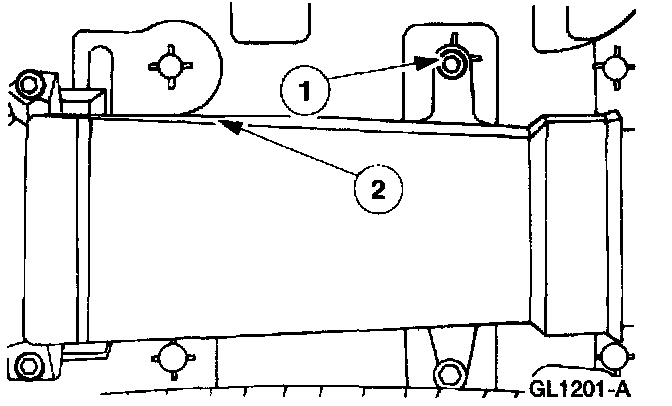

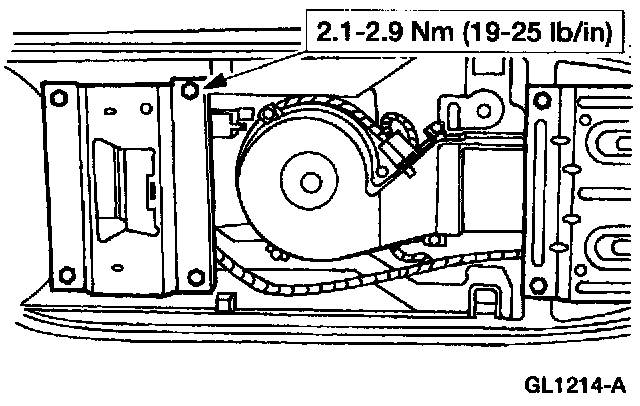

3. Remove the blower motor duct.
1 Remove the screws.
2 Remove the duct.

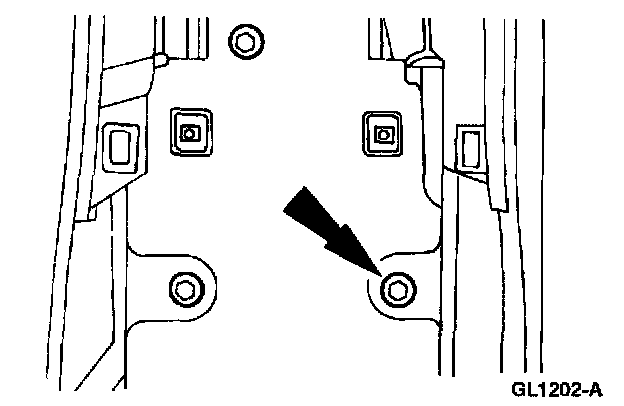

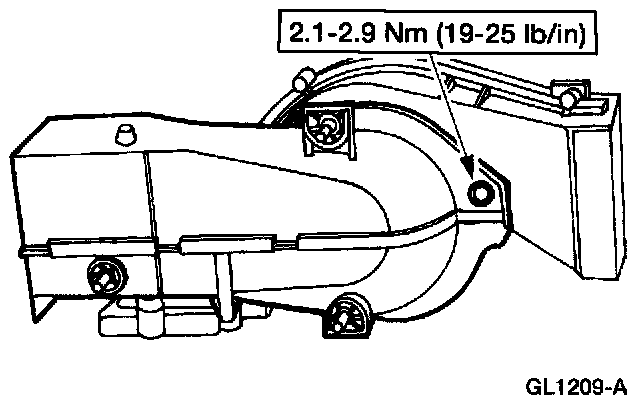

4. Remove the blower motor assembly.
1 Remove the three nuts.
2 Remove the blower motor from the bottom of the console.

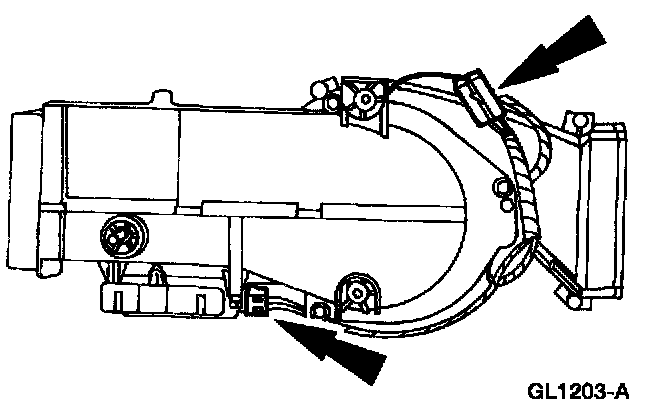

5. Disconnect the harness connectors.

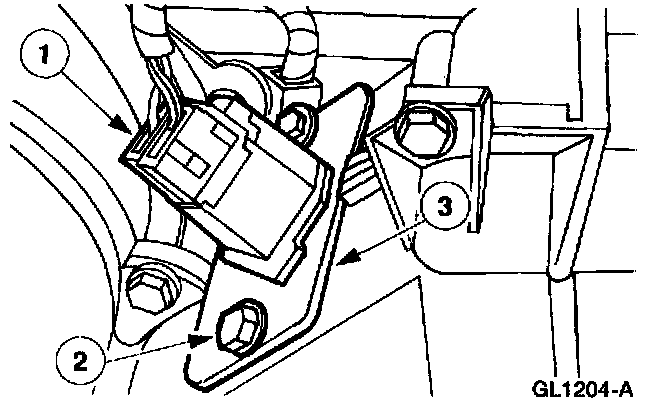

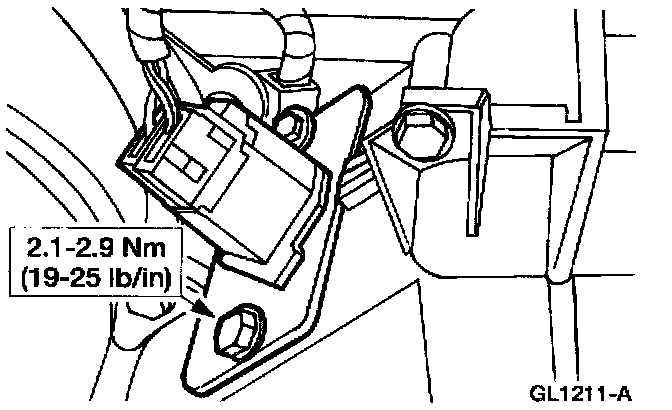

6. Remove the blower motor resistor.
1 Disconnect the connector.
2 Remove the bolts.
3 Remove the resistor.

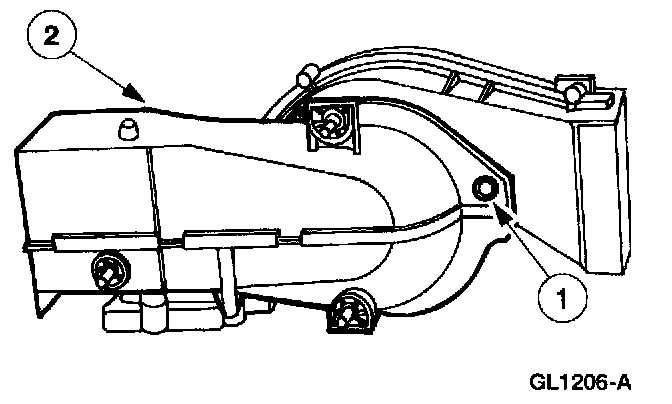

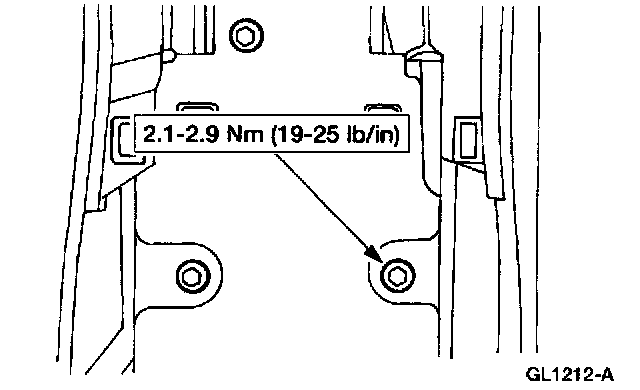

7. Remove the blower motor lower duct cover.
1 Remove the five screws.
2 Remove the duct cover.

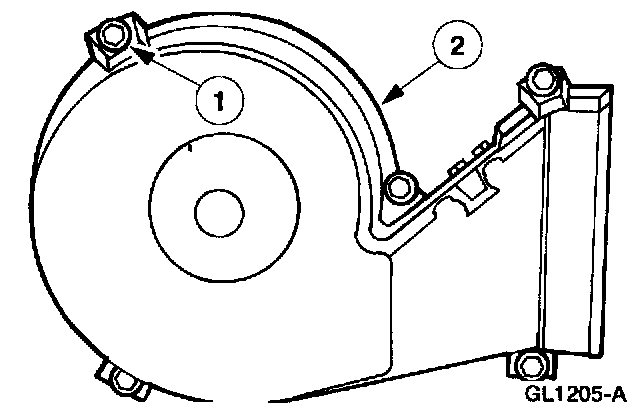

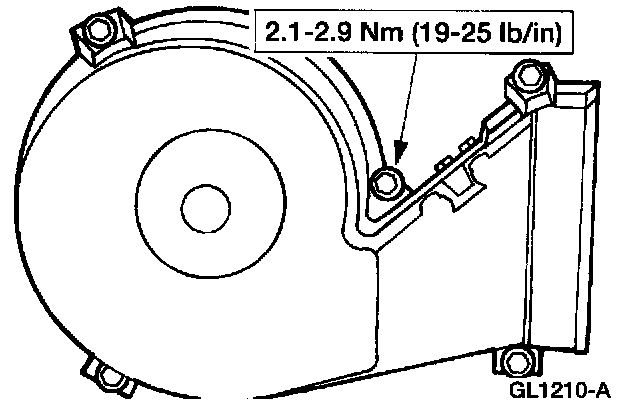

8. Remove the blower motor upper duct cover.
1 Remove the three bolts.
2 Remove the duct cover.

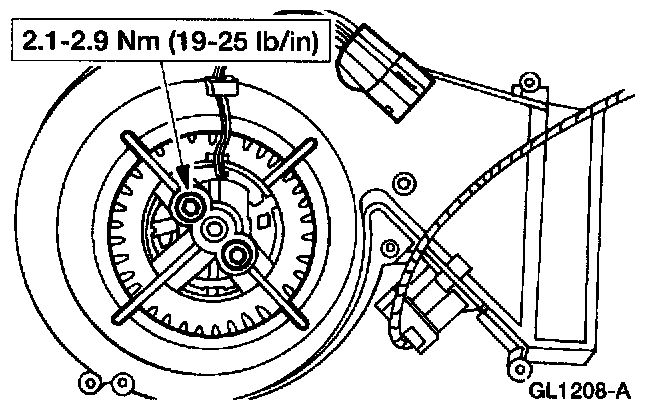

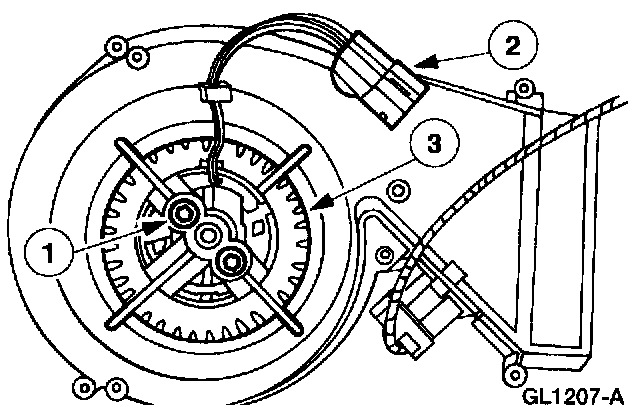

9. Remove the blower motor.
1 Remove the two bolts.
2 Disconnect the connector.
3 Remove the blower motor.

INSTALLATION





































1. To install, reverse the removal procedure.
